IRT2 Prepcure Infra-Red Unit (800625)

IRT PrepCure 2 – Handheld Infrared Curing Lamp (800625)

The IRT PrepCure 2 is a compact, handheld 2kW infrared curing lamp designed for fast spot curing in bodyshop and paint shop environments. Because of its lightweight, portable design, technicians can quickly cure minor paint repairs, filler applications, and adhesive work without setting up a full-size curing unit. In addition, it works well for applying and removing vehicle stickers and decals.

Key Features

• 2kW infrared output from two lamps – delivers concentrated heat for fast, efficient curing of small to medium repair areas.
• Gold-coated freeform reflectors – distribute heat more evenly and across a larger area than conventional reflectors. As a result, you get consistent curing with reduced power consumption.
• Integrated on/off switch in the handle – therefore, the operator maintains full control with one hand while positioning the lamp with the other.
• Powerful built-in ventilation – actively cools the cassette during operation, so lamp life extends to approximately 20,000 hours.
• Cures all base and paint materials – works with primers, basecoats, clearcoats, fillers, and adhesives.
• Handheld or stand-mounted – use it freehand for quick jobs, or mount it on the optional stand with timer (accessory 800460) for hands-free curing up to 120 minutes.

How the IRT PrepCure 2 Works

Short-wave infrared curing works differently from conventional air drying. Instead of heating the surrounding air, the infrared energy penetrates directly into the paint or filler material. Consequently, the coating cures from the inside out, which reduces the risk of surface skinning and solvent trapping. Moreover, this method is significantly faster than ambient drying because the energy transfers directly to the repair area.

The gold-coated freeform reflectors play a key role in this process. First, they focus the infrared energy into an even, wide pattern across the repair zone. Then, the reflective coating ensures that minimal energy escapes to the sides. As a result, the PrepCure 2 delivers more usable heat to the panel while consuming less electricity than units with standard aluminium reflectors.

Versatile Applications

The PrepCure 2 suits a wide range of bodyshop tasks. For example, it is ideal for:

• Spot repairs and smart repairs – quickly cure small paint touch-ups, blended panels, and localised filler work.
• Primer and filler curing – accelerate drying between preparation stages, so technicians can sand and apply the next coat sooner.
• Sticker and decal work – the controlled heat softens adhesive for easy removal, and it also speeds up the bonding of new stickers.

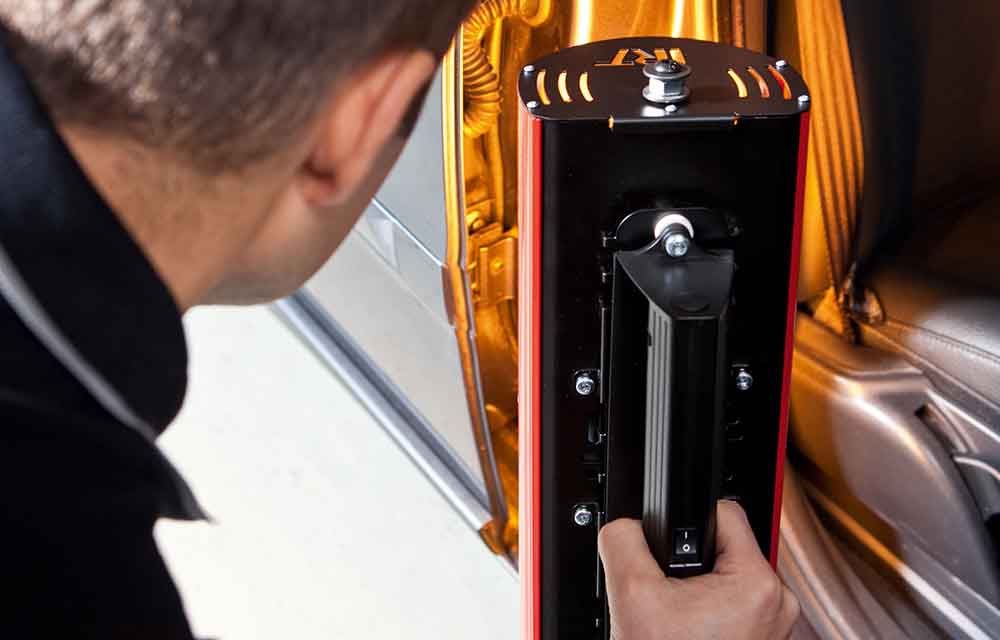

• Hard-to-reach areas – because the unit is handheld and compact, technicians can direct heat into tight spaces such as door shuts, jambs, and recessed panels.

Furthermore, when you mount the PrepCure 2 on the optional stand (800460), it becomes a hands-free curing station with a built-in timer. This setup is particularly useful for longer curing cycles up to 120 minutes, where the technician can walk away and work on other tasks.

Why Choose Infrared Over Conventional Drying?

Traditional air drying relies on ambient temperature and airflow, which means cure times vary with workshop conditions. In contrast, infrared curing delivers consistent results regardless of room temperature. Additionally, infrared uses less energy because it heats only the repair area rather than the entire booth or workspace. As a result, workshops that switch to infrared curing typically see faster throughput and lower energy bills.

Technical Specifications

• SKU: 800625
• Output power: 2 kW (two lamps)
• Voltage: 230V, 1PH, UK plug
• Frequency: 50–60 Hz
• Current: 8A
• Fuse: 10A
• Stand height (with optional stand): 1,450 mm
• Lamp life: Approx. 20,000 hours
• Reflectors: Gold-coated freeform
• Timer (with optional stand 800460): Up to 120 minutes
• Packing unit: 1 piece

Optional Accessories

• Stand with timer (800460) – converts the PrepCure 2 from a handheld unit into a freestanding curing station with adjustable timer up to 120 minutes.
