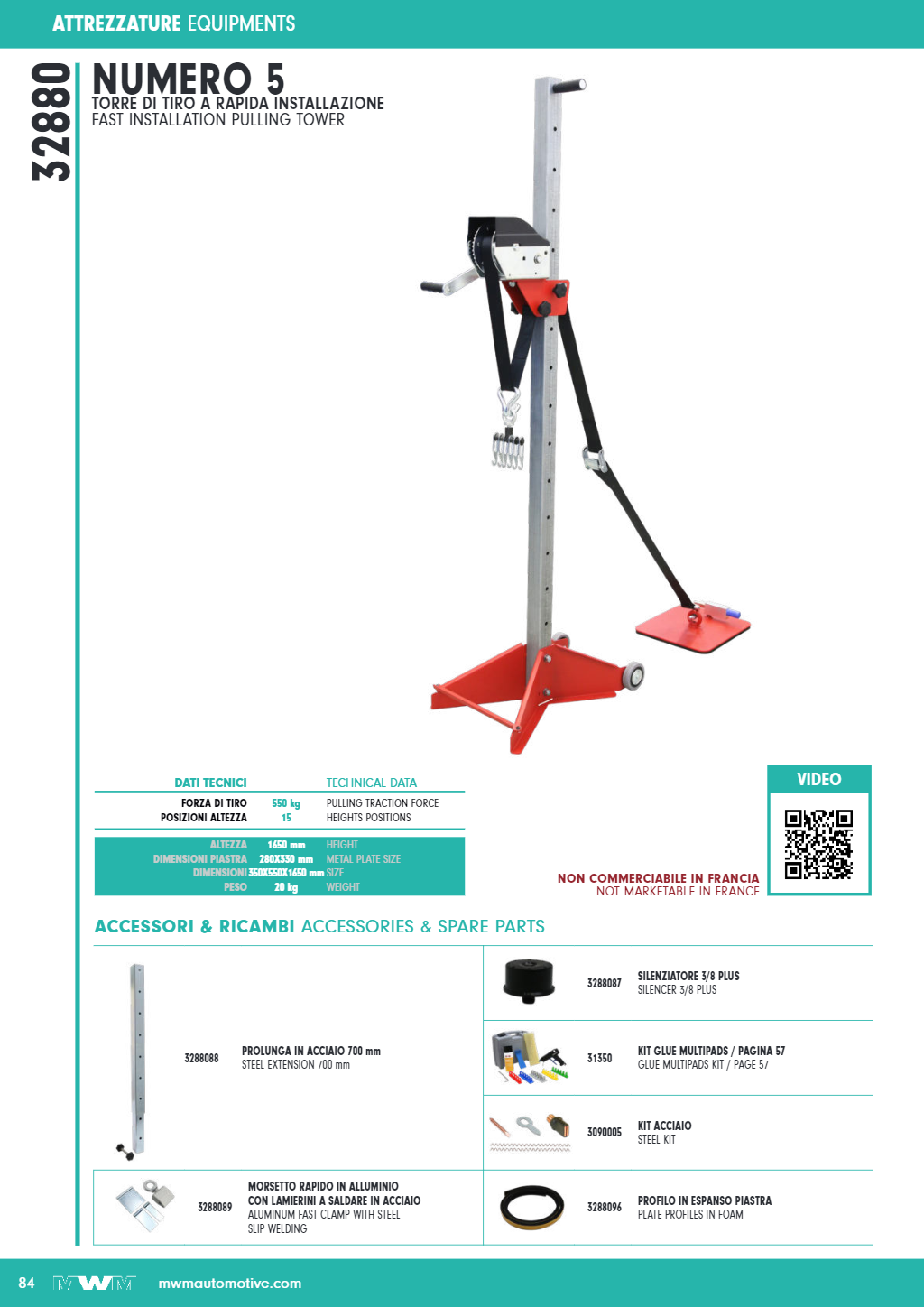

NUMERO 5 PULLING TOWER with vacuum plate (32880)

Item Number:

32880

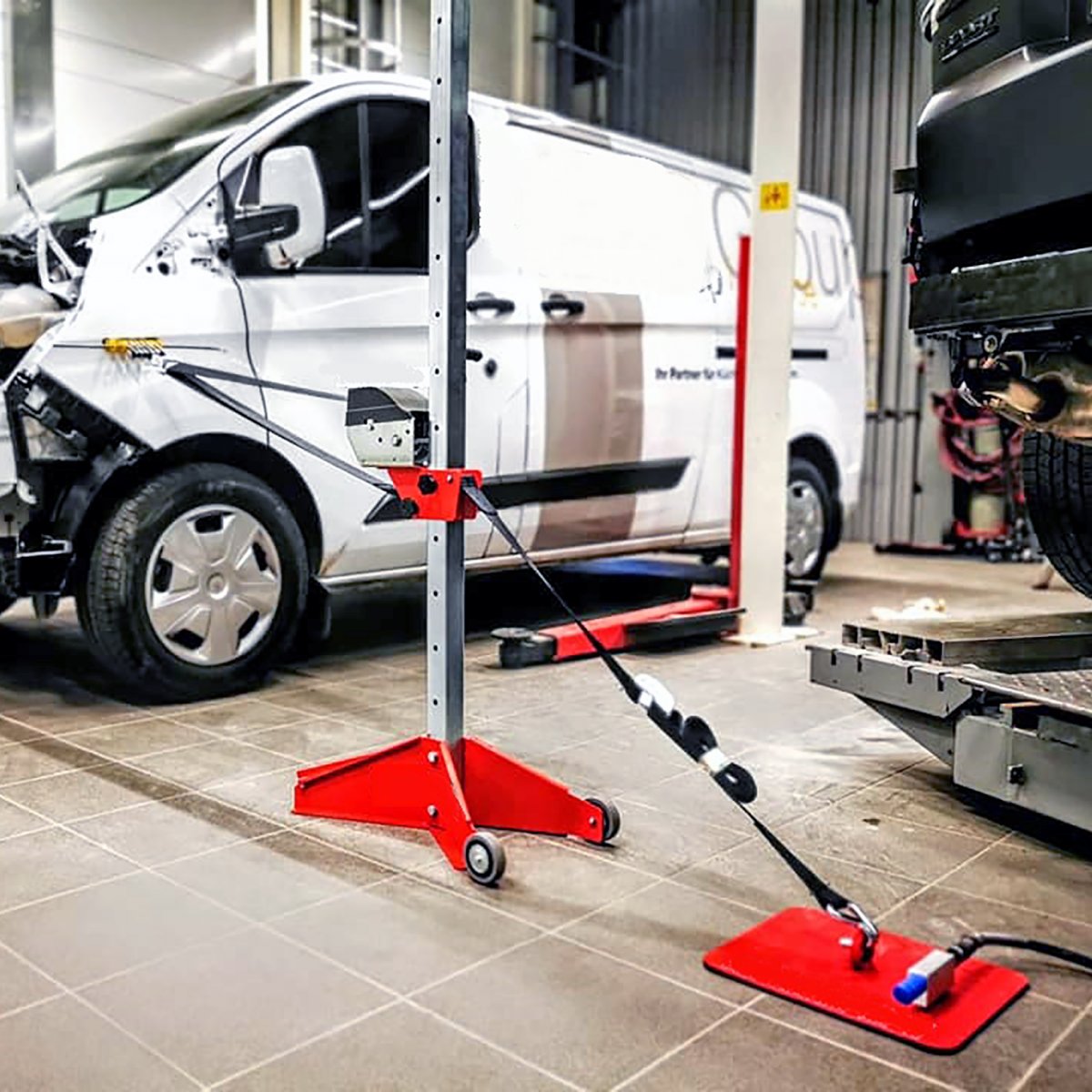

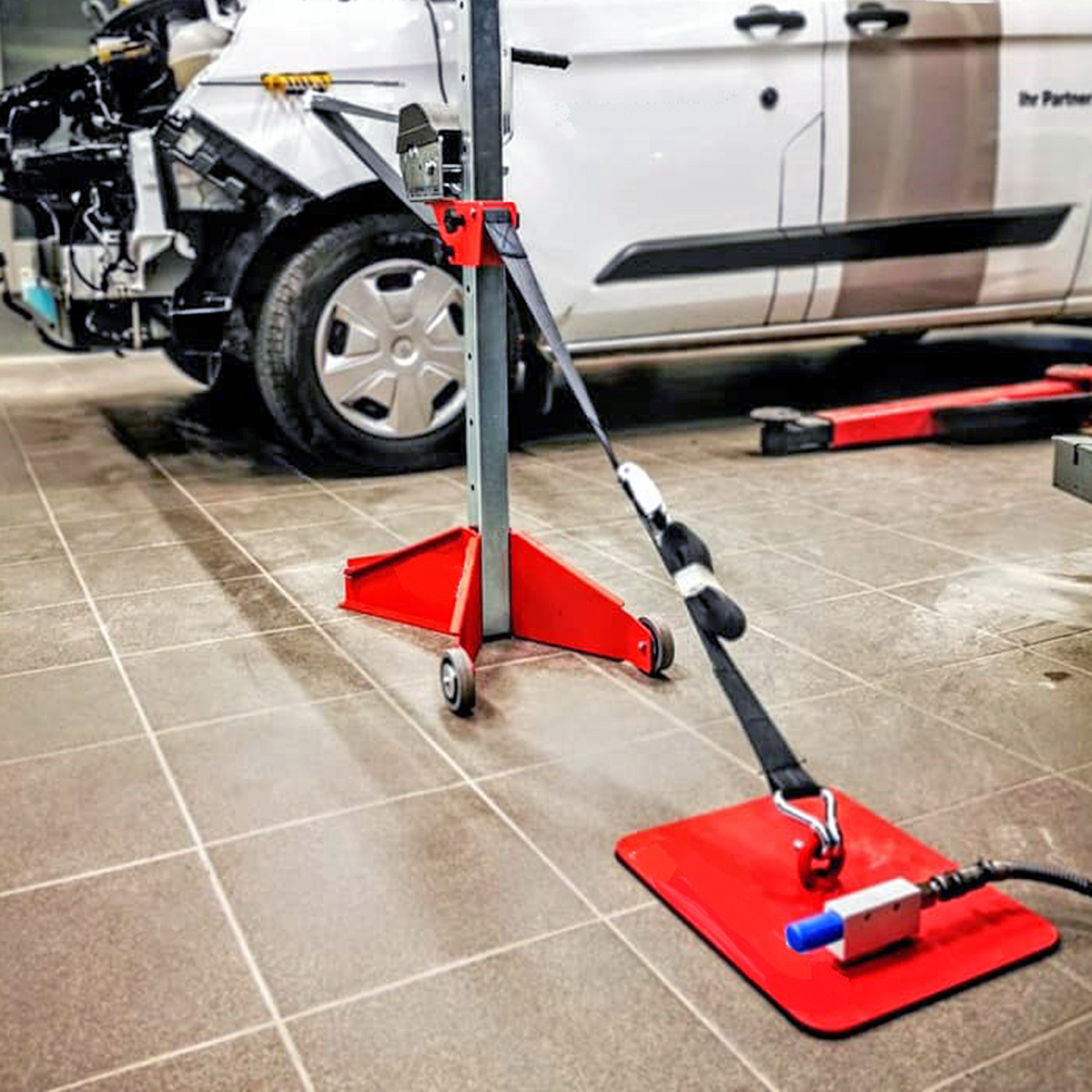

Designed to reach a pulling traction force up to 550 Kg it is counterbalanced by the pulling of a metal plate anchoring to the ground through pneumatic depression.

Dimensions and weight are very limited 35x55x165cm, 20 Kg, easily portable and it can be used on any material needed to be repaired as steel, aluminium, via spotwelding or hotmelt glue

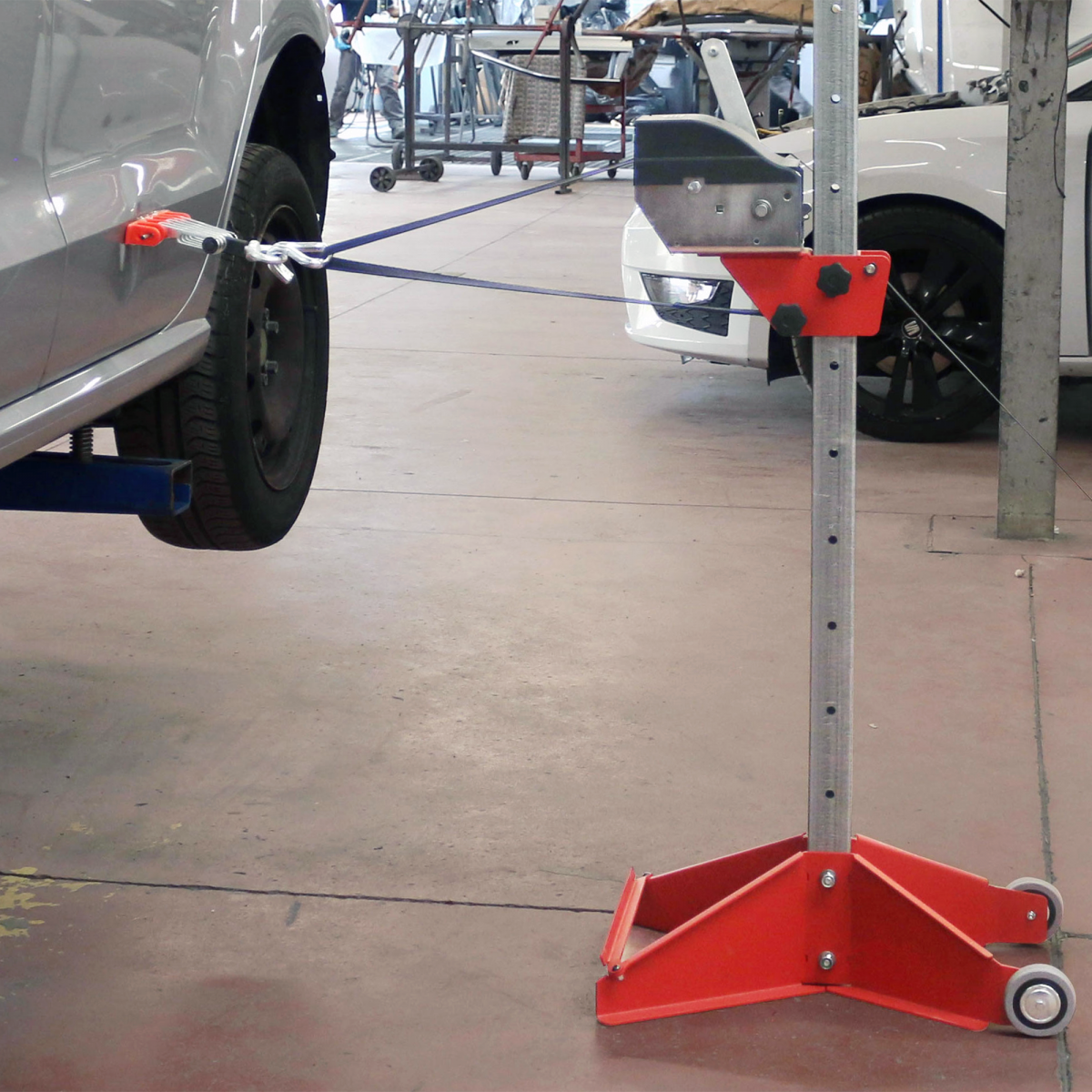

Pulling force wide adjustability at all different positions up to mt. 1,65 in height allows usage in high applications as roof pillars and in low as door sills.



£895.00

01327 300700

Call Us for Expert Advice

Price available on request

Lease purchase options available​

Designed to reach a pulling traction force up to 550 Kg it is counterbalanced by the pulling of a metal plate anchoring to the ground through pneumatic depression.

Dimensions and weight are very limited 35x55x165cm, 20 Kg, easily portable and it can be used on any material needed to be repaired as steel, aluminium, via spotwelding or hotmelt glue

Pulling force wide adjustability at all different positions up to mt. 1,65 in height allows usage in high applications as roof pillars and in low as door sills.

Pulling force can be gradually applied through a belt driven manual hoist so allowing a very progressive and precise repair suitable for any long term successful timelife.

Supplied together with the basic usage components (hook gripping head, eyebolts and hooks) to be eventually completed with the MWM product range suitable to fit the necessary repair conditions (multipads, washers, bolts).

Packing unit: 1 pc.
Net weight: 20,000 kg

1 x pulling tower cpl.
1 x vacuum plate
1 x ratchet with pull strap
1 x pull hook
