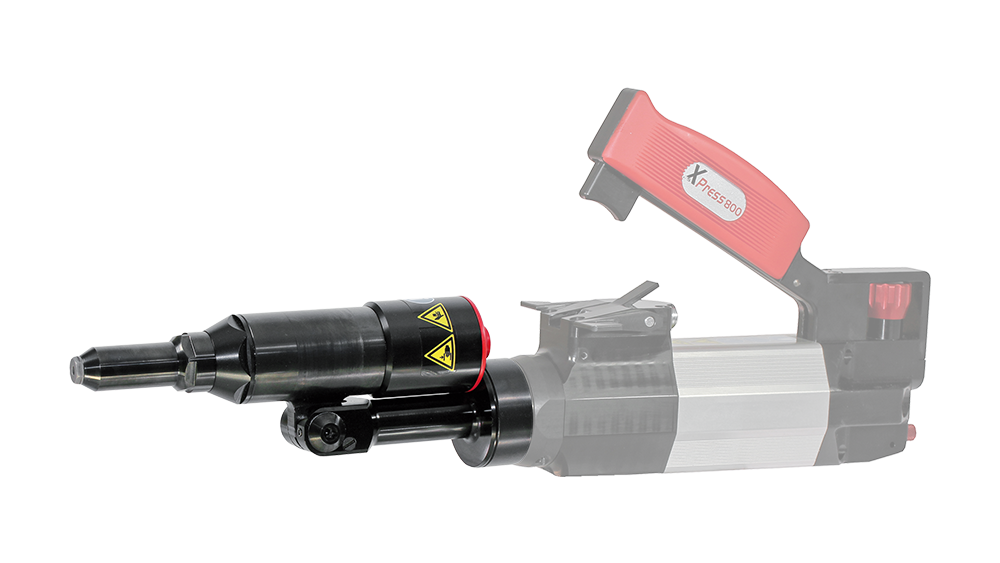

The blind rivet adapter BR 50 is distinguished by its excellent accessibility for demanding riveting tasks.

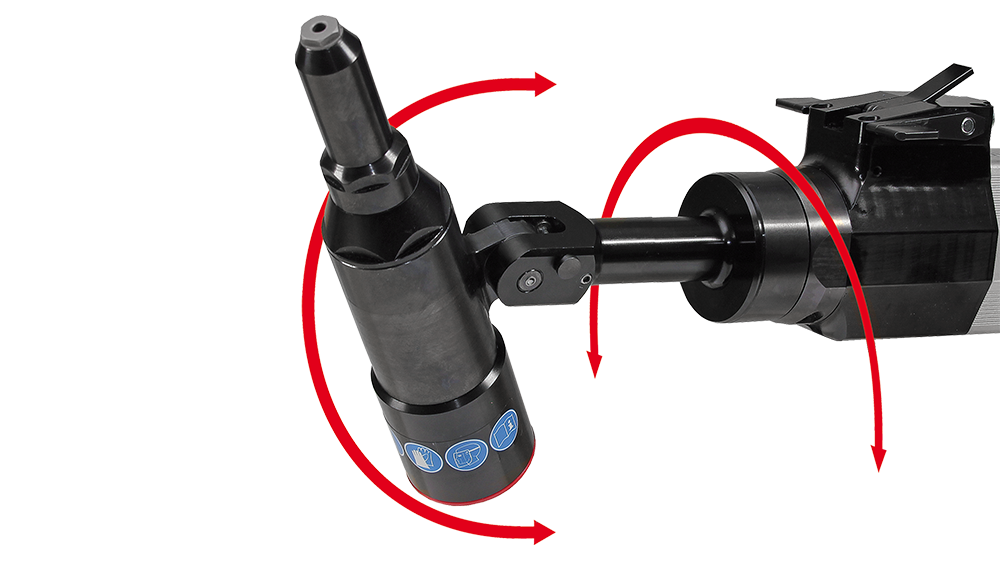

It boasts an impressive tensile force of 50 kN. Furthermore, the adapter is freely rotatable and pivotable, suitable for rivets with a shaft diameter ranging from 2.0 to 5.0 mm.
| Coating: | burnished |
|---|---|
| Content: | 1 stück, 1 piece |
| Force: | 50 kN |
| Length × width × height: | 252 x 56 x 90 mm |
| Material: | Plastic, Steel, kunststoff |
| Stroke: | 25 mm |
| Weight: | 1,490 kg |
£835.99
1 in stock (can be backordered)
• Pulling force 50kN free pivoting and rotating – for rivets with shaft Ø 2-5,0 mm. • Extremely good accessability for challenging riveting jobs – This is a real problem solver!
• Fast attachment and release
TESLA Approval – Kit N° 4 (ID 1457761-00-A)
Packing unit: 1 pc.
Specifics: OEM Approval
Gross weight: 1.54
Net weight: 0.11, 1.49, 1.54
Material: Steel anodised
Pivot range: 120°
Self-locking range: 30°
Traction / Press force: 50 kN
Length x Width x Height: 252x56x90 mm
Stroke: 25 mm
1 x BR50 blind rivet adapter inkl. mouthpiece 5.1B (mounted)
4 x each mouthpiece 3,2A/3,6A/4,0A/4,5A
2 x Mouthpieces (4,5B/4,8B)
