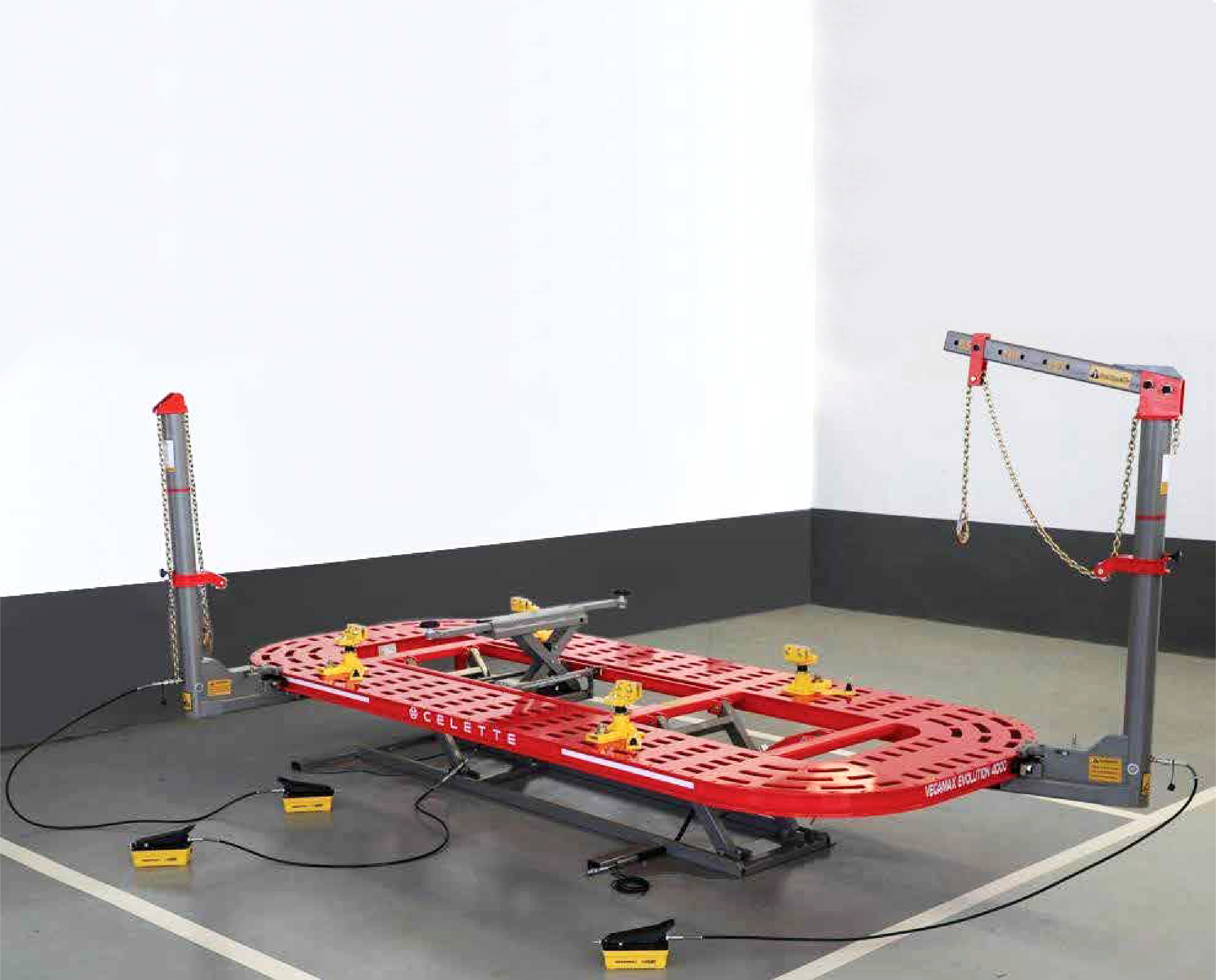

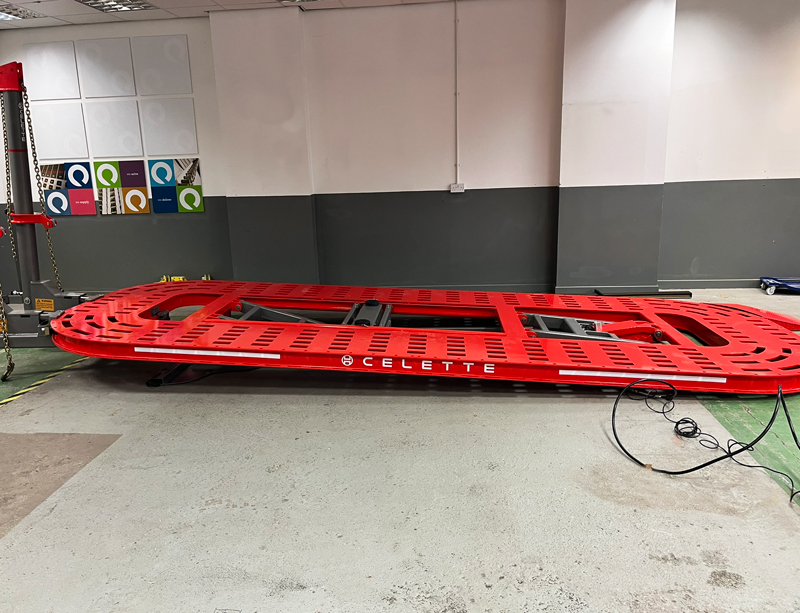

VEGAMAX is a straightening rack equipped with 2 pulling towers with hydropneumatic pumps, rams and chains, with the capability of 360 degree positioning around the rack.

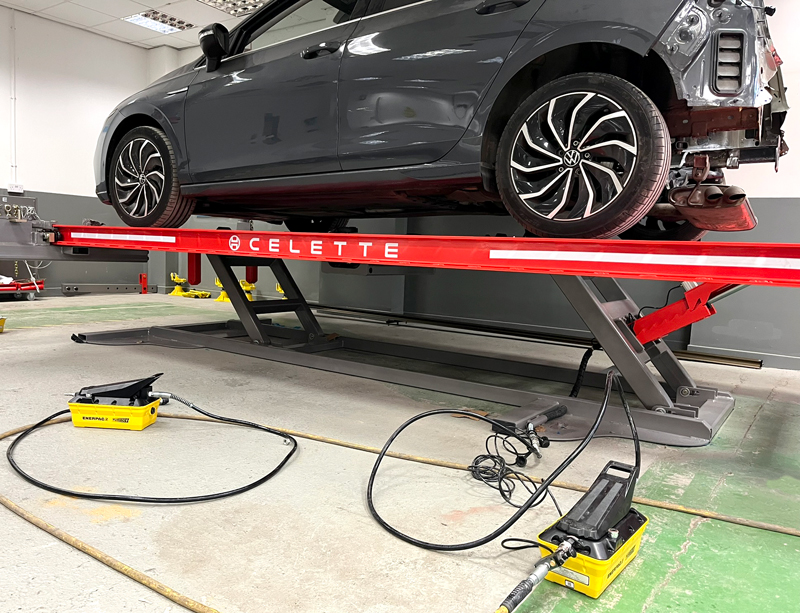

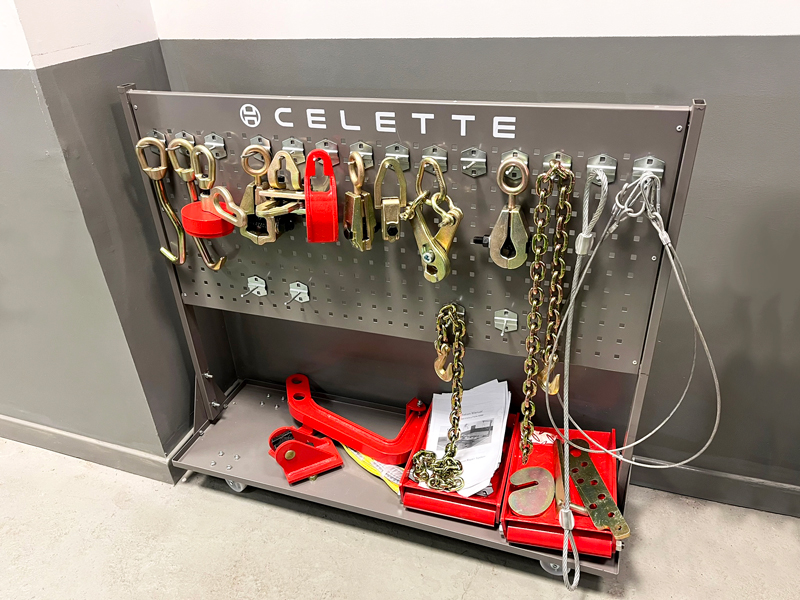

The system is llifted hydraulically and is delivered with 4 anchoring blocks and other accessories dedicated for frame and unibody vehicles.
Exclusively designed for ladder frane type vehicles, 5.6m long frame rack is capable to accomodate all the light commercial vehicles & pick-ups.
Vegamax is available in:

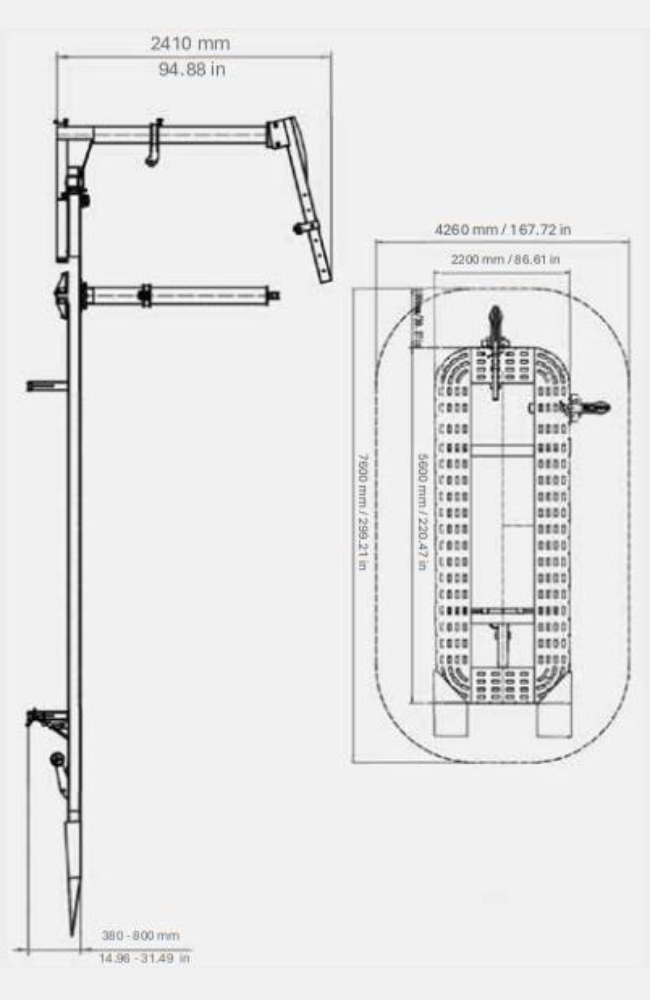

5.6 m Length
Frame Length – 5600mm
Frame Width – 2200mm
Frame Height – 0-380-800mm
Max Push Power for Pulling Tower 100Kn
Rated Voltage 0.5-0.8MPa
Working Range of Pulling Tower – 360 degrees
Max Load Bearing – 4000Kg
1 Supplied
Optional Accessories Available.
