Infrared 4-2 TCR PC Auto Heat Lamp – 801500

IRT 4-2 TCR — The Intelligent Infrared Curing Station

The IRT 4-2 TCR infrared lamp takes paint curing to the next level with built-in thermal camera technology. As a result, this intelligent curing station automatically optimises and documents every job. It removes guesswork entirely, delivering precise, repeatable results on every panel.

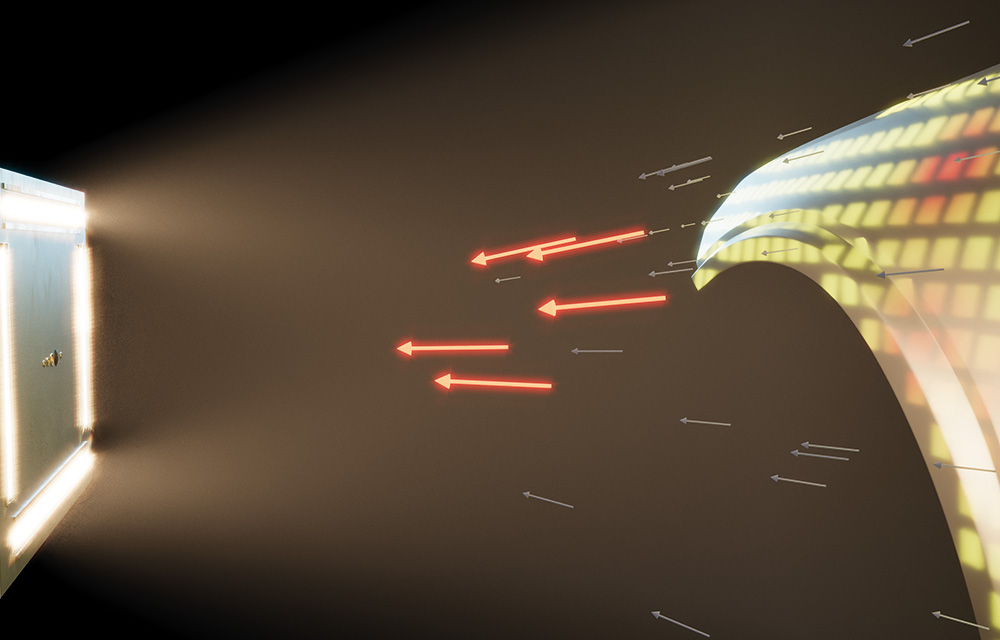

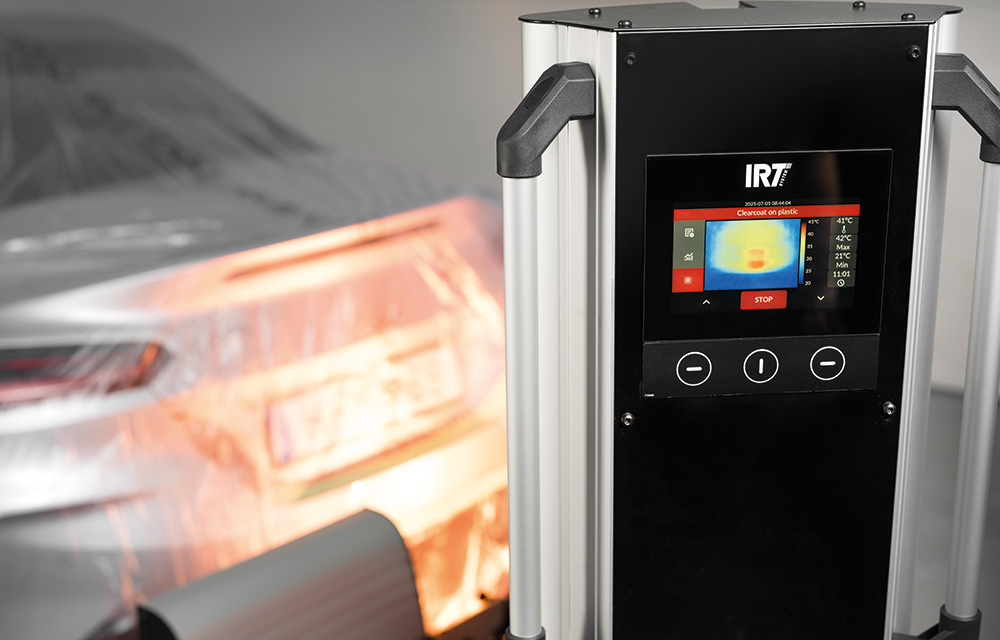

How the Thermal Camera Works

The built-in thermal camera acts as a smart eye for the curing unit. It uses a 32×24 array — that’s 768 individual pyrometers — to map surface temperatures across a 170 x 90cm area. Consequently, each measuring point covers approximately 5 x 4cm at a 60cm distance, giving you detailed, real-time temperature data across the entire repair.

Why Choose the IRT 4-2 TCR Infrared Lamp?

Temperature data feeds continuously into the control system. Therefore, the unit automatically adjusts IR lamp intensity and exposure time to maintain the exact curing profile required. In addition, it continuously identifies and measures the 5 hottest target points, delivering an average temperature value for precise control.

Intelligent Results, Every Time

This intelligent IR heat lamp delivers four key benefits that set it apart from standard dryers:

• Accurate, real-time temperature monitoring across the full panel
• Consistent curing quality with automatic intensity adjustment
• Overheating prevention to protect paint and substrates
• Energy use optimisation to reduce running costs

Built-In Radar Distance Sensor

The IRT 4-2 TCR infrared lamp also features an intelligent radar distance sensor. Because of this, it measures the exact distance to the panel surface and adjusts output accordingly. Furthermore, this ensures optimal energy transfer regardless of panel position or angle.

Quality Assurance and Traceability

Temperature profiles can be logged for quality assurance, traceability, and process optimisation. As a result, bodyshops can document every curing cycle for manufacturer compliance and customer records. This is especially valuable for workshops handling insurance and warranty repairs.

Technical Specifications

• Item Number: 801500
• Thermal Camera: 32 x 24 array (768 pyrometers)
• Measuring Point: approx. 5 x 4cm at 60cm distance
• Surface Mapping Area: 170 x 90cm
• Distance Sensor: Intelligent radar
• Control: Automatic IR intensity and exposure adjustment
• Logging: Temperature profile recording

Ideal For

• High-volume bodyshops requiring consistent quality
• Manufacturer-approved collision repair centres
• Workshops needing documented curing traceability
• Any operation seeking energy-efficient, automated curing

Above all, this thermal camera curing dryer represents the most advanced infrared curing technology available to UK bodyshops today.
