Item Number:
Pressure reducer for all common applications with technical gases. Manufactured according to the highest safety standards of ISO 2503. The robust rubber protective cap is rear-sealed for optimal all-round protection against damage and contamination. Long lifespan resulting in cost savings for servicing, spare parts, and repairs. Latest Encapsulated Technology for precise and stable control behavior, ensuring a process-secure, simple, and user-friendly operation.
Additional product information
• Working pressure gauge double scale Argon 5, 32 l/min – red line at 24 l/min – CO2 5, 30 l/min – red line at 23 l/min
• Content manometer 0 – 315 / 200 bar – red line at 200 bar
• up to gas purity 4.6
| Flow rate: | 5 – 24 l/min |
|---|---|
| Inlet: | W21,8×1/14″ |
| Max. cylinder pressure: | 200 bar |
| Outlet: | G 1/4″ AG |
| Power: | max. 1,5 m³/h |
| Weight: | 1700 g |
£96.99
1 in stock (can be backordered)

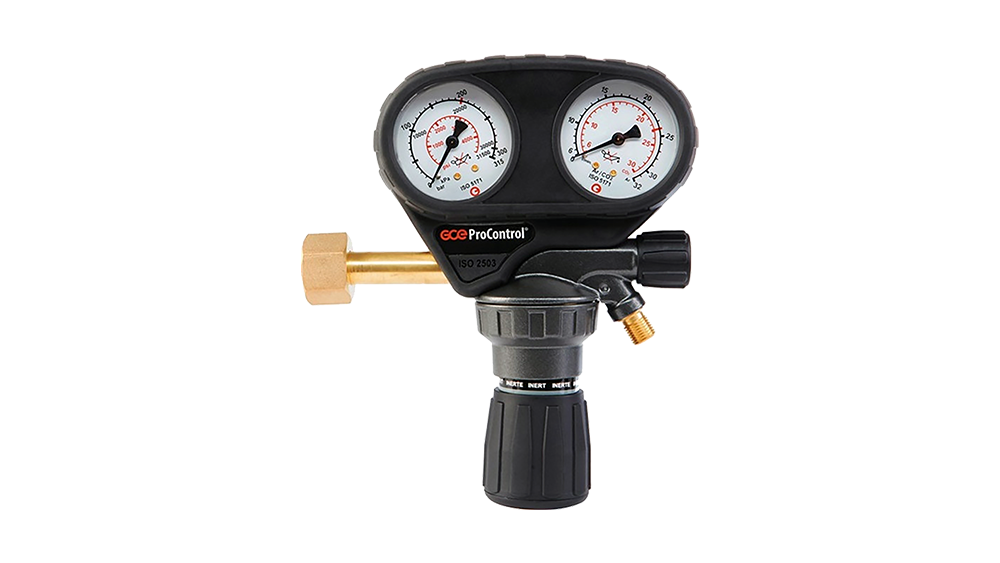

Product information “Pressure Regulator ProControl”
• 1-stage 200 bar cylinder pressure reducer made of brass
• suitable for argon, CO2, helium, inert gases, compressed noble gases and their mixtures
• cylinder connection W 21,8 x 1/14″ IT ÜM – DIN 477-1 Nr.6 (standard argon / CO2 cylinder connection in Germany)
• Working capacity: approx. 5 – 24 l/min adjustable
• Working pressure gauge double scale Argon 5, 32 l/min, red line at 24 l/min – CO2 5
• 30 l/min – red line at 23 l/mi• outlet G 1/4″ RH male
• shut-off valve in the outlet
• with 2 large manometers – on the left tank pressure in bar and on the right delivery in l/min
• Content manometer 0 – 315 / 200 bar – red line at 200 bar
• Robust rubber protection cap for both pressure gauges
• Use up to gas purity 4.5 (99.995%)
• Capacity max. 1,5 m³/h
• Material body: Forged brass
• Material cover: Zn/Al die-cast alloy
• Material nozzles, nuts, connections: Brass
• Material pressure reducer diaphragm: EPDM
• Material pressure reducer seals: Polyamide PA
• Pressure reducer approved for food gases according to ISO 22000
• Temperature resistance: from -20°C to +60°C
• with blow-off valve / safety relief valve on the back pressure side (not cylinder pressure side!)• Blow-off pressure: approx. 130% of max. set pressure
• Weight: approx. 1,7 kg
Packing unit: 1 pc.
Gross weight: 1.68, 1,470 kg
Net weight: 1,190 kg, 1.44, 1,7 kg
Output: 1,5 m³/h
