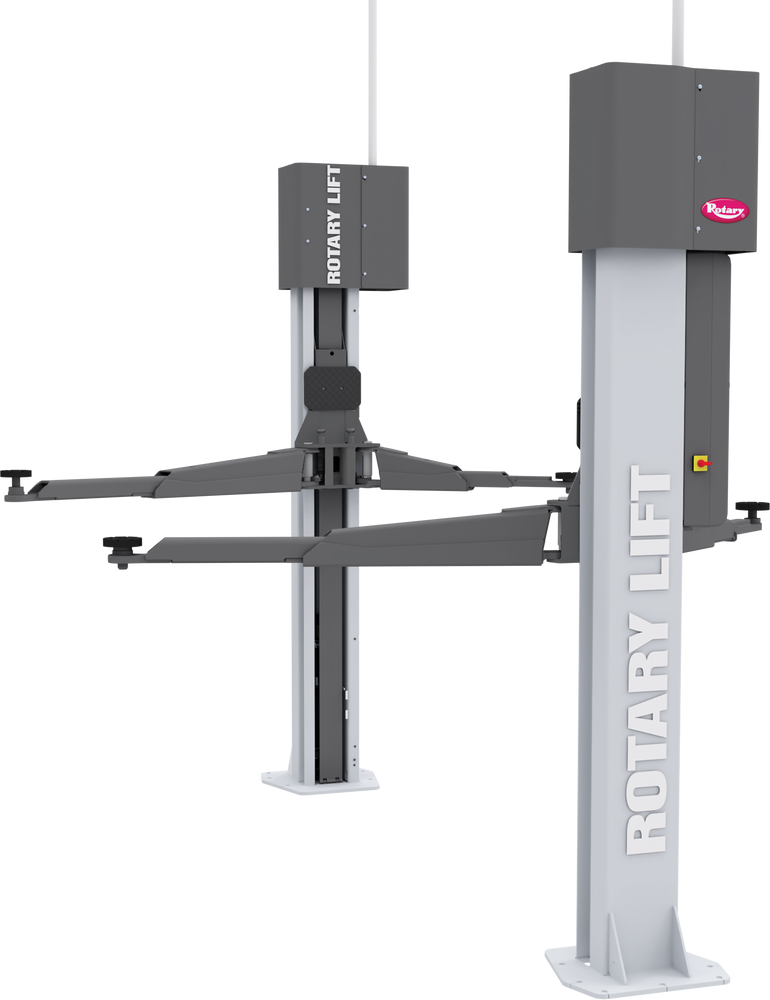

Rotary 2 Post Lift 4.2t – SPMA42-X

Revised technology shaping a mode design. The 2-post lifts of the Tomorrow Series of Rotary raise your workshop immediately into the future. Tested for 20000 cycles and designed for TEq-Link online inteet connection, your workshop is prepared for all innovations that are yet to come.

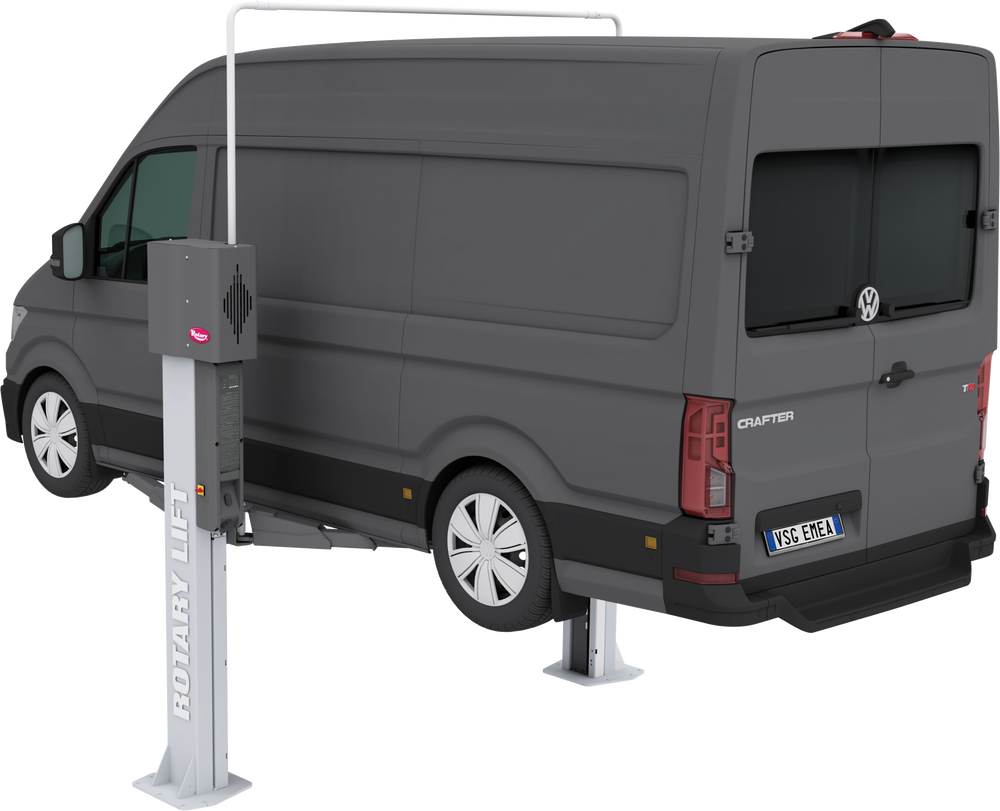

The arms geometry is designed to lift cars, commercial vehicles and long-wheelbase vans.

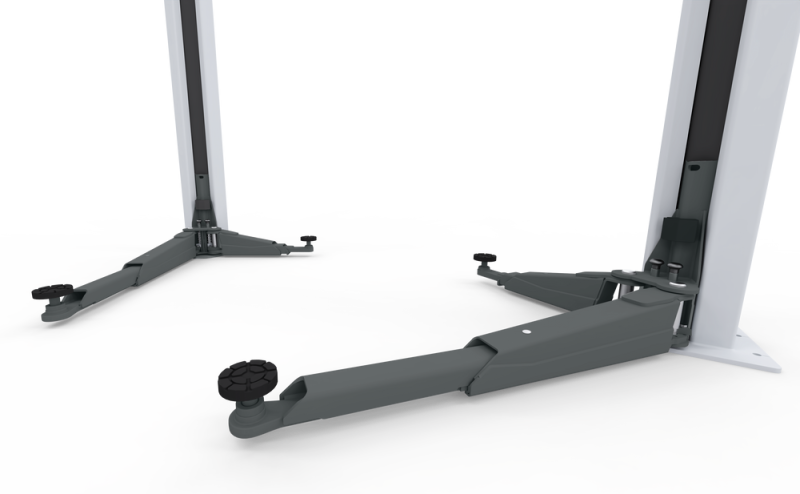

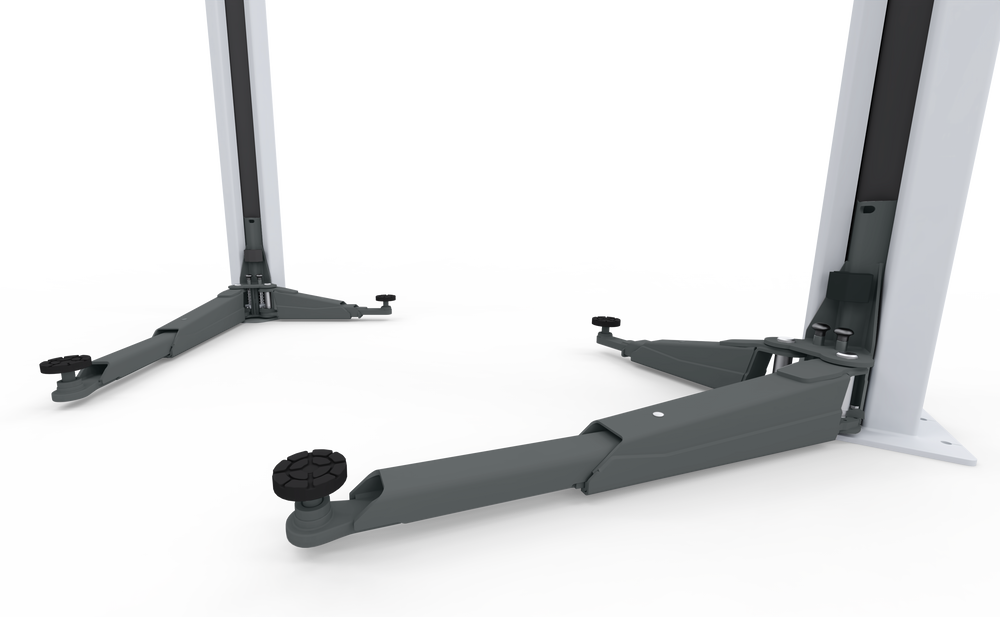

Asymmetrical arm configuration (two long and two short arms).
Capacity 4.2 t.
Automatic arm locking system.
Automatic and permanent nut lubrication system to guarantee efficient movement during lifting and descent.
Equipped with an acoustic anti toe trap system – Free from mechanical foot guards.
Controlled up/down by pushing button positioned at an ergonomic height.
Minimum height of the pads suitable for asymmetric loading, of armoured cars as well.
Smart and flexible installation: Up to 20% improvement in installation time. The electronic synchronization avoids the installation and adjustment of the realignment cable. The lifts can be installed in a flexible way thanks to three width adjustable positions.
More space for movement around the vehicle.
The lift is designed to maximise its layout while ensuring minimum space requirements.
TEq-Link connected workshop – All models of this series are equipped with up/down buttons and TEq-Link connectivity.

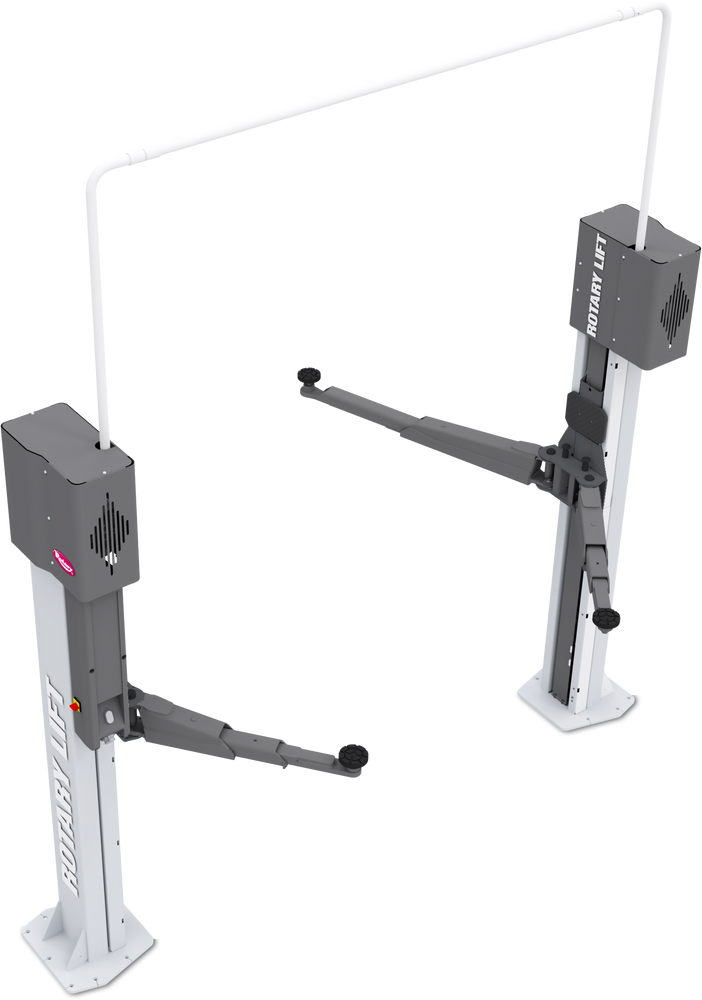

Possibility to install without gantry since cables can be placed inground
Steel high resistance rolled screw to provide long life
High efficiency motors
Premium quality of components:
Aluminium pulley with cooling function
Long lasting bearings
50% longer, bronze load nut
Motors with reinforced and cooling casing
Solid automatic arm locking
