Rotary 2 Post Lift 3.5t – SPOA3TS-5-EH1

Item Number:

SPOA3TS-5-EH1

The electro-hydraulic 2-post lifts of the SPO-series convince by an outstanding pick-up area. The control system is available in a manual and an electric version, as well as different column heights.

  • SPOA3TS-5 offers a flexible pick-up range from SMART to large vans (e.g. VW T6 long) due to its asymmetrical design
  • SPO series – the best-selling lift in the world
  • Maximum security with the Rotary 3PSS concept
  • Pick-up range up to VW T6 long

01327 300700

Call Us for Expert Advice

Price available on request

Lease purchase options available​

3PSS Concept (3 Phase Security System) includes:
Mechanical safety latches integrated on both sides with automatic actuation
Load-free synchronization pulleys secure the load during the lifting and lowering process
Hydraulic system secured by non-return valve including maintenance-free high-pressure cylinder in both posts

The asymmetrical posts and support arm design allows for optimum door clearance.
The maximum drive-through width with minimum external dimensions and the construction without a base frame ensure problem-free access to the lifting platform.

The rotary plates are pluggable and can be extended or replaced reliably and cost-effectively with attachments.
For a plus in ergonomics and economy, a 2nd control panel (for SPOA 3 TS) may be selected. In this case, one control unit is equipped with a 220 V connection (fused with 16 ampere for electric hand tools) and the second with compressed air preparation.

The upper safety switch-off effectively protects vehicles with a higher overall height from damage during lifting.
The electro-hydraulic design with only one unit ensures energy-saving operation with fast lifting and lowering times.
Flanged to the upper part of the lifting column, the unit is protected from external influences and allows more freedom of movement.
Rotary Hydraulic stands for maximum service-friendliness with minimum operating costs

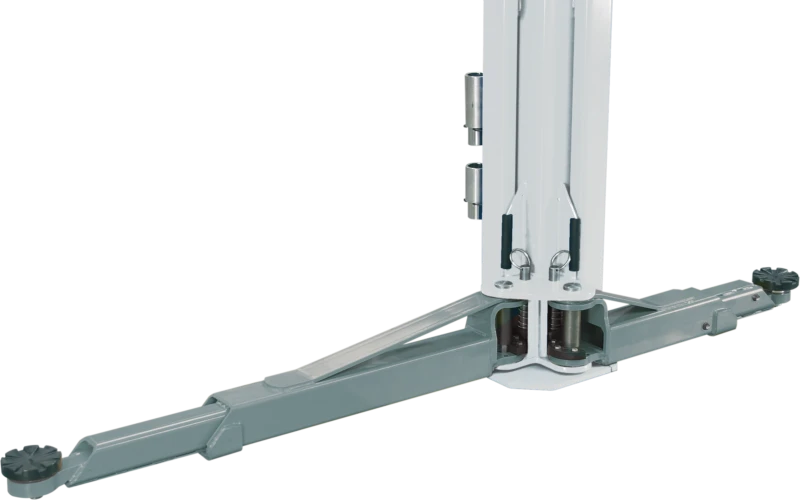

The support arms are automatically locked when lifting. Once the platform is completely lowered, this locking device is released automatically. The particularly fine grid and a manual unlocking function extend the ease of operation.
Related products

3.5 t, electrohydraulic, push-button operation, 3-sectional support arms in front, asymmetrical, total height 3865 mm

CATEGORY: 2-Post Lifts
TAG: Passenger cars
MPN: SPOA3TS-5-EH1
GTIN (EAN): 4057612494075
