Item Number:

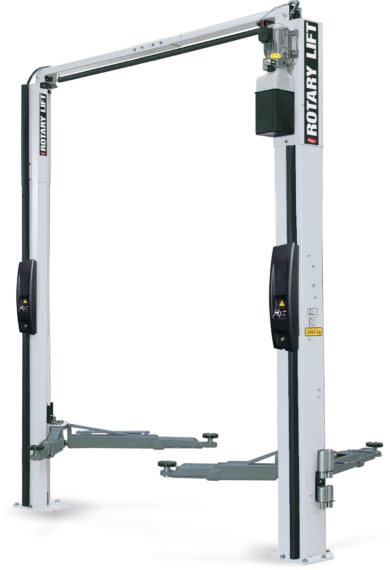

(SPOA3TM-5-EH1) This best selling Rotary 3.5 tonne 2 Post Asymmetric Lift – is an electro-hydraulic, manual operation lift, with mechanical safety latches on both sides with automatic actuation and a hydraulic system secured by a non-return valve. The control system is also available as an electric version and also different column heights.
(SPOA3TM-5-EH1) This best selling Rotary 3.5 tonne 2 Post Asymmetric Lift – is an electro-hydraulic, manual operation lift, with mechanical safety latches on both sides with automatic actuation and a hydraulic system secured by a non-return valve. The control system is also available as an electric version and also different column heights.
Features and Benefits:
• SPOA3TM-5 offers a flexible pick-up range from SMART to large vans (e.g. VW T6 long) due to its asymmetric design
• Mechanical safety latches are integrated on both sides with automatic actuation
• Load-free synchronization pulleys secure the load during the lifting and lowering process
• Hydraulic system secured by non-return valve including maintenance-free high-pressure cylinder in both posts
• The asymmetric posts and support arm design allows for optimum door clearance.
• The maximum drive-through width with minimum external dimensions and the construction without a base frame ensure problem-free access to the lifting platform.
• The rotary plates are pluggable and can be extended or replaced reliably and cost-effectively with attachments.

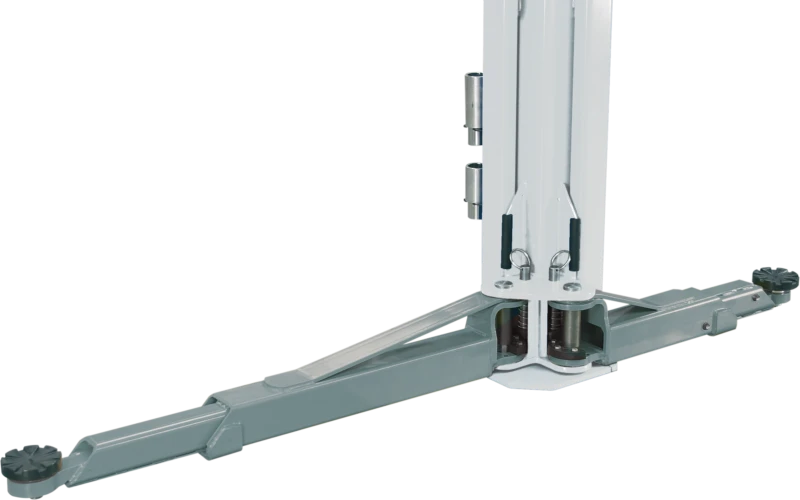

• The support arms are automatically locked when lifting. Once the platform is completely lowered, this locking device is released automatically.
Electro-Hydraulic, Asymmetric Required ceiling height – 3925 mm
Height – 3865 mm
Rotary plate height max. 154 mm
Rotary plate height min. 94 mm
Lifting height max. – 1957 mm
Lifting time 30 s
Drive-through width – 2336 mm
Switch off level – 3760 mm
Motor Power – 4 kW
Capacity – 3500 kg
Clear span between posts – 2560 mm
Support bracket length on the front min. – 550mm
Support bracket length on the front max. – 1106mm
Support bracket length on the rear min. – 876mm
Support bracket length on the rear max. – 1472mm
Power supply – 400 V
Packing unit: 1 pc
