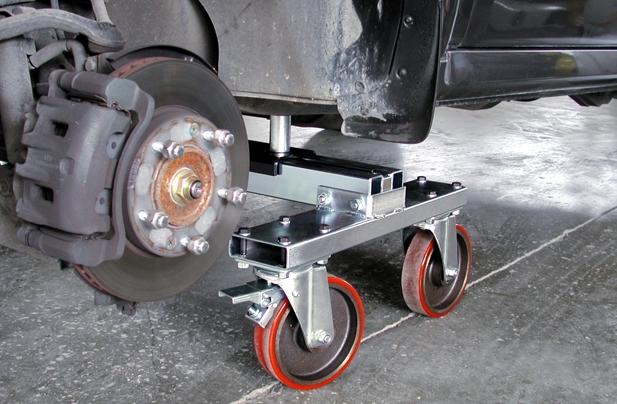

Heavy duty car body handling trolley suitable for the quick and safe transportation of damaged SUV vehicles, pick ups, vanes and similar around body shops and mechanical shops.
Complete with 2 rubber pads and 3 support extensions, fitted with wheel brake.
| Technical specifications | 116 | |
|---|---|---|
| Row Material | Steel zink plated and pulver painted | |
| Max support distance | mm | 1500 |
| Min distance between brackets | mm | 1390 |
| Wheelbase between castors | mm | 400 |
| Min. height | mm | 400 |
| Wheel with brake | 1 | |
| Diameter wheels | mm | 200 |
| Capacity | Max distance between supports 1390 mm capacity kg. 3100
Max distance between supports 1500 mm capacity kg. 2400 |
|
| Weight | Kg | 68 |
£1,137.23
1 in stock
Standard equipment
1 trolley with swivel wheels one of which with brake
2 rubber pads
2 pin supports L= 90mm
2 extensions threaded L=95 mm L=125mm
Technical specifications 116
Raw Material
Steel zinc plated and pulver painted
Max support distance
mm 1500
Min distance between brackets
mm 1390
Wheelbase between castors
mm 400
Min. height
mm 400
Wheel with brake
1
Diameter wheels mm 200
Capacity
Max distance between supports 1390 mm capacity kg. 3100
Max distance between supports 1500 mm capacity kg. 2400
Weight Kg 68
1 Supplied
