Item Number:
With the Telescopic Tram Gauge it is easy to carry out the following operations with the maximum precision:
The Telescopic Tram Gauge remains perfectly aligned even when fully opened.
Instant read out of measurements on the yellow tape measure through the window.
| Technical specifications | 400 | |
|---|---|---|
| Material | aluminium satin and polyamide tram gauge | |
| Minimum length closed | mm | 1050 |
| Maximum length open | mm | 2995 |
| Pin length | mm | 2 pins measuring 290 mm 1 pin measuring 190mm |
| Weight | kg | 1,6 |
£302.08
1 in stock
Telescopic tram gauge
With the Telescopic Tram Gauge it is easy to carry out the following operations with the maximum precision:
squaring of vehicle

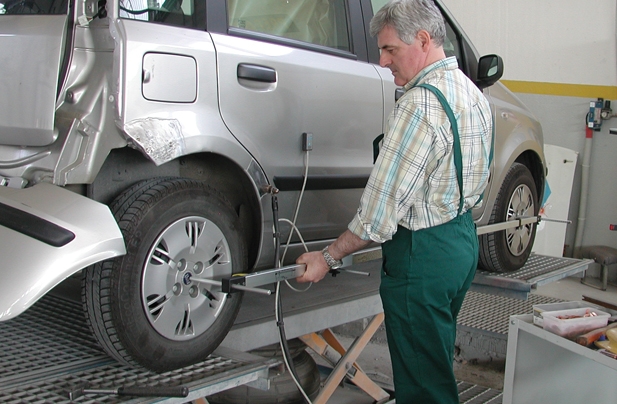

wheelbase checks
flaring of shaped parts

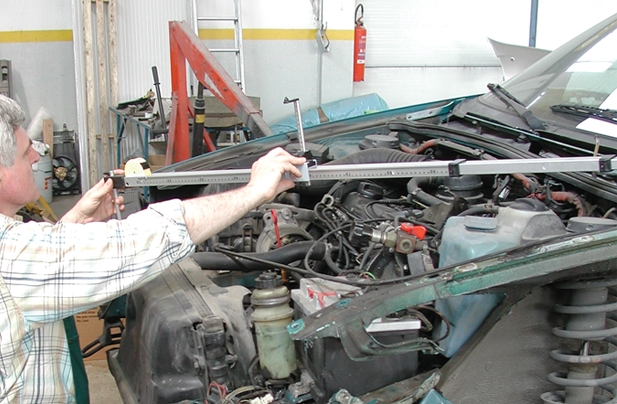

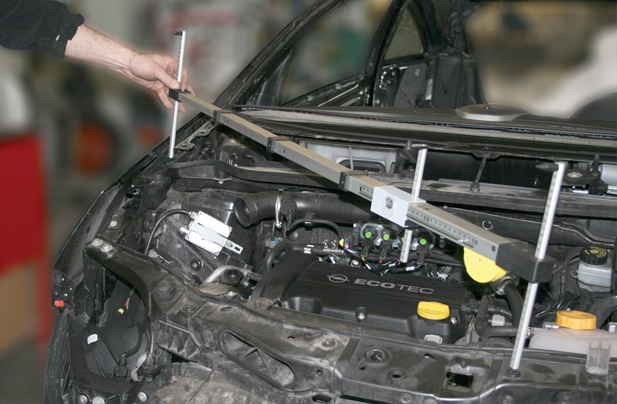

checking deformations in the door and engine compartments and window frames.
The Telescopic Tram Gauge remains perfectly aligned even when fully opened.

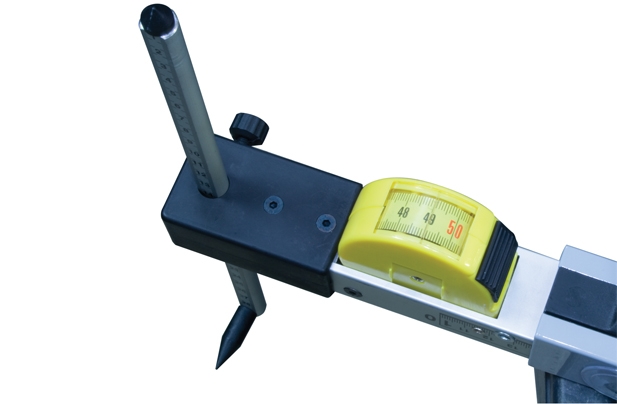

Instant read out of measurements on the yellow tape measure through the window.
Technical specifications 400
Material
aluminium satin and polyamide tram gauge
Minimum length closed
mm 1050
Maximum length open
mm 2995
Pin length
mm
2 pins measuring 290 mm 1 pin
measuring 190mm
Weight kg 1,6
1 Supplied
