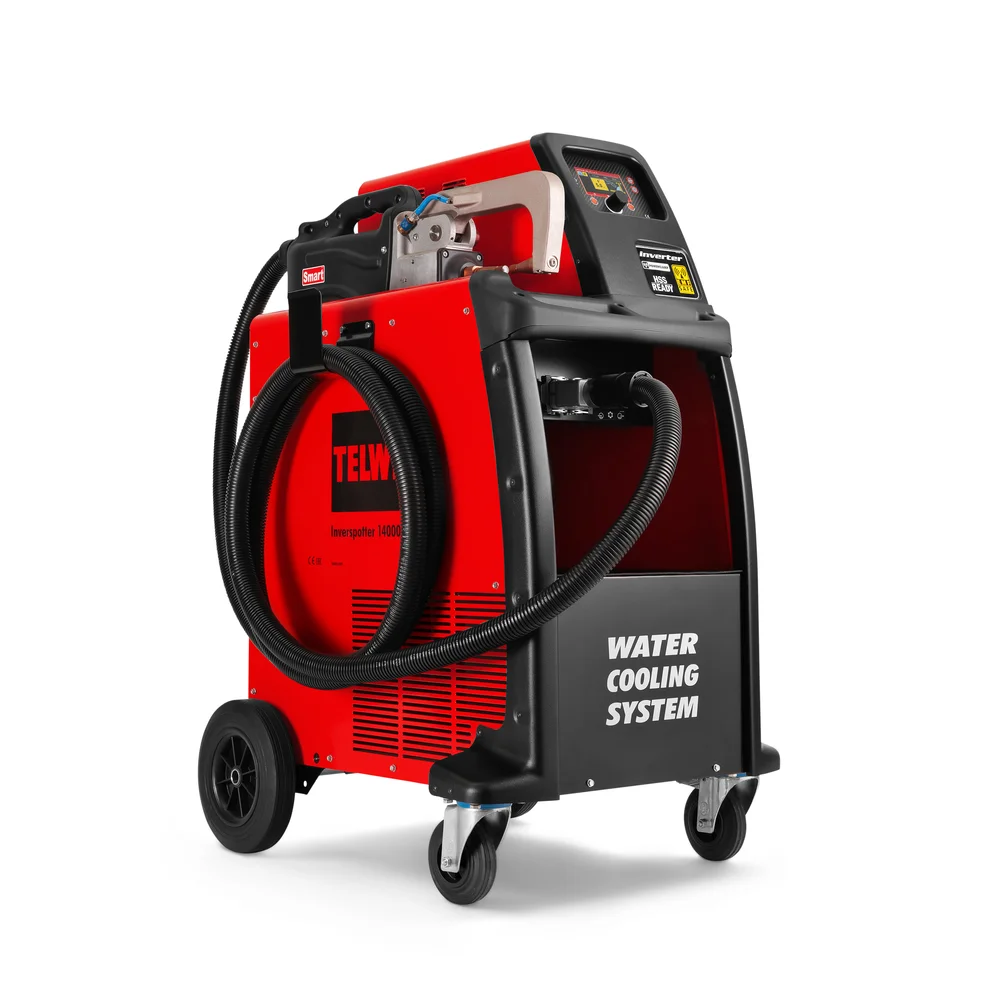

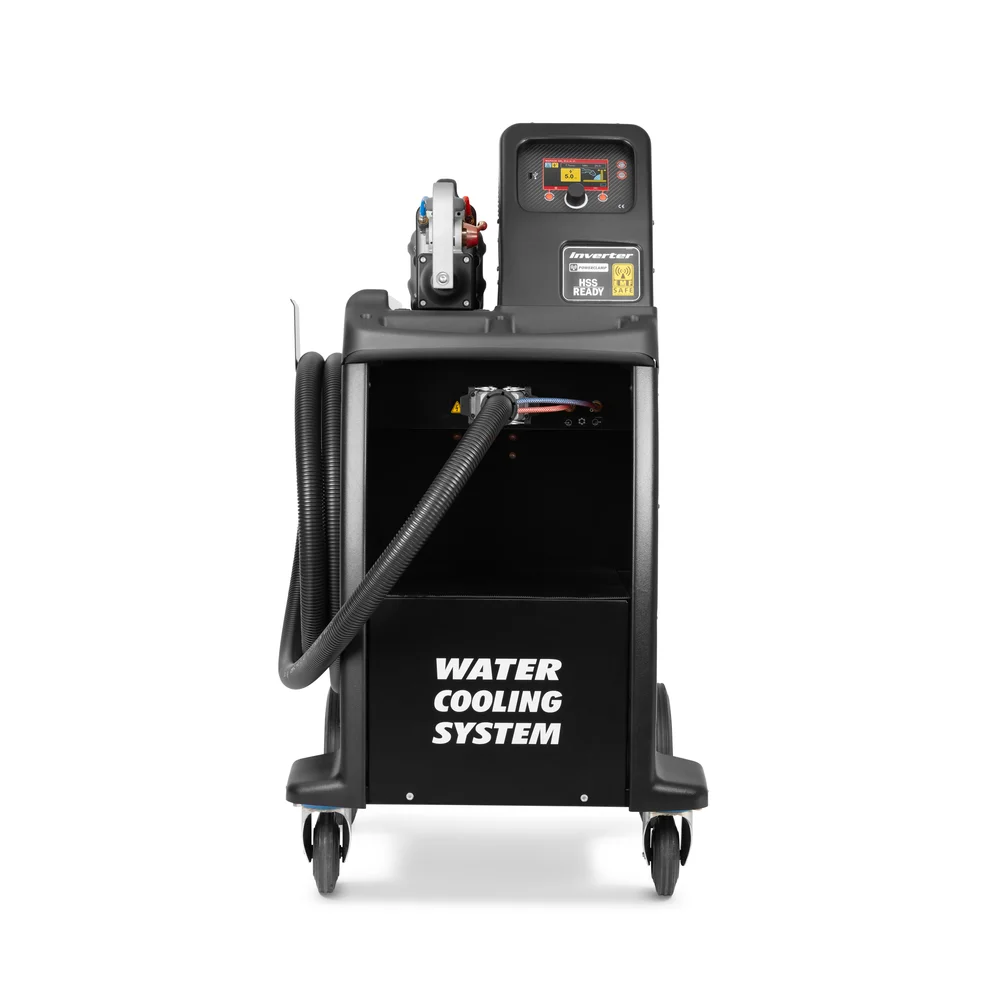

Telwin Inverspot 14000 Smart Aqua Spot Welder (823350)

Item Number:

872093
  • With the TELWIN INVERSPOTTER 14000 SMART AQUA, you can choose from Auto, Easy, or Pro modes.
  • Inverter spot welding machine with Wave OS technology and TFT colour panel. With liquid cooled pneumatic clamp.
  • SMART AUTOSET technology: automatic setting of the spot welding parameters thanks to type and thickness detection of the materials to weld.
  • POWER GUN technology: power circuits integrated in the clamp. Long (5m) and light cables for ample action range.
  • Saving spot welding data via USB. Spot Welding Data Management for reading and processing spot welding data.
  • Optional connectivity kit for data transfer via Wi-Fi, compatible with the Qantum app.
  • Numerous arms and electrodes available.

£8,310.00

01327 300700

Call Us for Expert Advice

Price available on request

Lease purchase options available‚Äč

Medium frequency, direct current (MFDC) inverter technology, microprocessor controlled resistance welding machine.
The POWER GUN technology allows for high spot-welding currents with low absorption rates, the use of longer (5m) and lighter cables for a better holding and a wider range of action and minimum magnetic fields around the cables. Automatic pressure monitoring ensures excellent adjustment of the force applied to the gun electrodes.
It is particularly suitable for body shop applications and industrial use and gives excellent results also on high strength steel (HSS)/boron and galvanised metal sheets.
The innovative SMART AUTOSET technology, thanks to the automatic recognition of the materials and thickness, eliminates set-up times and guarantees optimal spot welding even if the types of steel to be processed are not known.
The WAVE technology facilitates interaction with the machine and tracks all operating parameters for their processing and reporting.
The multifunction digital panel can be used to select the automatic Smart Autoset mode as well as the EASY and the manual mode; the programmes and reports there generated can be transferred to a USB pen drive.

Features:
pre- and post-heating for interventions on HSS and galvanized metals;
automatic recognition of the arm and inserted tool;
monitoring of mains voltage;
automatic cooling control of machine, clamp and cables;
regulation of approach, slope, welding and holding times;
regulation in pulsed welding;
automatic/manual regulation of pressure between electrodes.
Complete with water-cooled pneumatic gun.

CODE
823350

THREE PHASE MAINS VOLTAGE
400 V

MAINS FREQUENCY
50 / 60 HZ

MAX SPOT-WELDING CURRENT
15000 A

MAX NO LOAD VOLTAGE

13 V

MAX ABSORBED POWER
68 KW

RATED POWER X=50%
10 KW

POWER FACTOR
0,8

INVERTER FREQUENCY
8000 HZ

MAX WELD.THICK. ON 2 SHEETS
3 + 3 + 3 MM

MAX ELECTRODES POWER
580 DAN

DUTY CYCLE
2 %

PROTECTION DEGREE
IP20

DIMENSIONS
80 X 52 X 115 CM

WEIGHT
100 KG

1 Unit Supplied with:

Inverterspotter 14000 Smart Aqua Spot Welder 400v with Pnuematic C-Gun (823350)
CA1 C-Arm L=95mm & Electrode

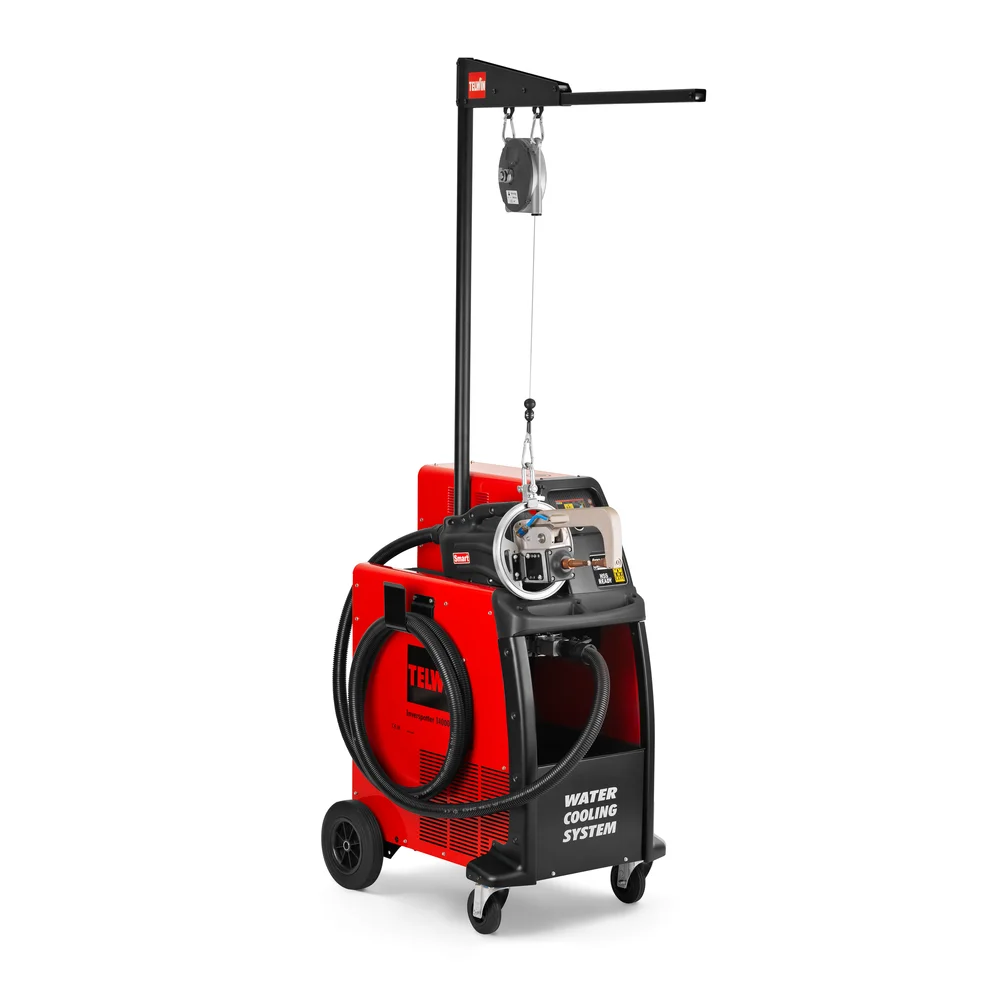

Load Balancer and Support kit (802650)
CMKA Caps Maintenance Kit Aqua (802767)
Coolant for Cooling System (802976)

Accessories available upon request

DIMENSIONS
80 X 52 X 115 CM

WEIGHT
100 KG
