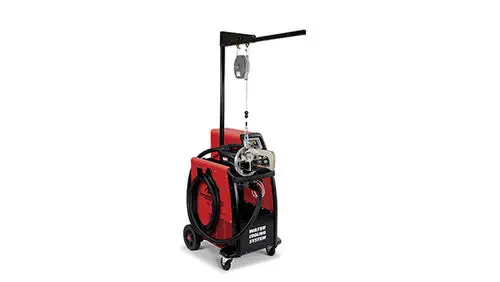

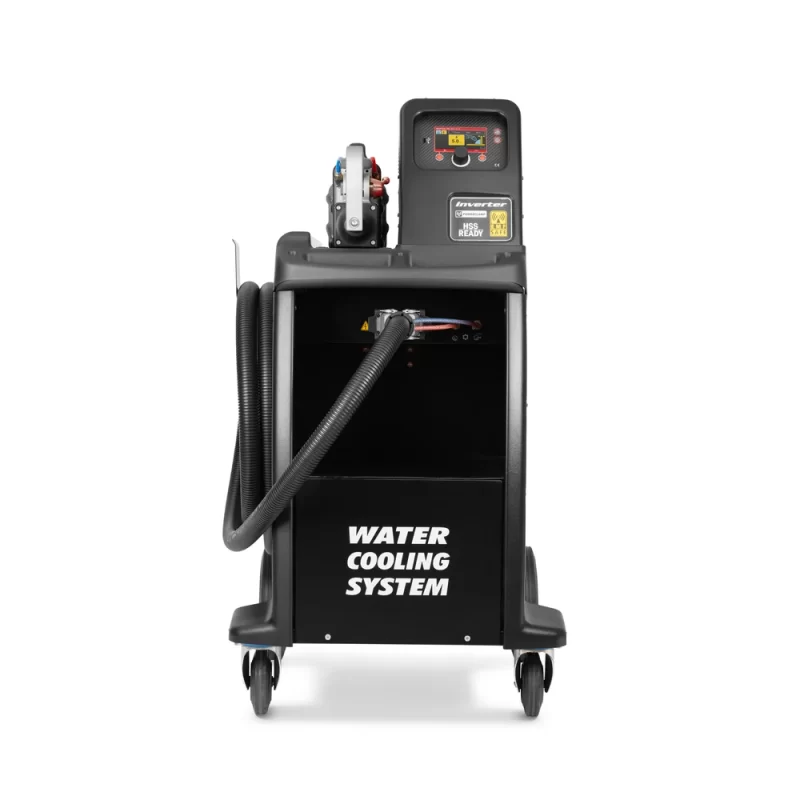

The Telwin Inverspotter 14000 Smart Aqua is a fully automatic, inverter-based resistance spot welder built for professional bodyshop and collision repair environments. Delivering up to 15,000 amps of welding current and 580 daN of electrode clamping force, this machine handles everything from standard mild steel to high-strength steel (HSS) and galvanised panels with consistent, high-quality results.
Approved by Mercedes-Benz, Ford, Volvo, Nissan and Fiat Iveco, the Inverspotter 14000 meets the strict standards required for manufacturer-approved bodyshop repairs. Its automatic material and thickness recognition removes guesswork, making it fast and easy to use even on complex multi-layer joints.
| Model | Inverspotter 14000 Smart Aqua 400V + ACC. (Code 823350) |
| Max Weld Thickness (2 sheets) | 3 + 3 + 3 mm |
| Supply Voltage | Three Phase 400V |
| Max Electrode Force | 580 daN |
| Mains Frequency | 50 / 60 Hz |
| Max Spot Welding Current | 15,000A |
| Max Absorbed Power | 68 kW |
| Rated Power (X = 50%) | 10 kW |
| Power Factor (cosφ) | 0.8 |
| Inverter Frequency | 8,000 Hz |
| Max No-Load Voltage | 13V |
| Duty Cycle | 2% |
| Protection Rating | IP20 |
| Dimensions | 80 × 52 × 115 cm |
| Weight | 100 kg |
| EAN Code | 8004897986692 |
The Inverspotter 14000 Smart Aqua is supplied as a complete package, ready to use straight out of the crate:
This spot welder is designed for professional bodyshops and collision repair centres that need manufacturer-approved equipment for structural and panel repairs. It is particularly suited to workshops holding or seeking approvals from Mercedes-Benz, Ford, Volvo, Nissan or Fiat Iveco, where certified resistance spot welding equipment is a requirement.
With automatic parameter adjustment and water-cooled operation, the Inverspotter 14000 reduces operator fatigue and delivers repeatable results across long production runs. The included accessory kit covers a wide range of arm lengths and electrode configurations, so you can tackle most common bodyshop spot welding tasks from day one.
Bodyshop Solutions is a specialist workshop equipment supplier with over 15 years of experience supporting bodyshops across the UK and Ireland. We provide expert advice on equipment selection, BSI and ATA weld testing, factory-trained calibration and servicing, and comprehensive aftercare. When you buy the Inverspotter 14000 from us, you get a trusted partner — not just a supplier.
Call us on 01327 300700 for expert advice, pricing, or to arrange a demonstration. Contact us here.
The Telwin Inverspotter 14000 Smart Aqua is a fully automatic, water-cooled resistance spot welder delivering up to 15,000 amps and 580 daN clamping force. Approved by Mercedes-Benz, Ford, Volvo, Nissan and Fiat Iveco, it automatically recognises materials and thickness for fast, consistent welds on all steels, including HSS and galvanised. Supplied complete with C-arms, electrodes, coolant and maintenance kit.
Original price was: £10,495.00.£9,995.00Current price is: £9,995.00.
Features:
– pre- and post-heating for interventions on HSS and galvanized metals
– automatic recognition of the arm and inserted tool
– monitoring of mains voltage
– automatic cooling control of machine, clamp and cables
– regulation of approach, slope, welding and holding times
– regulation in pulsed welding
– automatic/manual regulation of pressure between electrodes.
Complete with water-cooled pneumatic gun.
Inverspotter 14000 Smart Aqua 400V +ACC. code 823350
Max. Weld Thickness on 2 sheets = 3 + 3 + 3 mm Three Phase Voltage 400V Max Electrode Power 580 daN Mains Frequency 50 / 60 Hz Duty Cycle 2 % Max Spot Welding Current 15000A Protection Category IP20 Max Load No Voltage 13V Dimensions 80 x 52 x 115cm Max Absorbed Power 68kW Weight100 kg Rated Power X = 50%10 kW Ean Code 8004897986692 Power Factor (cosphi) 0,8 Pieces per Pallet: 1 piece per pallet Invertor Frequency 8000 Hz
Package Includes:
Inverspotter 14000 Smart Aqua Welder, including CA1 “C” ARM L=95mm +Standard Electrode Load Balancer and Pole Kit
CA3 “C” ARM L=300mm +Electrode
CA4 “C” ARM L=500mm +Electrode
CA5 “C” ARM L=42mm +Electrode
CMKA – CAPS Maintenance Kit Aqua
3 x Coolant for Cooling Systems
360 Ring Kit
