W&S InvertaSpot NexGen Spot Welder (471011NG)

Wielander & Schill InvertaSpot NexGen Spot Welder (471011NG)

The InvertaSpot NexGen is the latest mobile resistance spot welder from Wielander & Schill. It automatically detects the conditions at every joint and sets all welding parameters independently, delivering safe, precise welds on every pull of the trigger. Whether you are working with high-strength steel, ultra-high-strength steel, thin sheet metal, or galvanised panels, the NexGen handles it all.

Part exchange available: trade in your existing spot welder for up to £2,500 — subject to inspection. Call 01327 300700 for a valuation.

Key Features

• Automatic parameter detection – the machine reads the joint conditions and sets current, time, and pressure automatically. No manual guesswork required.

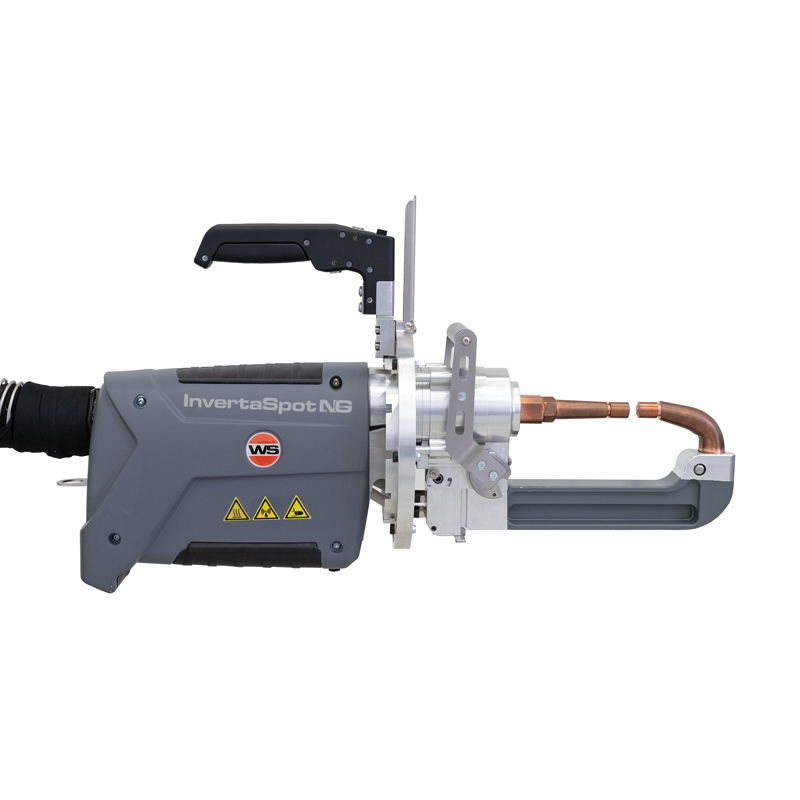

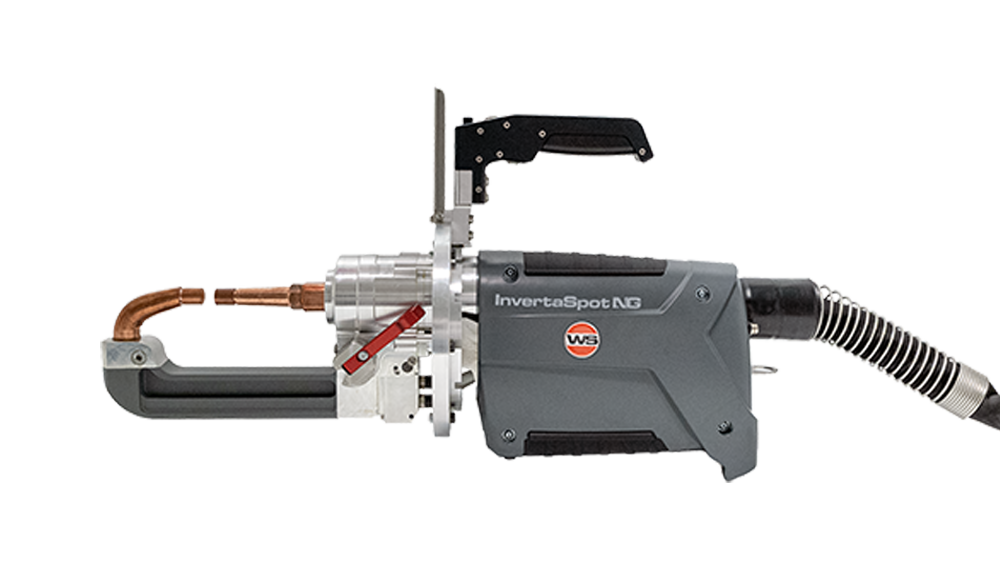

• Lightweight C-Trafo gun – weighs less than 10 kg with a 360° rotating handle and 5 m hose package, reducing operator fatigue during long repair sessions.
• Quick-change C-electrode arm system – swap between C-Arm No. 1 (150 × 70 mm), C-Arm No. 2 (wheel arches), and C-Arm No. 4 (350 × 450 mm) in seconds — all three included in the sale package.

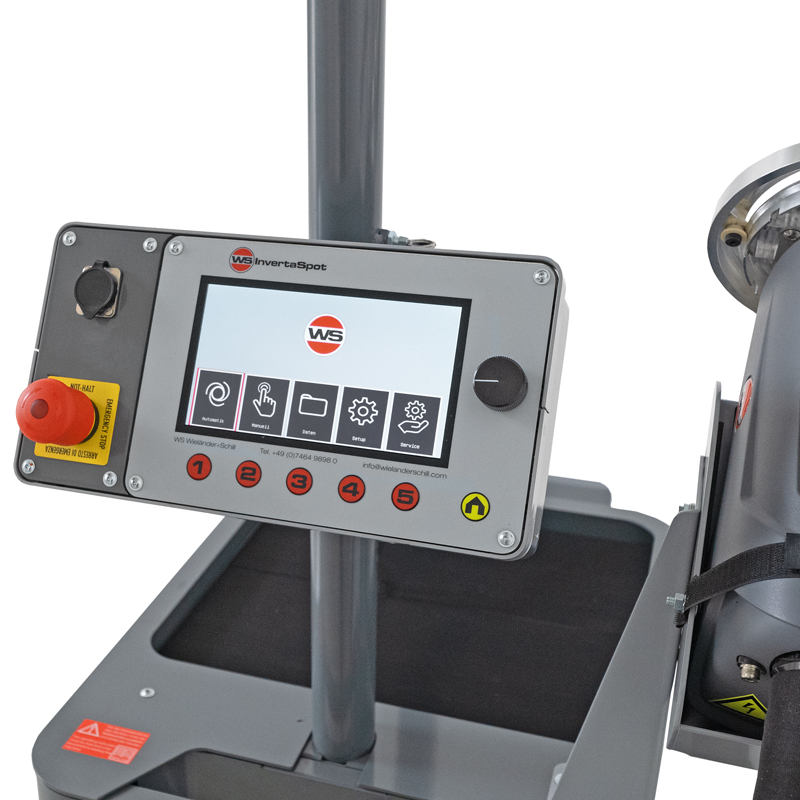

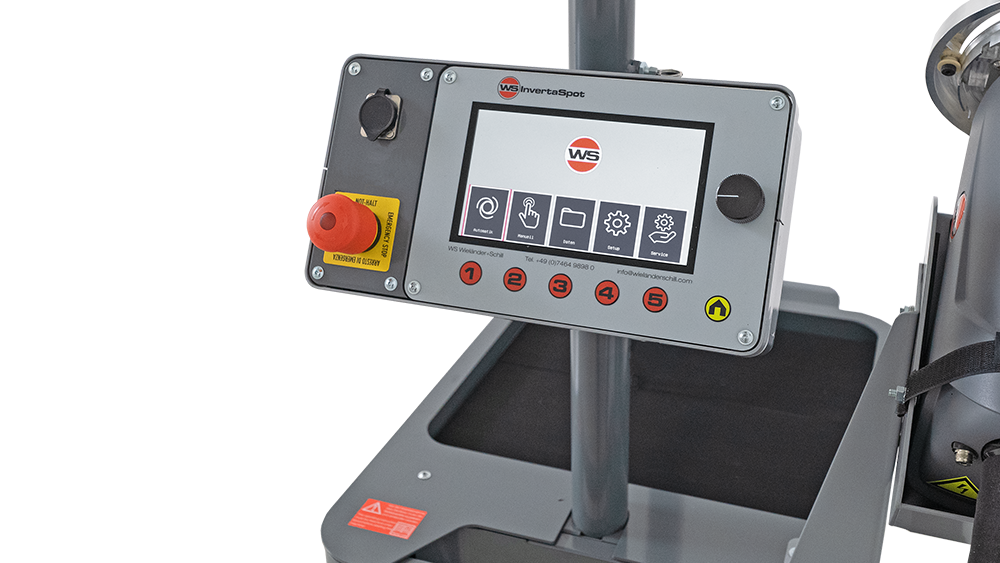

• Colour touch display – intuitive, user-friendly interface with self-explanatory symbols. No training manual needed.
• Pre-installed OEM programmes – factory-loaded welding parameters for Mercedes-Benz, Volkswagen Group, and BMW (OEM-specific arm packages and colour options available).
• Continuous process monitoring – the machine monitors every parameter in real time and displays actual values on screen, ensuring maximum process reliability.

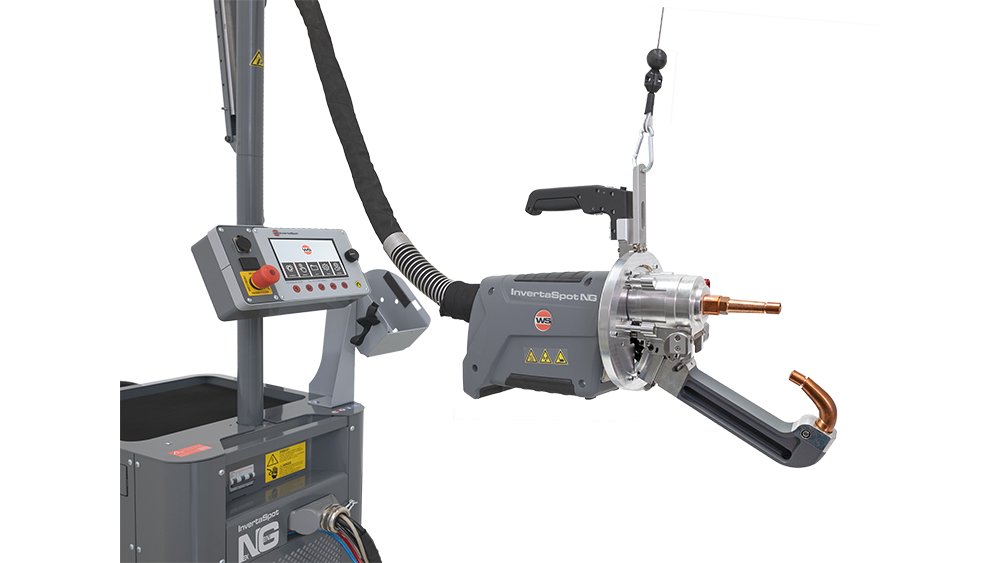

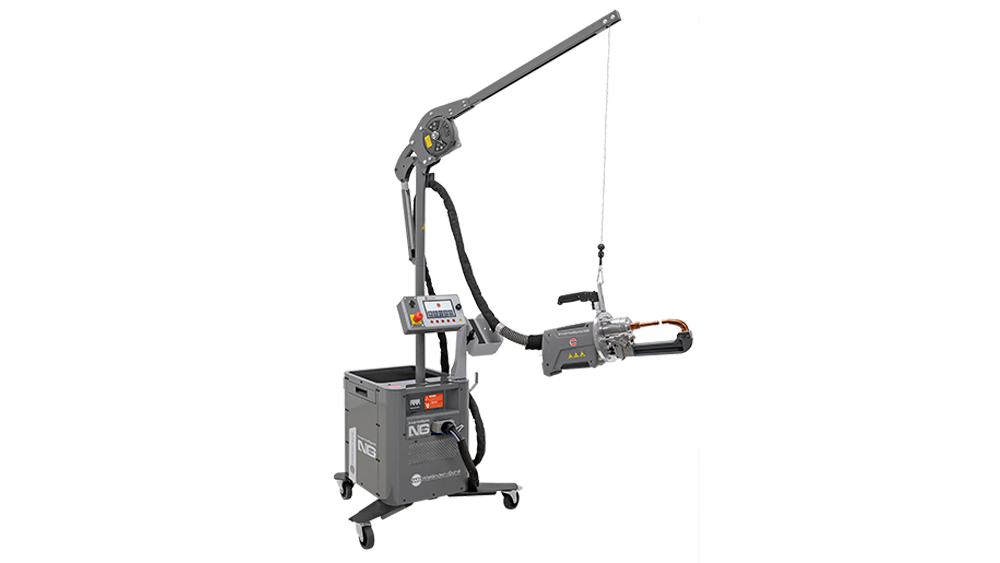

• Height-adjustable balancer – 130° working range, adjustable up to 2.4 m height, keeping the gun supported and easy to manoeuvre.
• Optimised cooling system – liquid cooling with heat exchanger and fan for sustained, high-duty-cycle welding.
• Integrated track widening – swivel and brake castors provide maximum stability when repositioning around the vehicle.
• Job data management – documents and stores weld data for audit trails and quality reporting.

Special Welding Programmes

The NexGen includes dedicated programmes optimised for:

• High-strength and ultra-high-strength sheet metal
• Thin sheet metal
• Spot-welded adhesive joints
• Galvanised sheet metal

Technical Specifications

What’s in the Box

• 1× Base unit (400 V)
• 1× C-Transformer gun NexGen-V8.1 (400 V, 5 m) — 474475
• 1× C-Arm No. 1 – 150 × 70 mm NexGen — 474001NG
• 1× Electrode caps Ø 16 mm, Form A-32 (6 pcs.) — 497096
• 1× InvertaProtect coolant (20 l) — 474009NG
• 1× Manual
• Sale bonus: C-Arm No. 2 and C-Arm No. 4 electrode arms included

Expand Your NexGen Setup

The quick-change arm system means you can add C-arms to tackle any panel geometry. The full range of compatible arms includes:

• C-Arm No. 1 – 150 × 70 mm (standard) — included

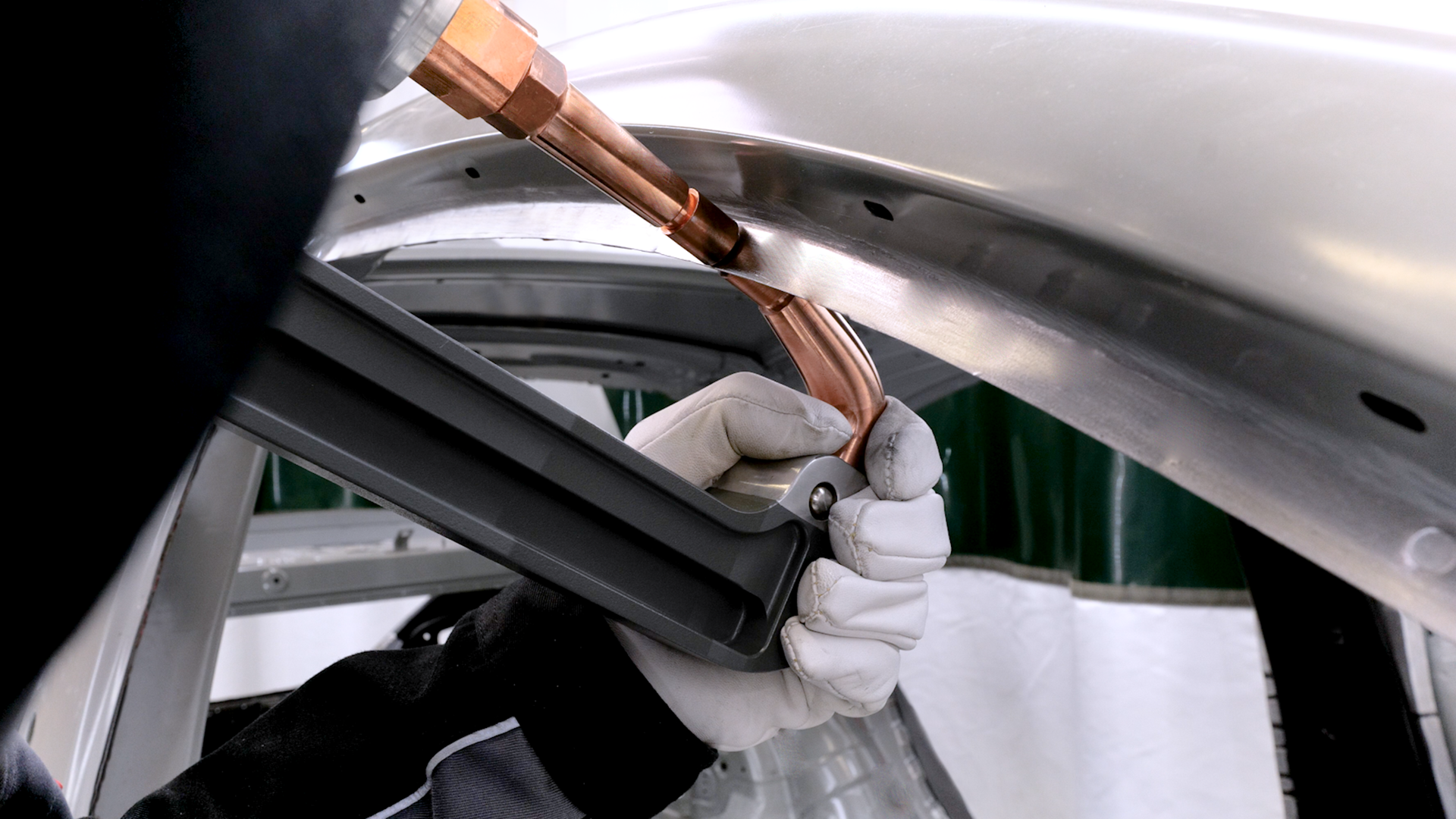

• C-Arm No. 2 – for wheel arches — included
• C-Arm No. 3 – 150 × 450 mm
• C-Arm No. 4 – 350 × 450 mm — included
• C-Arm No. 5 – 205 × 550 mm
• C-Arm No. 6 – 120 × 120 mm
• C-Arm No. 7
• C-Arm No. 9
• C-Arm Set No. 2 + No. 3 (495630)

Recommended Accessories

• Electrode for Welding Studs – 2 mm / 2.5 mm / 4 mm (497021) — £37.99
• GT Vice Grip Pliers – Earth Cable (475013) — £102.99
• InvertaSpot GT Single-Side Accessory Kit (478002) — £148.93
• Electrode Set No. 11 – 90° Angle (495606) — £403.99
• Electrode Set No. 7 – 90° Angle (495607) — £920.95
• Electrode Set No. 72 – Sprinter / Astra (495082) — £683.99
• C-Arm Electrode Attachment No. 10 – Wheel Arches (495604) — £631.99
• C-Arm Electrode Attachment “Passat” (495664) — £595.75
• Electrode Arm No. 68 – Wheel Arches (495065) — £439.99
• Welding Studs – AlSi12 – M4×15 mm – 100 pcs. (367015) — £16.99

OEM Manufacturer Approvals

The InvertaSpot NexGen holds approvals from Mercedes-Benz, Volkswagen Group, and BMW. If your bodyshop repairs vehicles under manufacturer warranty or insurer mandate, this machine meets the required standard. Browse our full range of vehicle manufacturer-approved equipment.

Weld Testing & Calibration

Bodyshop Solutions provides BSI and ATA weld testing and factory-trained calibration services to keep your InvertaSpot NexGen performing to specification. Our engineers can also deliver on-site operator training.

Why Buy from Bodyshop Solutions?

Bodyshop Solutions Ltd is the exclusive UK and Ireland distributor for Wielander & Schill. Every InvertaSpot NexGen ships with full manufacturer warranty, professional installation, and ongoing aftercare from our factory-trained engineers. We also offer lease purchase options to spread the cost. Call 01327 300700 for expert advice, a part-exchange valuation, or to arrange a site visit.

Download the InvertaSpot NexGen brochure (PDF)
