Item Number:
Thanks to a special programme, cutting is even possible on surfaces that are dirty or covered with paint residue. Sheet metal up to a thickness of 6 mm can be cut without any problems, while sheet metal up to a thickness of 8 mm can be cut in rough cut mode.
Scope of delivery:

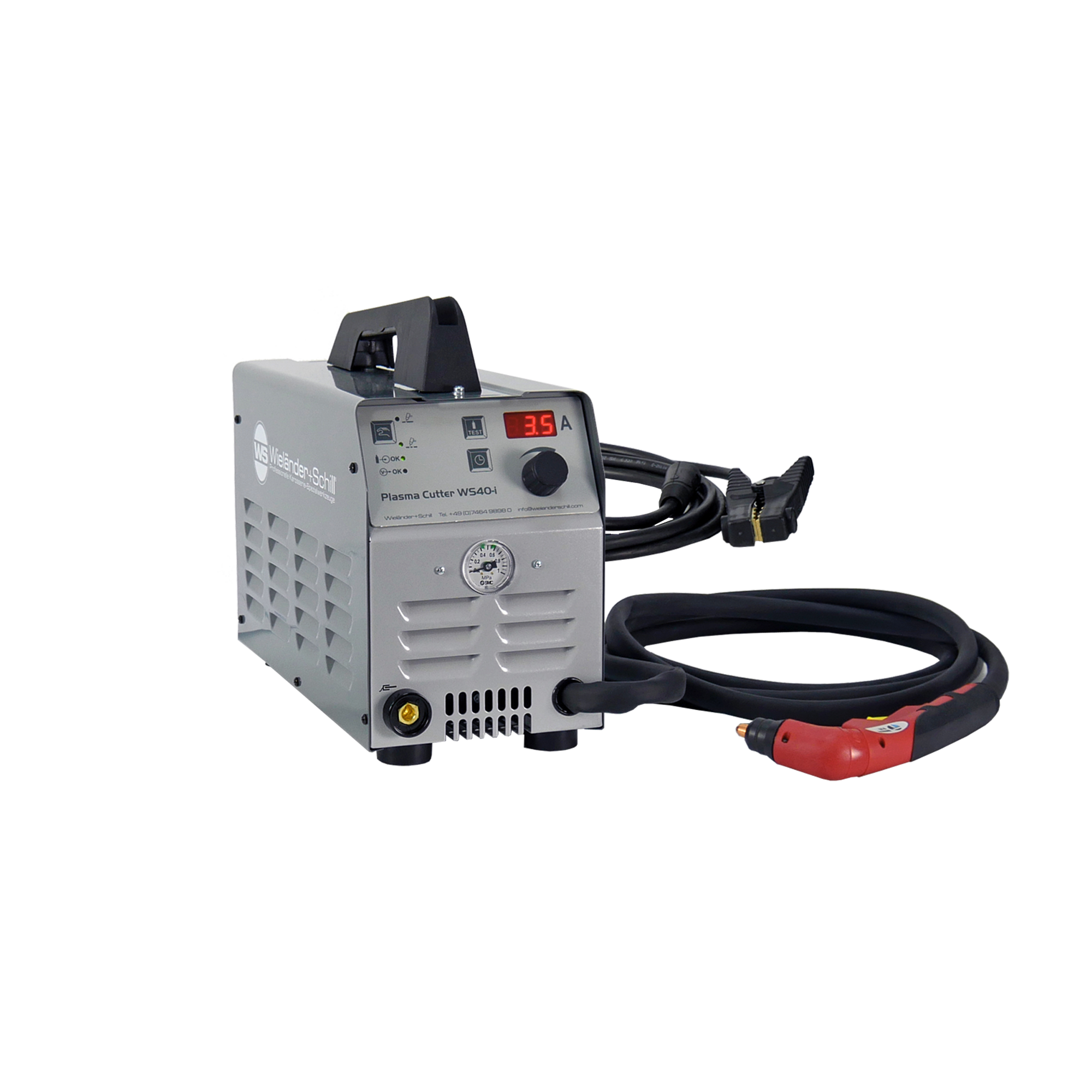

1 x Wielander & Schill Plasma Cutter WS 40-i
1 x 174004 Torch kit S25 | WS 40-i
1 x 174016 Ground cable | WS 40-i
1 x Operating instructions (multilingual)
| Air consumption: | 0,045 – 0,075 m³/min |
|---|---|
| Cutting range: | < 6 mm / < 8 mm |
| Effectiveness: | 84 % |
| Fuse: | 16 A (slow) |
| Length × width × height: | 247 x 173 x 372 mm |
| Mains connection (Cu): | 3 × 2,5 mm² |
| Mains voltage: | 230 V |
| Mark of conformity: | CE |
| Open circuit voltage: | 480 V |
| Operating pressure: | 6 bar |
| Operating temperature: | -10 bis 40 °C |
| Power factor: | 0,74 |
| Protection class: | IP 23 |
| Voltage setting range: | 84 – 92 V |
| Weight: | 14,5 kg |
£2,495.00
1 in stock
“WS40i Plasma-Cutter, 230V/1phase”
Inverter Plasma technology the latest generation
High performance control for a steady cutting arc result in smooth and straight cuts.
No problem to cut over small gaps – the arc remains stable.
4 functions timer
Energy cost savings – ~ 50% less starting energy needed compared to other models
This results in extended life time of current nozzles, cutting nozzles and torch.
Packing unit: 1 pc.
Open-circuit voltage: 403V
Gross weight: 14,500 kg
Voltage range: 84-92V
Power factor: 20,5A
Temperature class: – / S
Power supply (Cu): 3×2,5 mm²
Protecton category: IP23
Fuse: 16A
Continuous output: 0,23 kVA
Welding current max.: 4,7 kVA
Certificatons: CE
Setting ranges: 0,1-0,3 kVA
LängexBreitexHöhe: 247x173x372 mm
Cutting range: <6mm/<8mm (Grobschnitt)
Specifics: Infinitely variable adjustment
Net weight: 14.50, 14,500 kg14,500 kg
Lenght: 3 m (power cord)
Frequency: 50/60 Hz
Supply voltage: 230V
Packing unit: 1 pc.
