XSeries Professional Riveting System
XPress 1000 SC standard riveter set for removal and installation of self piercing rivets with diameters of 3 mm and 5 mm.
Original price was: £4,995.00.£4,795.00Current price is: £4,795.00.
XPress 1000 SC standard set for removal and installation of self piercing rivets with diameters of 3 mm and 5 mm.

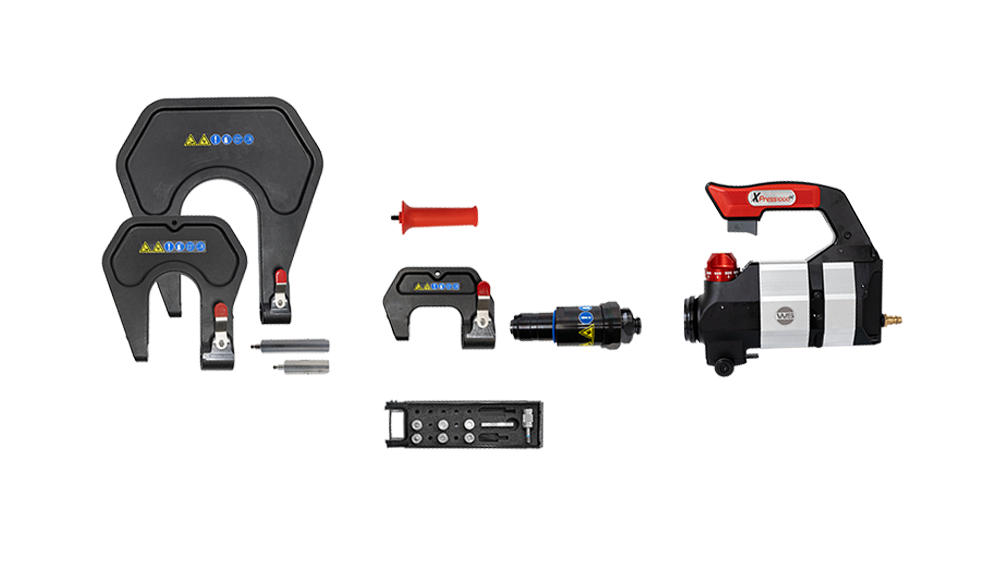

Scope of delivery
1 x 700090 PowerPack | XPress 1000 SC
1 x 700060 SSC 35/25 Short stroke cylinder
1 x S700070 C-Arm GC 80/40
1 x 700080SC C-Arms | 4-piece set (S700071+S700072)
1 x 700200 Tool Box RS-03 | BMW
1 x 881341 Handle for Fix Magnets & C-Arms | red
1 x 700801 Box for rivets/mouth pieces/small parts | empty
1 x Transport case
1 x Instruction manual
Air quality: ISO 8573-1
Details: PB max: 1000 bar
Force: 96 kN
Material: Alu, Aluminium, Plastic, Steel, kunststoff
Max. oil volume: 120 cm³
Oil type: HLP 22 – HLP 36
Operating pressure: 8 bar
Operating temperature: 5 bis 50 °C
Sound pressure level: 75 dB(A)
Stroke: 25 mm
Vibration: < 2,5 m/s²
Work window: max. 140 x 240 mm
Scope of delivery
1 x 700090 PowerPack | XPress 1000 SC
1 x 700060 SSC 35/25 Short stroke cylinder
1 x S700070 C-Arm GC 80/40
1 x 700080SC C-Arms | 4-piece set (S700071+S700072)
1 x 700200 Tool Box RS-03 | BMW
1 x 881341 Handle for Fix Magnets & C-Arms | red
1 x 700801 Box for rivets/mouth pieces/small parts | empty
1 x Transport case
1 x Instruction manual
