XPress 1000 SC Riveter – Basic Set (700000SC)

XPress 1000 SC Riveter – Basic Set (700000SC)

The XPress 1000 SC Riveter Basic Set offers the most affordable entry point into the XSeries 1000 SC professional riveting range by Wielander & Schill. Specifically, it handles the removal and installation of self piercing rivets with diameters of 3 mm and 5 mm. As a result, bodyshop technicians can carry out manufacturer-approved SPR joining and repair processes on modern multi-material vehicle bodies.

This basic set centres around the XPress 1000 SC PowerPack with patented Smart Control technology. Consequently, it delivers precise, repeatable force up to 96 kN while maintaining a compact and ergonomic design suitable for daily workshop use.

XPress 1000 SC Basic Set Applications

• Removal of self piercing rivets (SPR) – 3 mm and 5 mm diameters
• Installation of self piercing rivets (SPR) – 3 mm and 5 mm diameters

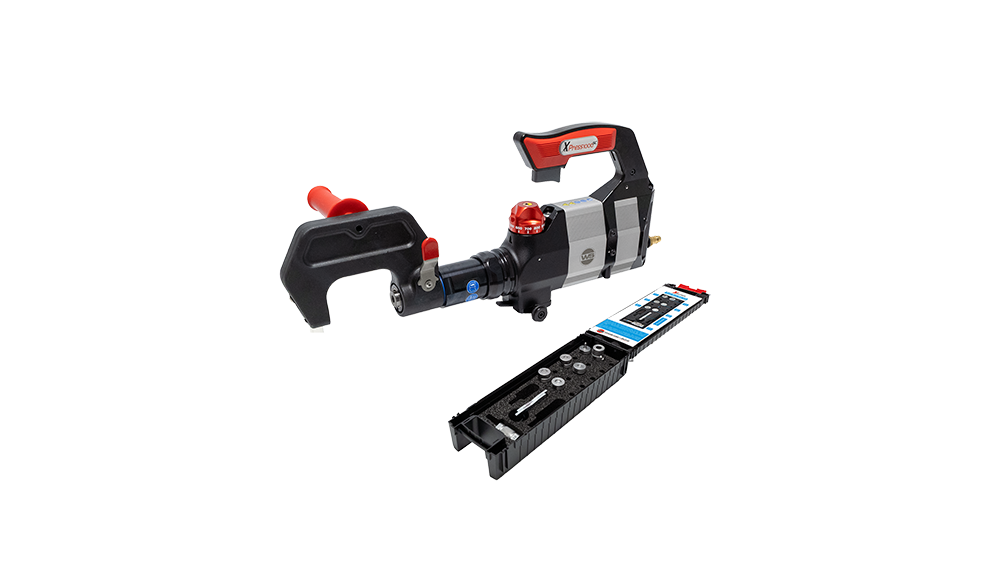

XPress 1000 SC Basic Set Scope of Delivery

• 1 x 700090 PowerPack – XPress 1000 SC
• 1 x 700060 SSC 35/25 Short stroke cylinder
• 1 x S700070 C-Arm GC 80/40
• 1 x 700200 Tool Box RS-03 – BMW
• 1 x 881341 Handle for Fix Magnets & C-Arms – red
• 1 x 700801 Box for rivets, mouth pieces and small parts – empty
• 1 x Transport case
• 1 x Instruction manual

XPress 1000 SC Basic Set Technical Specifications

• Force: 96 kN
• Stroke: 25 mm
• Work window: 80 × 40 mm
• Operating pressure: 8 bar
• Air quality: ISO 8573-1
• Max. oil volume: 120 cm³
• Oil type: HLP 22 – HLP 36
• Operating temperature: 5 to 50 °C
• Sound pressure level: 75 dB(A)
• Vibration: < 2.5 m/s²
• Material: Aluminium, plastic and steel

How Does the XPress 1000 SC Basic Set Differ from the Standard Set?

The basic set includes a single C-Arm (GC 80/40) with a work window of 80 × 40 mm. In contrast, the standard set adds the 700080SC 4-piece C-Arm set, which extends the maximum work window to 140 × 240 mm. Therefore, the basic set suits bodyshops that need a cost-effective starting point and plan to upgrade C-Arms later.

Why Choose the XPress 1000 SC Riveter Basic Set?

At just £3,795.00, the XPress 1000 SC Riveter Basic Set provides the most affordable way to access XSeries 1000 SC riveting technology. In addition, it includes everything you need for professional self piercing rivet removal and installation straight out of the box.

Furthermore, the patented Smart Control system uses a force-free fast approach stroke. In other words, the tool advances to the workpiece without applying pressure until it reaches the correct position. As a result, this approach significantly reduces the risk of workpiece damage during every riveting operation.

Because the system follows a fully modular design, you can expand this basic set at any time. For instance, you can add extra C-Arms to increase the work window. Similarly, blind rivet adapters, blind rivet nut adapters and the PushPull retraction cylinder all work as optional upgrades.

Additionally, you can purchase manufacturer-specific tool boxes for Mercedes-Benz, Ford and other brands separately. Above all, every component works seamlessly within the XSeries product family. Lease purchase options also help you spread the cost further.

Bodyshop Solutions supplies Wielander & Schill riveting systems across the UK. Simply call us on 01327 300700 for expert advice, pricing or to arrange a demonstration.
