XPress 1000 SC Riveter PushPull – Standard Set (7000006SC)

XPress 1000 SC Riveter PushPull – Standard Set (7000006SC)

The XPress 1000 SC Riveter PushPull Standard Set is a complete modular riveting system built for professional bodyshop use. Specifically, it features a force-supporting retraction cylinder designed for punching hard and ultra-hard structural parts. As a result, technicians can carry out manufacturer-approved joining processes on modern vehicle body structures with confidence.

This Wielander & Schill riveting system handles a wide range of applications. For instance, it supports extraction of self piercing rivets, installation of flow form rivets and solid self piercing rivets. Additionally, it can be used for backshaping and calibration tasks.

XPress 1000 SC PushPull Applications

• Extraction of self piercing rivets (SPR)
• Installation of flow form rivets
• Installation of solid self piercing rivets
• Backshaping
• Calibration

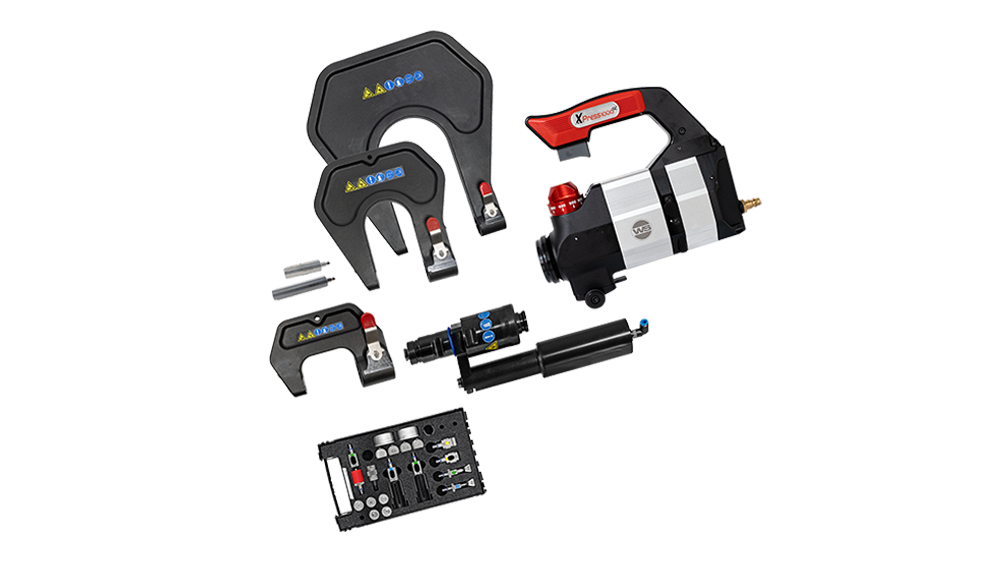

XPress 1000 SC Standard Set Scope of Delivery

• 1 x 700090 PowerPack – XPress 1000 SC
• 1 x 700105 PushPull PP 90 – Retraction cylinder
• 1 x S700070 C-Arm GC 80/40
• 1 x 700080SC C-Arms – 4-piece set (S700071 + S700072)
• 1 x 700205 Tool Box RS-07 – Mercedes-Benz
• 1 x Transport case
• 1 x Instruction manual

XPress 1000 SC Technical Specifications

• Force: Max. 10 kN / 126 kN
• Stroke: 16 mm
• Work window: Max. 140 × 240 mm
• Operating pressure: 8 bar
• Air quality: ISO 8573-1
• Max. oil volume: 120 cm³
• Oil type: HLP 22 – HLP 36
• Operating temperature: 5 to 50 °C
• Sound pressure level: 75 dB(A)
• Vibration: < 2.5 m/s²
• Material: Aluminium, plastic and steel

Why Choose the XPress 1000 SC Riveter PushPull?

Modern vehicles use increasingly complex multi-material body structures. Therefore, bodyshops need riveting equipment that can handle hard and ultra-hard materials reliably. The XPress 1000 SC Riveter PushPull delivers up to 126 kN of force. Consequently, it meets the demands of the latest vehicle manufacturer repair specifications.

Furthermore, the patented Smart Control system provides a force-free fast approach stroke. In other words, the tool advances to the workpiece without applying pressure until the correct position is reached. As a result, the risk of workpiece damage is significantly reduced.

Moreover, the modular design means this standard set can be expanded over time. For instance, additional C-Arms, tool boxes and adapters can be added as your repair requirements grow. Above all, every component is engineered to work seamlessly within the XSeries product family.

Bodyshop Solutions is an authorised UK supplier of Wielander & Schill riveting systems. Simply call us on 01327 300700 for expert advice, pricing or technical guidance.
