Item Number:

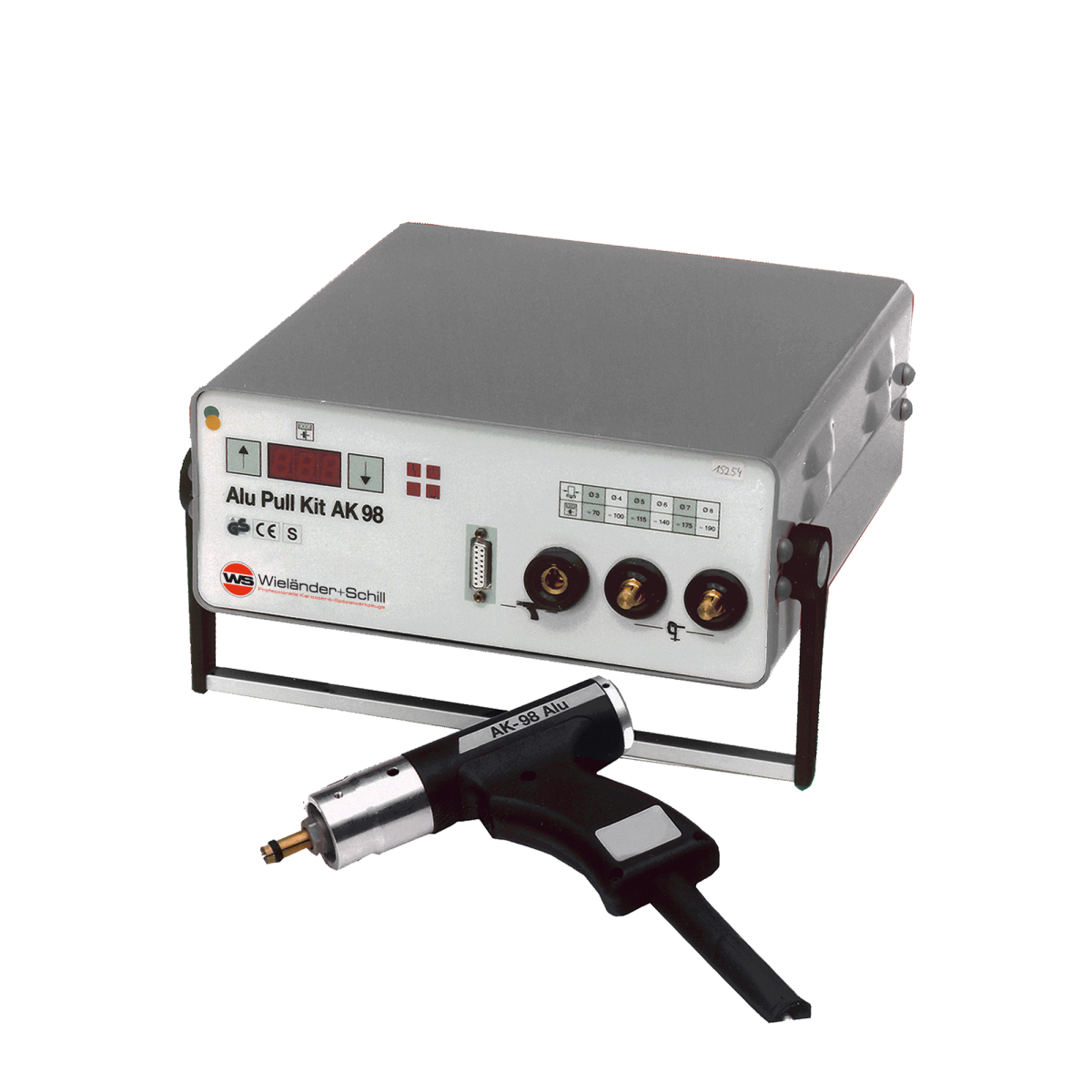

The stud welding device Alu Pull Kit AK 98 provides an efficient solution for repairing dents in aluminum sheets in body and vehicle construction. Equipped with an automatic gun and 100% microprocessor control, this device is ideal for eliminating small dents, dings, longitudinal scratches, and hail damage. The Alu Pull Kit allows for all dent repairs to be performed from the outside, eliminating the cumbersome pushing from the inside. Thanks to the precise digital display of the charging voltage, the performance parameters can be accurately adjusted. This ensures a precise application of the welding device.
Scope of delivery
1 x Control unit AK 98
1 x 368001 Welding gun | aluminium studs | Ø 3-8 mm
1 x 368104 Stud holder M4
1 x 367015 Welding studs | AlSi12 | M4 × 15 mm | 100 pcs.
1 x 368050 Pull rod V2A | 160 mm | PU: 3 pcs.
1 x 368043 Pulling eye nut | M4 | PU: 3 pcs.
2 x Earth cable
1 x Assembly key
1 x Instruction manual
1 x Transport case
| Frequency: | 50/60 Hz |
|---|---|
| Fuse: | 10 A |
| Length × width × height: | 300 x 120 x 320 mm |
| Mains voltage: | 230 V |
| Mark of conformity: | CE |
| Material: | Alu, Aluminium, Brass, Steel |
| Voltage setting range: | 50 – 200 V |
| Weight: | 11 kg |
Product information “Alu Pull Kit AK98”
Technology and innovation for the up-to-date car body repair: The AK 98 is a completely micro-processor controlled unit. The precise digital display showing the charging voltage allows for the exact adjustment of all parameters.
When using stud welding with capacitor discharge technology and peak-ignition. This means cool stud welding with no distortion. The aluminium panel is fully protected from heat. There will be no burnt patches on the inside of the panels. All bodywork repairs using the AK 98 can be done from the outside. Therefore, no more pushing from the inside and no more removing of the inside trimming or air bags.
Welding Range: aluminum studs Ø 4 mm
Welding quantity: up to 20 studs per min.
Welding Process: peak ignition
Power Source: capacitor battery
Charging Capacity: 66.000 µF
Dent removing with the AK 98 is very simple to master. The pistol AK 98 ALU is ergonomically shaped and easy to hold. This new technology saves time and helps to reduce repair costs.
Packing unit: 1 pc.
Supply voltage: 230V / 115V
Voltage range: 50-200 Volt continuously variable
Specifics: OEM Approval, VW/Audi approval
Net weight: 11,000 kg, 19.87
Lenght: 3 m (welding- and earth cable), 3m (welding cable)
Temperature range: 0°C to +60°C
Fuse: 10A
Frequency: 50/60 Hz
Welding current: AC
LängexBreitexHöhe: 320x300x120 mm
Gross weight: 19,870 kg
Material: Steel, aluminium, brass
Certificatons: CE
1x control unit AK98
1x welding gun aluminium incl. welding calble 3 m
1x adapter stud welding diam 4mm
100x alu-studs M4 x 15 mm
2x earth cable 3 m
1x assembling tool
1x transport casekoffer
3x pulling rods
3x screw pins
working instructions
