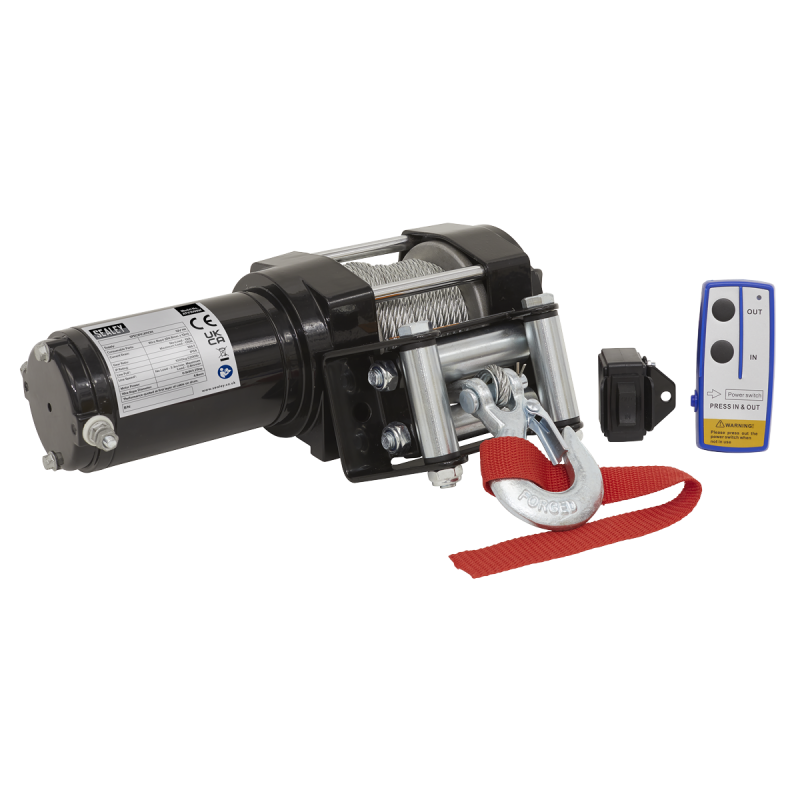

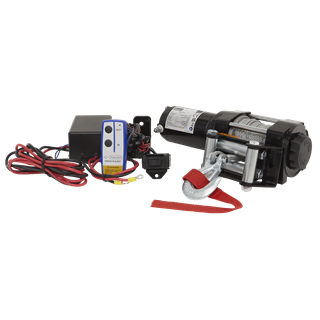

ATV Winch 1000kg Line Pull 12V AVT1000W

Item Number:

ATV1000W

ATV – Perfect for mounting an ATV.
3-STAGE – Use a 3-Stage planetary gearing mechanism.
12 VOLT – 1.2hp Permanent magnet DC powered motor.

£144.95

01327 300700

Call Us for Expert Advice

Price available on request

Lease purchase options available​

ATV – Perfect for mounting an ATV. 3-STAGE – Use a 3-Stage planetary gearing mechanism. 12 VOLT – 1.2hp Permanent magnet DC powered motor. CLUTCH – Features a pull and turn clutch. 4-WAY – Roller fairlead for even distribution of cable onto the drum. WIRELESS – Remote included for use at safe distances.

Consumable Parts: Wire Rope (Ø4.8mm x 12m)
Current Draw: No-Load - 12A, Maximum Load - 118A
Gear Ratio: 166:1
Line Pull*: 1000kg/2200lb
Line Speed*: No Load - 3.3m/min, Maximum Load - 0.8m/min
Motor Power: 0.9kW/1.25hp
Nett Weight: 8.5kg
Note: *Performance quoted at first layer of cable on drum.
Supply: 12V
Wire Rope Diameter: Ø4.8mm
