Item Number:
The IM 230-3 is the perfect partner for steel welding, aluminum welding, and MIG soldering. This 2-burner MIG/MAG inverter welding system offers synergy-regulated technology for maximum precision and user-friendliness.

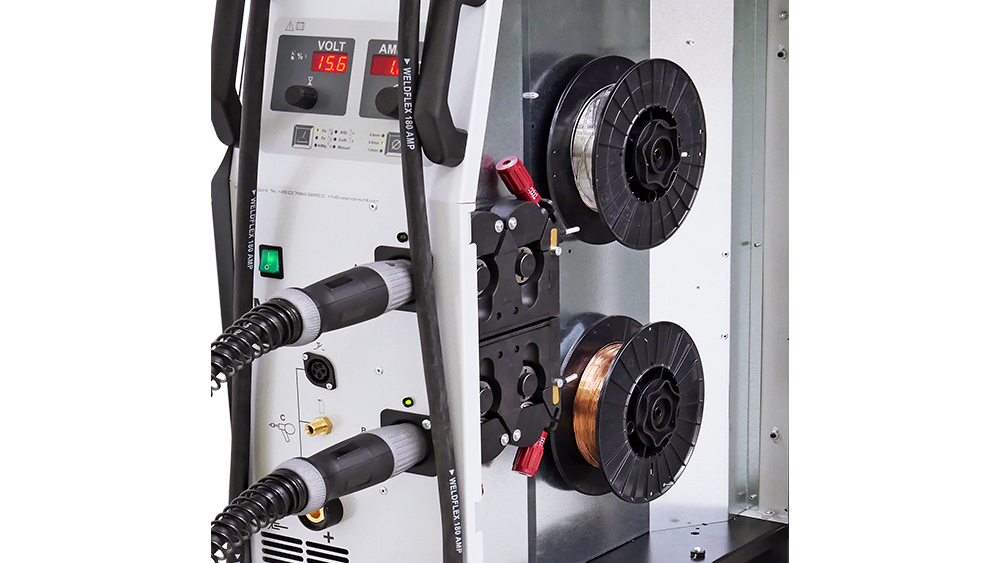

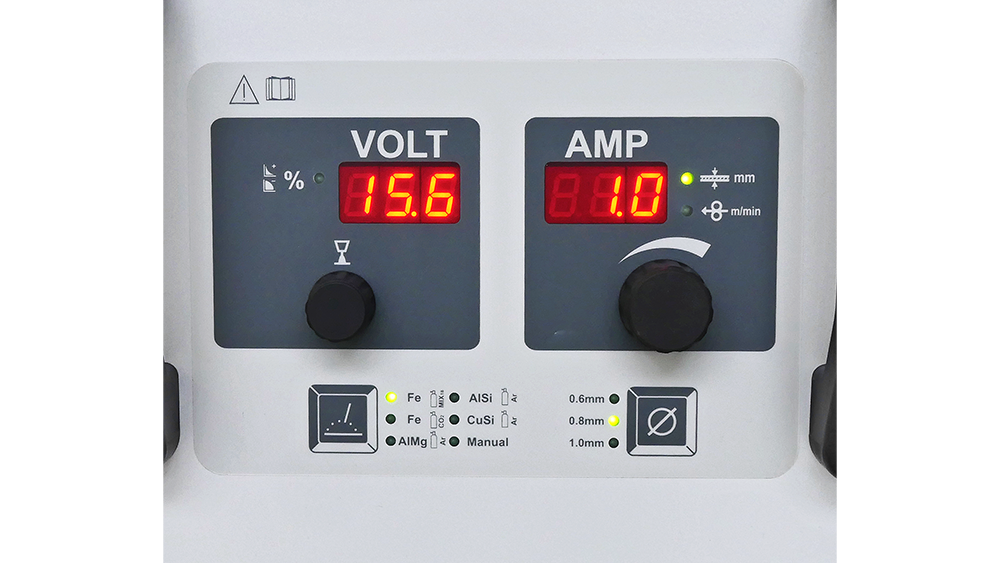

With the intuitive 2-button control, switching between different welding processes is effortless. The powerful welding current of up to 200 A and the modern 230 V inverter technology ensure top-notch results. The 3-burner system allows for the connection of up to two gas cylinders, while the connection for a spool gun expands the range of applications.
Equipped with:
2 x 337220 Wire feed rollers | steel | 0.8 mm & 1.0 mm
1 x 308102 Torch Force 200 | MIG soldering (CuSi3) | 3.0 m
1 x 308103 Torch Force 200 | Steel welding | 3.0 m
1 x ground cable with clamp | 4 m
2 x connection cable for shielding gas
1 x pressure cylinder holder for 2 × 20 liters
1 x operating instructions
| Current setting range: | 20 – 200 A |
|---|---|
| Effectiveness: | 83 % , 83 % |
| Fuse: | 16 A (slow) |
| Length × width × height: | 1030 x 640 x 880 mm |
| Mains connection (Cu): | 3 × 2,5 mm² |
| Mains voltage: | 1 ~ 230 V |
| Mark of conformity: | CE |
| Open circuit voltage: | 40,2 V |
| Operating temperature: | -10 bis 40 °C |
| Power factor: | 0,75 |
| Protection class: | IP 23 |
| Sound pressure level: | 67 dB(A) |
| Voltage setting range: | 10 – 35 V |
| Weight: | 50 kg |
| Wire speed range: | 1,5 – 20 m/min |
Product information “IM 240-3 Welding Inverter 230V”

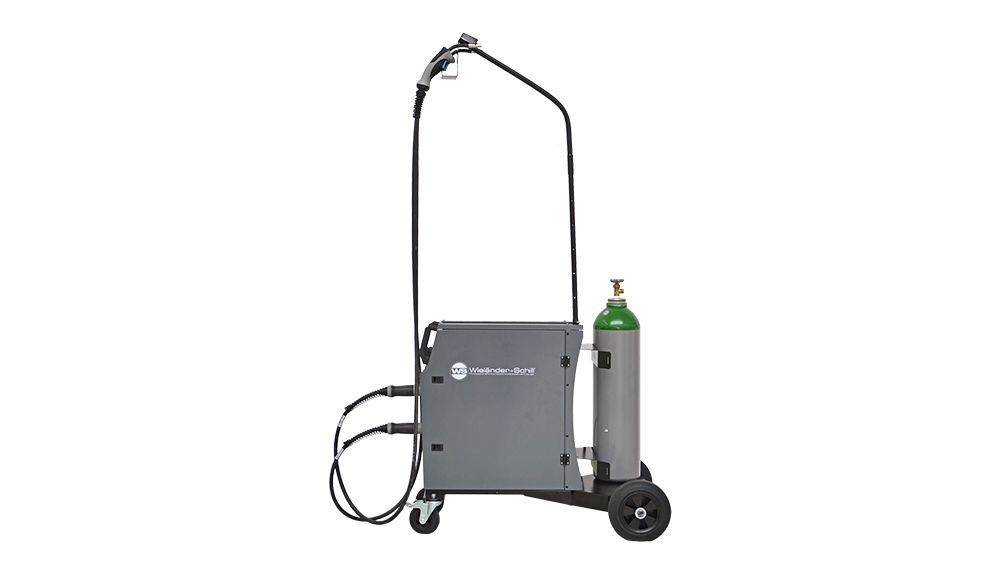

1x welding device IM 240-3 incl. castors
1x torch M155 MIG (MB15) 3 m, incl. wire spiral for steel welding and 0,8mm contact nozzle
1x torch M155 MIG (MB15) 3 m, teflon core for MIG brazing and 0,8mm contact nozzle
1x ground cable 4 m
2x DV rollers for MAG steel welding & MIG brazing
2x conector cable for inert gas

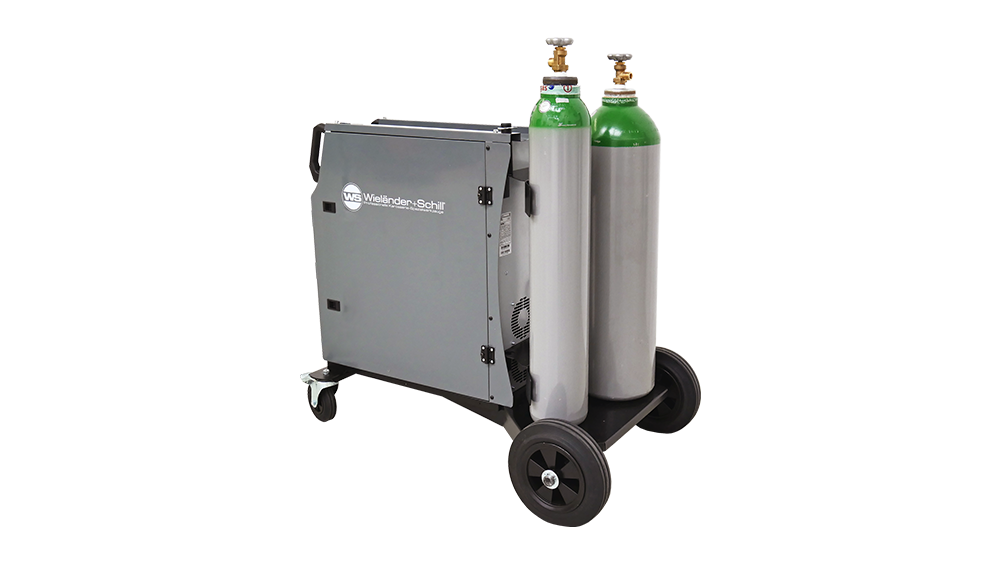

1x storage for 2x 20 liter gas bottles
1x manual
Certificatons: CE
Packing unit: 1 Stück / pc.
Supply voltage: 230 V
Open-circuit voltage: 40,2 V
Fuse: 16 A
Power factor: 0.75
Protecton category: 23
Efficiency: 87 %
LängexBreitexHöhe: 1030x640x880 mm
Welding current max.: 0,2 kA
Continuous output: 120 Amp / 20 V
Temperature class: H
Voltage range: 10-50 V / 0,1 V step
Drahtgeschwindigkeit: 1,5-22 m/min.
Draktvorschubrollen Ø: 37 mm
1x welding machine IM 240-3
1x M155 hose package 3m, wire spiral for steel welding, 0.8mm
1x M155 hose package 3m, PTSE core red for MIG brazing, 0,8mm
1x ground cable 4m
2x set of DV rollers for MAG steel welding & MIG brazing 0.8/1.0
1x instruction manual
2x connection cable for shielding gas
1x pressure cylinder holder for 2 x 20 liters
