Item Number:

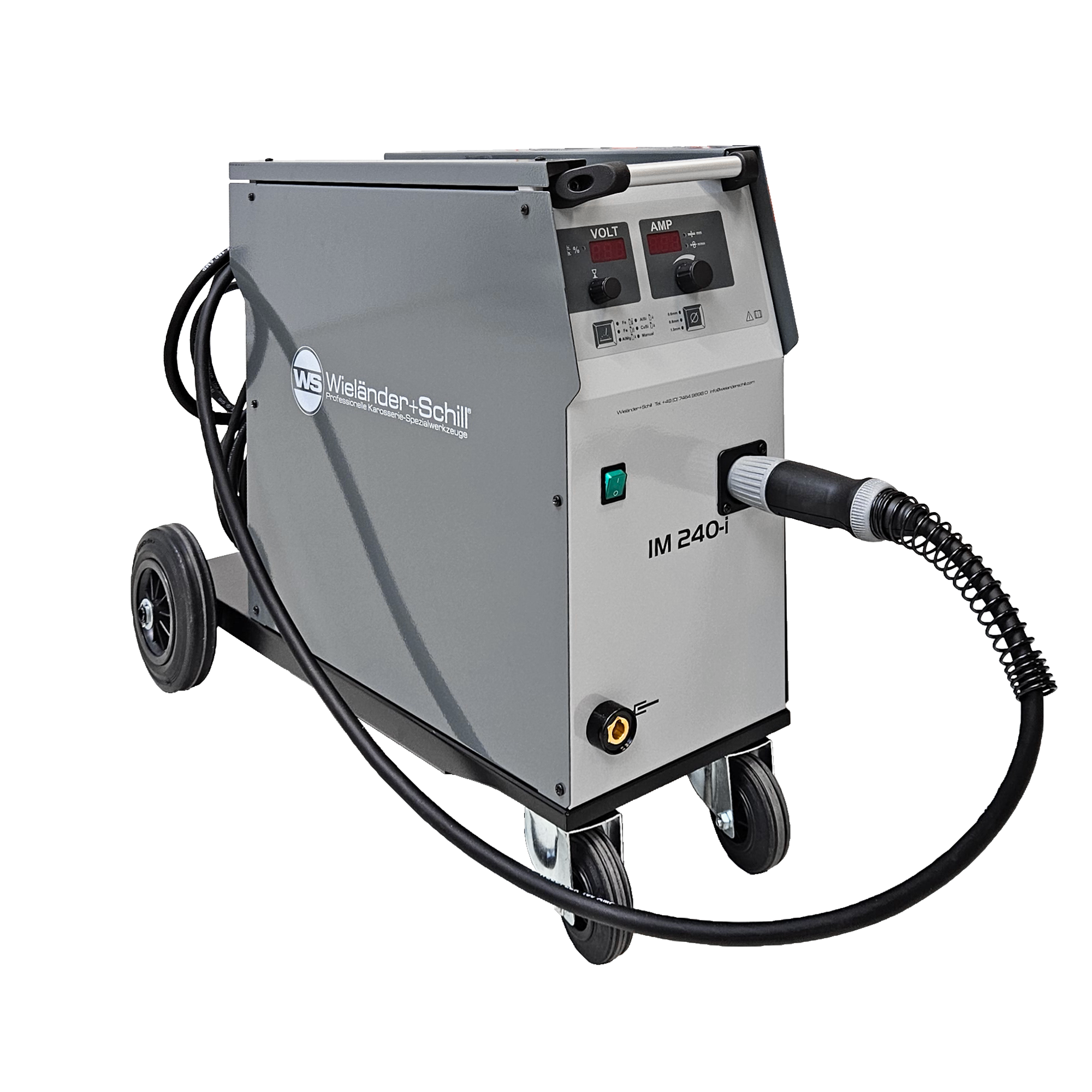

The IM 240-Eco welding machine is a compact MIG-MAG welding inverter specially developed for car body repairs. A unique advantage is the excellent MIG soldering characteristic. The very good steel welding characteristics enable all types of repairs to be carried out on vehicles with very good results.
Equipped with:
1 x 337219 Wire feed rollers | steel | 0.6 mm & 0.8mm
1 x 308103 Torch Force 200 | Steel welding | 3.0 m
1 x Ground cable | 4 m
1 x Operating instructions
| Current setting range: | 20 – 200 A |
|---|---|
| Effectiveness: | 85 % |
| Fuse: | 16 A (slow) |
| Length × width × height: | 880 x 400 x 635 mm |
| Mains connection (Cu): | 3 × 2,5 mm² |
| Mains voltage: | 1 ~ 230 V |
| Mark of conformity: | CE |
| Operating temperature: | -10 bis 40 °C |
| Protection class: | IP 23 |
| Sound pressure level: | 67 dB(A) |
| Voltage setting range: | 10 – 35 V |
| Weight: | 32 kg |
| Wire speed range: | 1,5 – 15 m/min |
Product information “MIG/MAG welding inverter IM 240-i EcoMIG”
The IM 240-i EcoMIG MIG/MAG welding inverter allows maximum flexibility with its MIG/MAG welding function and MIG brazing option.
The 4-roller drive with fine adjustment offers precise control of the wire speed from 1.5 to 15 m/min. Consistent and reliable wire feed performance is guaranteed.
With the holder for D300 spools, which can support a weight of up to 17 kg, this welding machine enables longer welding operations without frequent wire refilling. This saves valuable time and increases efficiency.
The integrated display of the IM 240-i EcoMIG has a practical hold function for welding current and voltage. This makes it easy to read and maintain the desired settings to ensure consistent welding quality. Therefore, excellent welding behaviour, especially in the thin sheet area, is ensured. Welding 0.6 mm steel can be done with ease and impressive results can be achieved. The dynamic setting additionally facilitates the detachment of the ball at the end of the wire through its end-pulse function.
Packing unit: 1 pc.
Supply voltage: 230 V (+10/-15%)
Net weight: 46.00, 40,000 kg
Temperature range: -40°C to +80°C
Voltage range: 10-35 V
Power factor: 0.75
Efficiency: 87%
Temperature class: H (180°C)
Fuse: 16 A
Continuous output: 0,12 kA / 20 V
Open-circuit voltage: 40,2 V
Certificatons: CE
Continuous operation: 20%/ 0,2 kA / 24 V
Setting ranges: 0,020 – 0,200 kA
Working temperature: -10 to +40°C
Gross weight: 53,000 kg, 48.00
Specifics: Ø wire-drive spools 37 mm
Length: 3 m (distiller pack)
Power supply (Cu): 3×2,5 mm²
Protection category: IP23
1x IM 240-i EcoMIG control unit incl. wheels
1x Steel Torch Force 200 | 3m | 0.8 mm
1x Wire Transport Wheels for steel 0.8/0.6 mm
1x earth cable 4 m
1x operating manual
