Cleaning set incl. cleaning brushes, needles, etc. for manual cleaning of paint spray guns of all kinds. The 22-piece set contains all relevant tools and aids. In addition, a suitable spray gun cleaner should be used, e.g. the ready-to-use paint and varnish remover PROLAQ WS.
Product information "Paint Spray Gun Clean Set - 22 pcs"
1.Remove the paint needle and air cap, then unscrew the paint nozzle.
2.Rinse / clean the paint channel in the spray gun with the appropriate cleaning agent PROLAQ WS and brush.
3.Clean the spray gun body (outside), then dry with a blow gun.
4.clean the complete nozzle set (air cap, paint nozzle, needle, etc.) with the brushes, needles, etc. included in the cleaning set.
5.Please make sure that no metal parts of the brushes damage the surface of the spray gun or its individual parts.
6.reassemble in reverse order, lubricate paint needle in sealing area and spring.
Packing unit: 1 set
Net weight: 0,120 kg
Gross weight: 0,270 kg
LängexBreitexHöhe: 270x180x40 mm

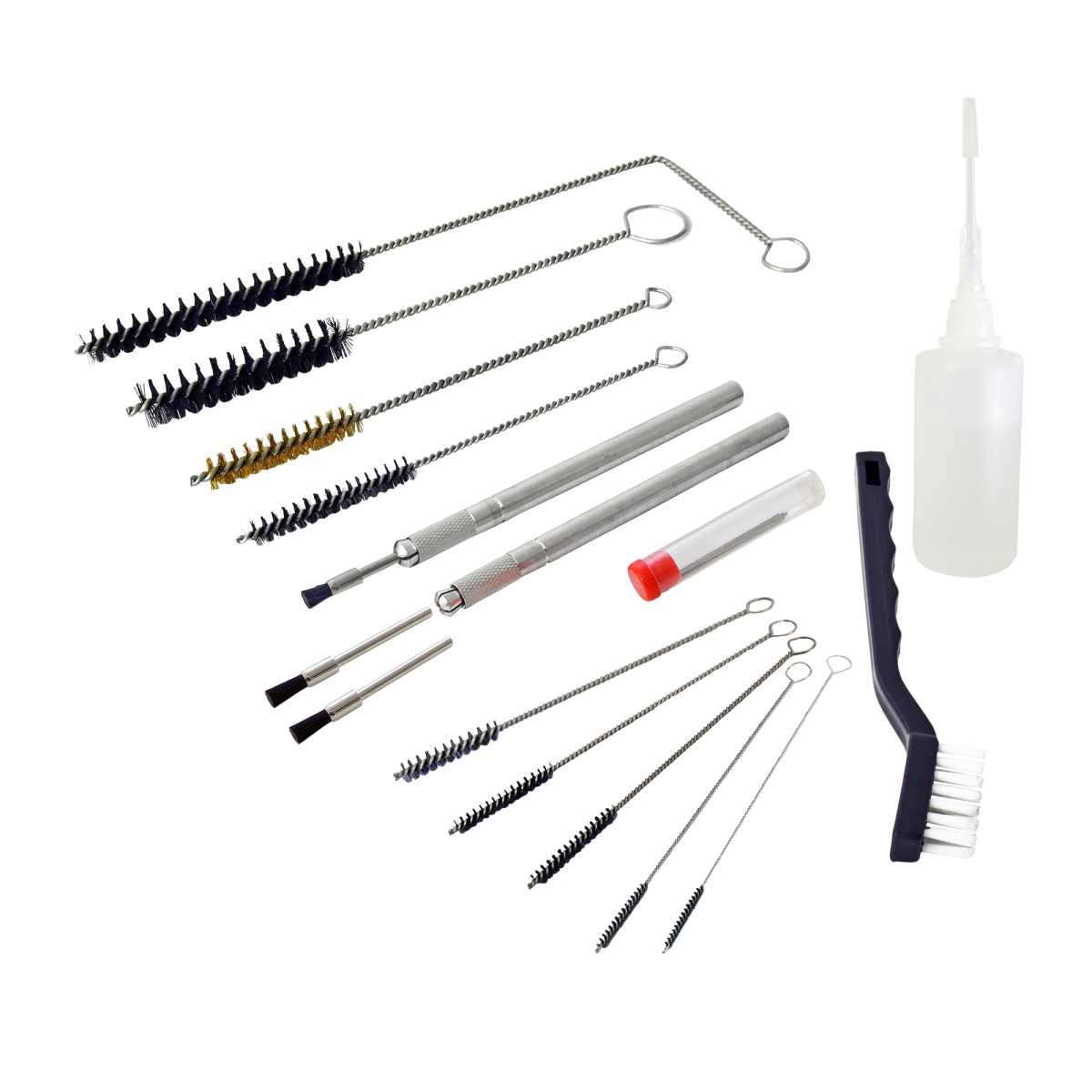

1x Nylon bristel brush
1x Brass pick-up tube brush
1x 12" pick-up tube brush
1x 1/4" HVLB brush
1x 1/2" body cavity brush
5x precision twisted brushes
3x detail end brushes (1/4", 3/8", 1/2")
1x handle for detail end brushes
6x precision needles
1x handle for precision needles
1x spray gun lube, 25 ml
