Spot Weld Machine InvertaSpot GT-C AUTOMATIC Inverter Spot Welding Machine 400V (471002)

Item Number:

471002

InvertaSpot GT: Press & GO Spot welder with Inverter Technology – high quality.Developped consequently acc. specifications on process stability.

Automatic function in standard-mode – Expert mode and manual mode for ambitious jobs –

tested and approved by:
VW* | Audi* | Porsche* | SEAT* | ŠKODA* | Lamborghini* | Bentley* | Bugatti* | Honda | Acura |
Jaguar Land Rover | GM | GMC | Opel | Vauxhall | Cadillac | Buick | Chevrolet | Ford | Peugeot | Citroën | Renault | Dacia | Tesla | Hyundai | Kia | Ferrari | Mazda

recommended by:
BMW* | MINI* | Rolls-Royce* | Mercedes-Benz* | Maybach* | Smart

*differentiation in look (colour, lableing etc.) and scope of delivery

01327 300700

Call Us for Expert Advice

Price available on request

Lease purchase options available​

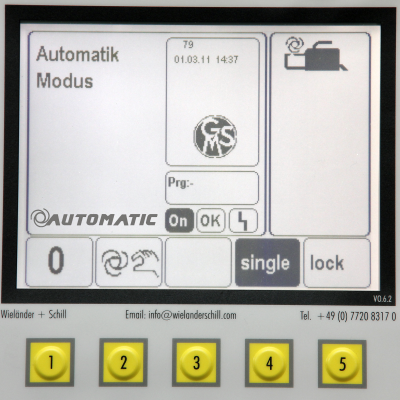

Power unit + control board:The GT automatic recognizes and measures the sheet metal configuration automatically. The parameters pressure-amperage-time are perfectly and automatically managed and regulated. Working in Automatic mode no need for manual settings.

Manuel Mode
Expert Mode
Program-Saving-Mode
OEM programs
Self-programming via frontboard
HF-inverter-technology / 10.000Hz. welding current up to 13.000 A (on the job)

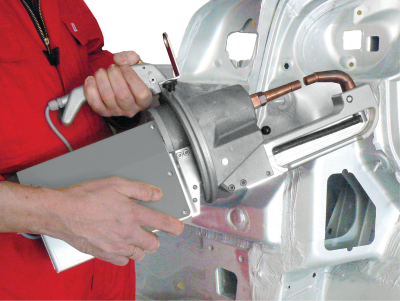

C-trafo-gun
C-gun in compact design
Electrode arms versatile in use
Welding cable up to 5 m
Water cooling up to the tips
Magnet field exposure and stress far the norms (EU-Richtlinie 2004/40/CE, EN50505, EN62135-2:2007 und BGV V11/2001)
Welding data saved on SD card
Tracability up to 100.000 welds- paper print out
Operation
Simply, multi-lingual menu
Updates via SD card - via internet possible
Universal programs and professional programs

Packing unit: 1 pc.
Continuous output: 35 kVA
Net weight: 122,00 kg, 122.00
Flow volume: 5 l/min., 5l/min.
Power connection: L1+L2+L3+PE, L1xL2+L3+PE
Protecton category: IP 21, IP 20
Setting ranges: 0 -13 kA, 0-13 kA
Welding current: DC, AC
Electrode pressure max.: 6,2 kN
Tank capacity: 80 l
Temperature class: A
Power supply (Cu): 4x6 mm² / 10 mm
Fuse: 32 A
Power max. (5% ED): 156 kVA
Specifics: OEM Approval
Supply voltage: 3x400V
Open-circuit voltage: 12 V DC
Continuous operation: 2,8 kA
Frequency: 50-60 Hz (+/- 10%)
Welding current max.: 13 kA
Noise level: < 70 db(A) Dimensions: 810x560x750 mm Gross weight: 122,000 kg Lenght: 10 m (power cord) Working pressure: 6-8 bar Certificatons: CE, CE, UL, CCC

C trafo-gun C arm no 1_x000D_
1 x Operation manual_x000D_
1 x 474005 balancer bar streight_x000D_
1 x 474013 balancer gibbet_x000D_
1 x 478060 balancer roller (cpl.)_x000D_
1 x 498085 spring balancer_x000D_
1 x 474017 isolation strap with snap-hock_x000D_
1 x 474250 set of allen key (4+5mm)_x000D_
1 x 497096 electrode caps A 32_x000D_
1 x 474028 c-arm rack_x000D_
1 x 474085 hook for harnish_x000D_
1 x 474041 hook for power supply cable_x000D_
1 x 474007 wheel set
