Wielander & Schill Dolly toe shape type K 511111

Wielander & Schill Toe Shaped Dolly Type K – Grid Pattern Dolly for Professional Panel Beating

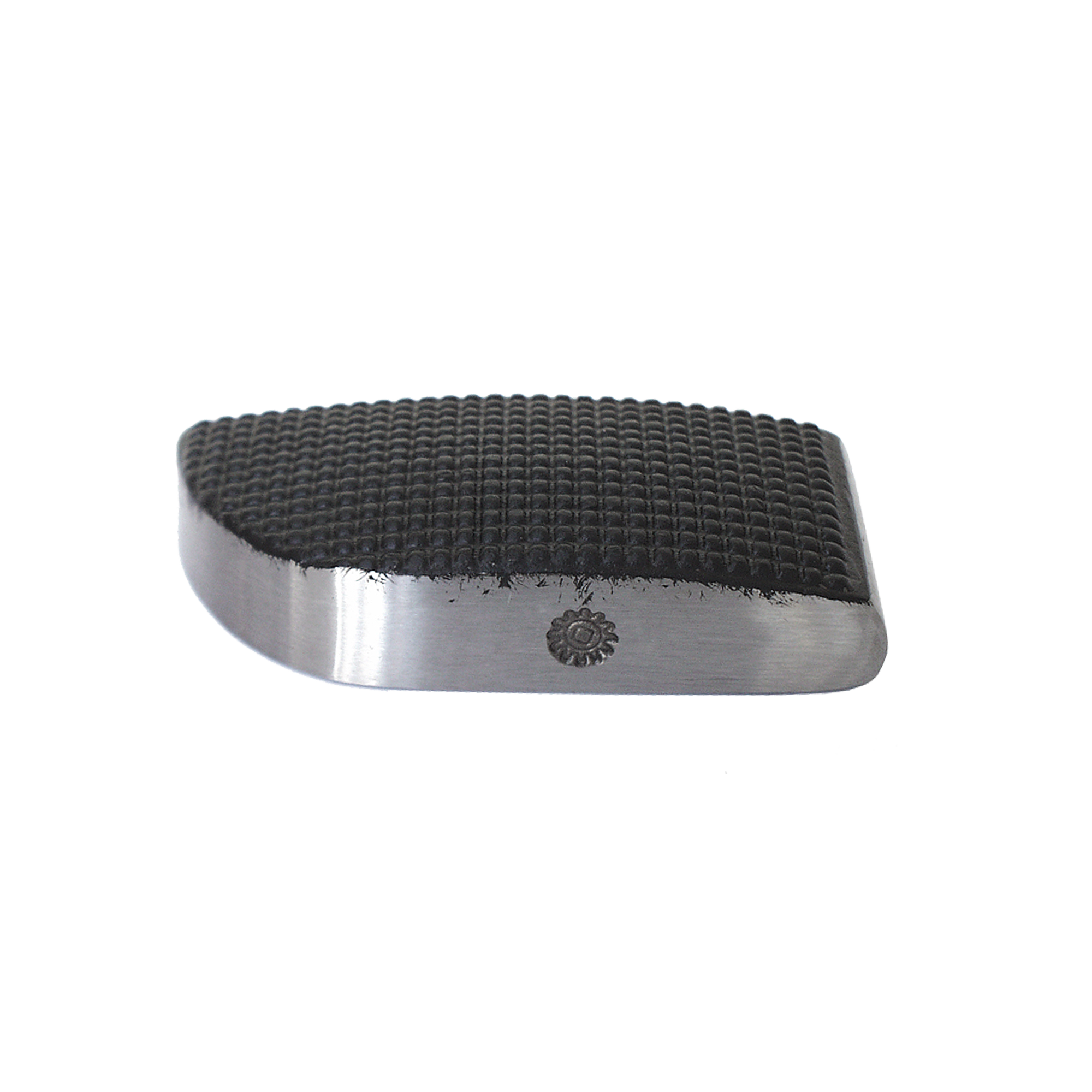

The Wielander & Schill toe shaped dolly type K (511111) is a professional-grade, solid steel hand dolly designed for precision panel beating and dent repair. Unlike smooth-faced dollies, this type K variant features a distinctive grid-pattern surface. As a result, the dolly grips the panel during hammer strikes and prevents slipping — even on oily or curved surfaces.

Why Choose a Toe Shaped Dolly Type K?

Standard smooth dollies can slide out of position during heavy hammer-and-dolly work, especially on crowned or greasy panels. However, the grid-pattern surface on this type K dolly solves that problem by creating controlled friction between the dolly face and the panel. Consequently, the dolly stays exactly where you place it, so every hammer strike lands with full backing support.

Furthermore, the toe-shaped profile provides access to tight contours, recessed areas, and restricted spaces that wider dollies cannot reach. In particular, the narrow leading edge slots behind flanges, along door edges, and inside wheel arch returns with ease. As a result, technicians gain precise support in areas that would otherwise require awkward workarounds.

Key Features

• Grid-pattern surface — grip the panel firmly and prevent slipping during hammer-and-dolly work
• Toe-shaped profile — reach tight contours, recessed areas, and restricted spaces that standard dollies miss
• Solid steel construction — absorb hammer energy efficiently and deliver clear feedback through the panel
• Generous dimensions — 122.5 x 57.5 x 26 mm provides a broad working face while maintaining the toe-shaped reach
• Balanced 1.19 kg weight — heavy enough to anchor firmly behind the panel, yet comfortable for extended use
• Precision-ground edges — clean transitions between surfaces for versatile positioning
• Professional quality — manufactured by Wielander & Schill, trusted across European bodyshops

Technical Specifications

Grid Pattern vs Smooth Face — When to Use Each

Both grid-pattern and smooth-faced dollies have their place in a professional bodyshop. The grid-pattern type K excels in roughing and initial shaping work, where grip and stability matter most. For example, use it when raising low spots, reshaping creased metal, or working on panels with residual oil or primer.

In contrast, smooth-faced dollies suit finishing work where panel surface quality is critical. Therefore, many technicians start with the type K for roughing, then switch to a smooth dolly for final planishing. As a result, the repair progresses faster and the finished surface requires less filler.

When to Use This Dolly

This toe shaped dolly type K works particularly well along door edges, around window apertures, and inside wheel arch flanges. In addition, the grid surface proves invaluable when working on vertical panels where gravity would cause a smooth dolly to slide downward. Moreover, the 1.19 kg weight provides enough mass to resist firm hammer blows without causing hand fatigue during longer repair sessions.

Build Your Dolly Set

No single dolly covers every repair scenario. Therefore, professional bodyshops benefit from holding several profiles. This toe shaped dolly type K pairs well with a Daimler dolly for general-purpose work and a diabolo dolly for crowned panels. In addition, consider the smooth-faced WS shape toe dolly (511119) for finishing work on similar access areas. Call our team for advice on the ideal combination for your workshop.

Exclusive UK Supply & Expert Support

Bodyshop Solutions is the exclusive UK and Ireland distributor for Wielander & Schill. Therefore, every tool comes backed by expert technical advice, product training, and comprehensive aftercare. In addition, our Daventry-based team can help you select the right dolly set for your specific repair needs. Simply call us on 01327 300700 for guidance.
