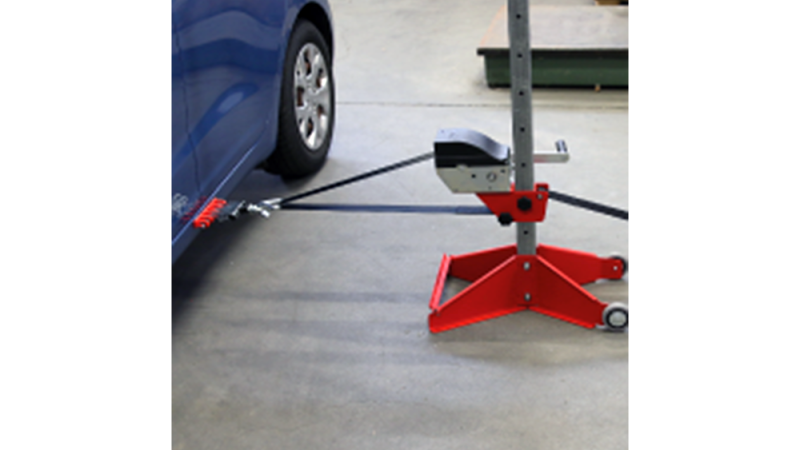

The Wielander & Schill Trac Tower 550 is a portable pulling tower designed for bodyshop professionals who need quick, controlled pulls without a fixed bench setup. It anchors firmly to any workshop floor using a pneumatic vacuum base plate, so there is no need for floor bolts or permanent fixings.
As a result, you can position the tower exactly where you need it and start pulling within minutes. Furthermore, at just 22 kg, it is light enough for one person to move between vehicles with ease.
The X-Plate base uses compressed air at 6 bar to create a powerful vacuum seal against the workshop floor. In addition, a soft foam rubber seal ensures the plate grips securely even on surfaces with small bumps or imperfections. Consequently, the tower stays firmly anchored during pulling operations without any risk of movement.

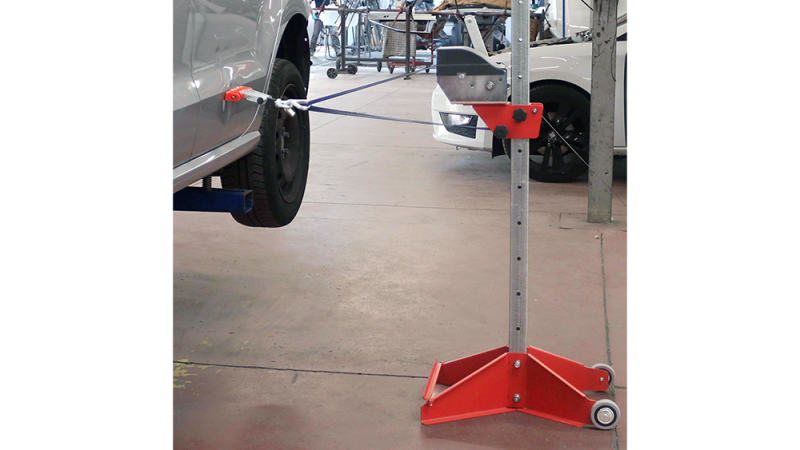

The Trac Tower 550 offers 15 height positions up to a maximum of 1.65 metres. Therefore, it handles both high-level pulls on roof pillars, A-posts, and B-posts as well as low-level pulls on door sills and lower panels. This versatility means you only need one tower to cover a wide range of repair scenarios.
Pulling force is applied through a belt-driven manual ratchet hoist. This gives the technician precise control over the pull, allowing gradual adjustments rather than sudden force. As a result, you can achieve accurate panel alignment while minimising the risk of over-pulling or secondary damage.
| Pulling Force | 5.5 kN |
| Height Positions | 15 (up to 1.65 m) |
| Base Plate Dimensions (L × W × H) | 570 × 520 × 290 mm |
| Operating Pressure | 6 bar |
| Weight | 22 kg |
| Materials | Aluminium, steel, foam rubber, plastic |
| SKU | X500001 |
| Brand | Wielander & Schill |
This tower is ideal for workshops that need a flexible pulling solution without the cost or footprint of a full straightening bench. For example, it works well for:
However, for heavy structural chassis repairs requiring higher pulling forces, consider a dedicated straightening bench system instead.
Bodyshop Solutions Ltd is the exclusive UK and Ireland distributor for Wielander & Schill. As a result, we provide full product support, training, and aftercare servicing on all W&S equipment.
Need advice on the right pulling solution for your workshop? If so, call us on 01327 300700 or contact us online for expert guidance.
Download the full Trac Tower 550 brochure (PDF) for complete specifications.
£1,476.99
1 in stock
The mobile Trac Tower 550 is held securely on workshop floors by a pneumatic vacuum base plate and is characterised by outstanding traction. Thanks to its mobility and low weight, the towing tower can be positioned quickly and easily next to the vehicle.
Thanks to the soft foam rubber seal, the vacuum plate ensures that it is firmly anchored to the floor even on small bumps.
The towing height can be adjusted in 15 positions up to a height of 1.65 metres. This allows the Trac Tower to be used for both high applications such as roof pillars and low applications such as door sills.
The pulling force can be controlled precisely and efficiently via a belt-driven manual hoist.
Scope of delivery
1 x Trac Tower
1 x Ratchet with pulling belt
1 x 500020 Vacuum plate | vertical tension
1 x 500011 Pulling claw for Trac Tower
Content: 1 stück, 1 piece
Force: 5,5 kN
Length × width × height: 570 x 520 x 290 mm
Material: Alu, Foam rubber, Plastic, Rubber, Steel, kunststoff
Operating pressure: 6 bar
Weight: 22,000 kg
Content: 1 stück, 1 piece
Force: 5,5 kN
Length × width × height: 570 x 520 x 290 mm
Material: Alu, Foam rubber, Plastic, Rubber, Steel, kunststoff
Operating pressure: 6 bar
Weight: 22,000 kg
