Item Number:

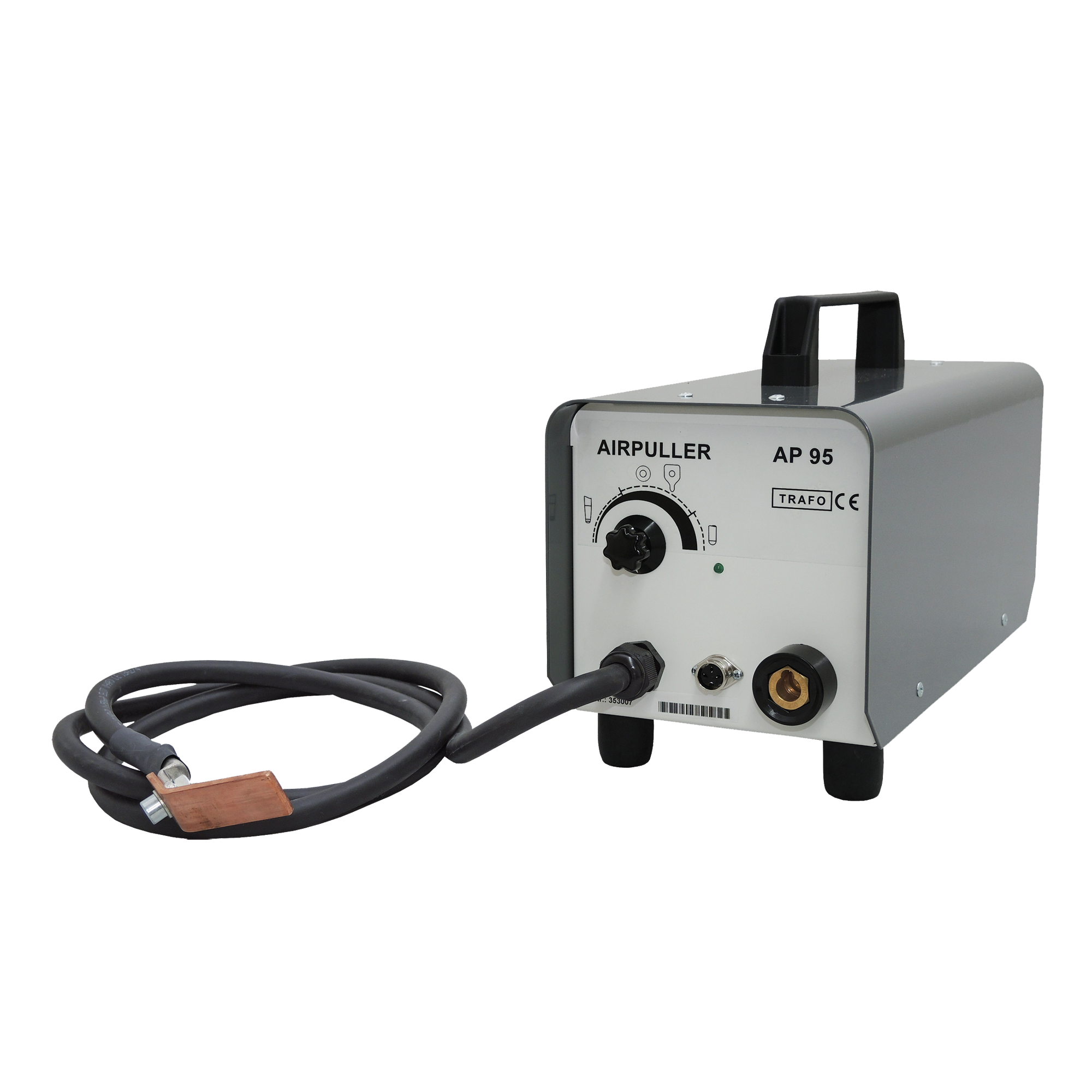

The transformer multiphase serves as the power source for the Airpuller AP95 dent repair system.
It is flexibly adjustable to the local power supply: Reconnectable Single-phase 220 – 240 V, Three-phase 400 V.
Note: The transformer is factory-set for the 400 V three-phase power grid.
| Frequency: | 50/60 Hz |
|---|---|
| Fuse: | 16 A (slow) |
| Length × width × height: | 210 x 180 x 390 mm |
| Mains voltage: | 230 V |
| Open circuit voltage: | 7 V |
| Operating temperature: | -10 bis 40 °C |
| Protection class: | IP 21 |
| Weight: | 16 kg |
£769.99
1 in stock (can be backordered)
Packing unit: 1 pc.
Fuse: 16 A time-lag
Open-circuit voltage: 7 V
LengthXWidthXHeight: 210x180x390 mm
Gross weight: 16,900 kg, 16.90
Specifics: Sealing time 0,02-0,32 sec.
Net weight: 16,000 kg, 16.90
Leistung max. (5% ED): 6 kVA
Welding current max.: 1,1 kA (1100A)
Certificatons: CE
Working temperature: Up to 40°C
Protecton category: IP21
Material: Steel sheet powder-coated
Frequency: 50/60 Hz
Welding current: AC
Supply voltage: 230V/400V (+/- 10%)
1x earth cable 4m
1x earth piece
