Item Number:

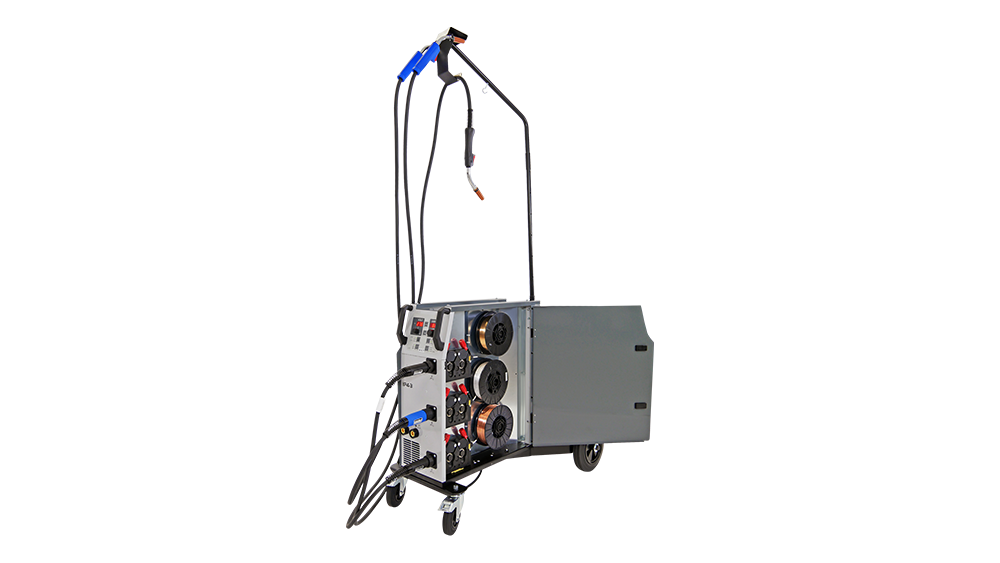

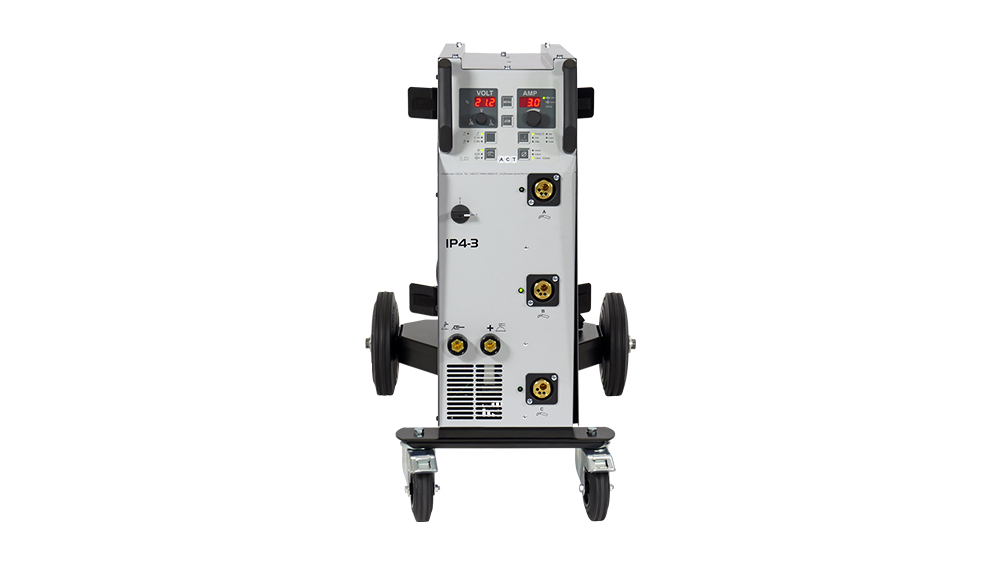

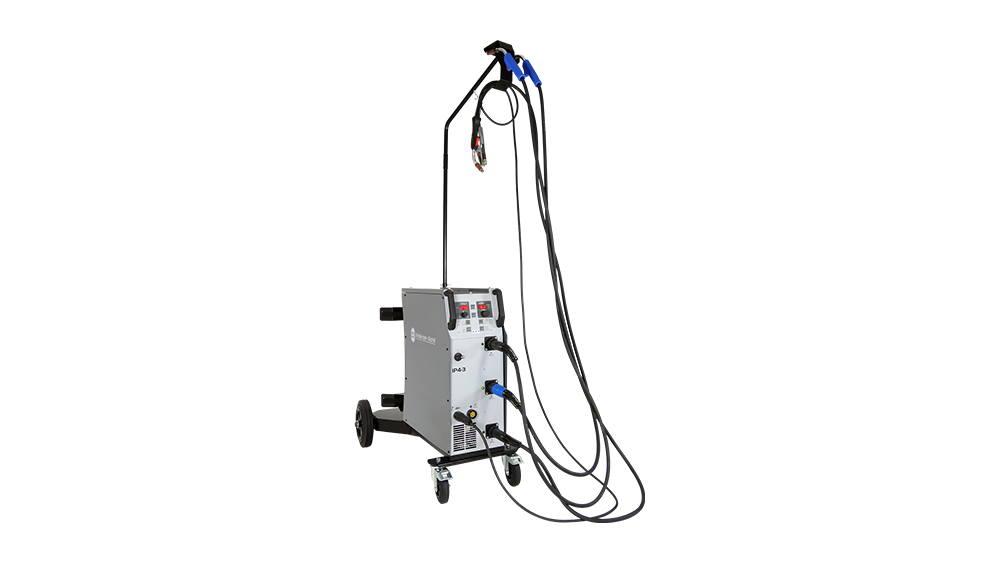

The InvertaPuls IP 4-3 is the ideal welding machine for steel welding and MIG brazing, perfectly tailored to the needs of bodywork professionals. Equipped with connections for up to three torches and automatic torch recognition, it enables easy handling and maximum flexibility. Thanks to the automatic “hold function” of the welding parameters and the robust wire feed unit with 4-roller drive, the InvertaPuls IP 4-3 guarantees maximum efficiency and precision in every application.
Features
• Automatic torch recognition
• Higher welding speed
• Lower heat input
• Very good gap bridging
• Less material distortion
• Automatic “hold function” of the welding parameters
• Welding programmes for: MIG soldering (CuSi3, AlBz8, CuAl8) | steel/stainless steel | aluminium | TIG | flux-cored wire | electrode welding • Lower heat input
• Saving of individual welding programs
• Integrated interface for software updates
Equipped with:
1 x 337219 Wire feed rollers | steel | 0.6 mm & 0.8mm | PU: 2 pcs.
1 x 337220 Wire feed rollers | steel | 0.8 mm & 1.0 mm | PU: 2 pcs.
1 x 337221 Wire feed rollers | aluminium | 1.0 mm & 1.2 mm | PU: 2 pcs.
1 x 308110 Torch 3G | Steel welding | 3.0 m
1 x 308111 Torch 3G | ALU welding | 3.0 m
1 x 308116 Torch 3G | MIG soldering (CuSi3) | 3.0 m
1 x 304053 Ground cable with clamp | 5 m | 35 mm² | SK 35
2 x 311042 Pressure reducer ProControl | 200 bar (only DE and AT)
1 x 311044 Double branch valve 1/4″ for manometer (only DE and AT)
1 x 307060 Contact tips M6 x 28 mm | 10-piece set
1 x User manual
Current setting range: | 10 – 240 A |
---|---|
Effectiveness: | 86 % |
Fuse: | 16 A (slow) |
Length × width × height: | 1030 x 640 x 880 mm |
Mains connection (Cu): | 4 × 4 mm² |
Mains voltage: | 3 ~ 400 V |
Mark of conformity: | CE |
Open circuit voltage: | 96 V |
Operating temperature: | -10 bis 40 °C |
Power factor: | 0,75 |
Protection class: | IP 23 |
Sound pressure level: | 68 dB(A) |
Voltage setting range: | 10 – 50 V |
Weight: | 64 kg |
Wire speed range: | 0,5 – 22 m/min |
£5,495.00
1 in stock (can be backordered)
Product information “Welding Machine InvertaPuls IP4-3 / 3x400V”
Welding programs for:
• MIG brazing 0,8-1,0 mm
• Aluminium
• Steel / stainless steel 0,6-1,2 mm
• TIG (WIG)
• Pulse and double pulse welding 2-cycle & 4-cycle mode
including special mode thin metal sheet – ACT for steel welding
also as 3x 200V device available – item N° 341299
Packing unit: 1 pc.
Certificatons: CE
Protecton category: IP23
Efficiency: 87%
Fuse: 16 A time-lag
LängexBreitexHöhe: 1030x640x880 mm
Draktvorschubrollen Ø: 37 mm
Net weight: 53.00, 64,00
Supply voltage: 3x400V (+/-15%)
Power factor: 0,75
Drahtgeschwindigkeit: 0,5-22 m/min
Open-circuit voltage: 96V
Continuous output: @200Amp/28V
Power supply (Cu): 4×4 mm²
Voltage range: 10-50A ; 0,1V/step
1 x InvertaPuls IP4-3 ACT; 3 x 400 V; 240 A
1 x set wire rolls for steel 0,6 / 0,8 mm
1 x set wire rolls for steel 0,8 / 1,0 mm
1 x set wire rolls for ALU 1,0 / 1,2 mm
1 x steel-torch 3G, 3m
1 x MIG-torch 3G, 3m
1 x ALU-torch 3G, 3 m
1 x earth cable
1 x double branch valve
1 x starter set current nozzles
1 x operation manual
