Aluspotter 6100 (823049)

Item Number:

823049

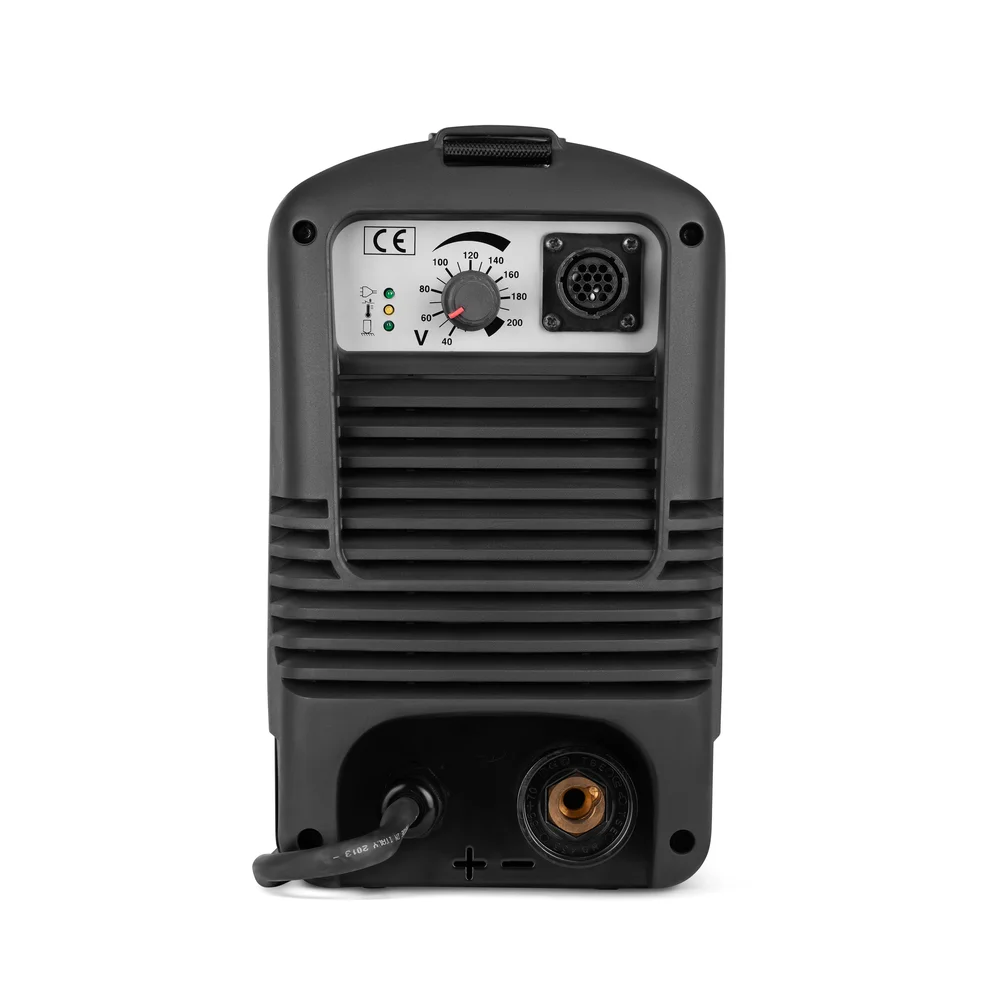

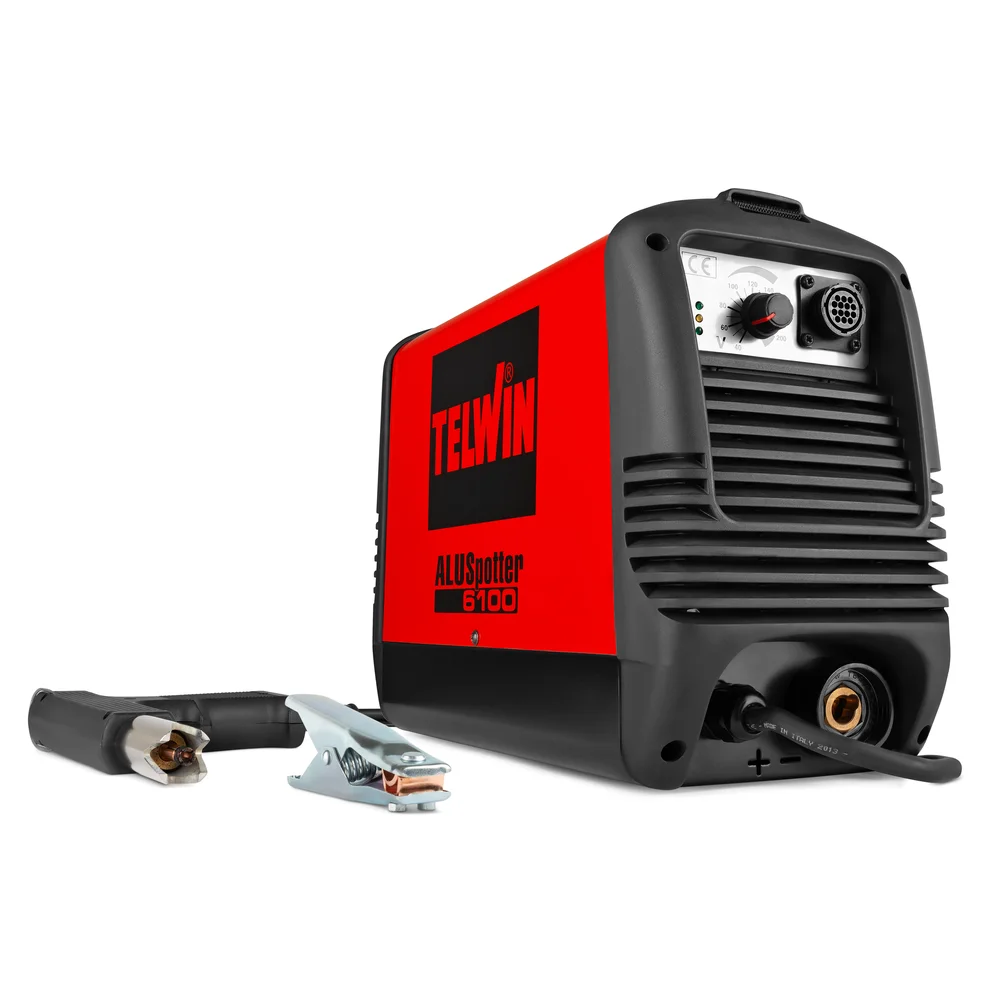

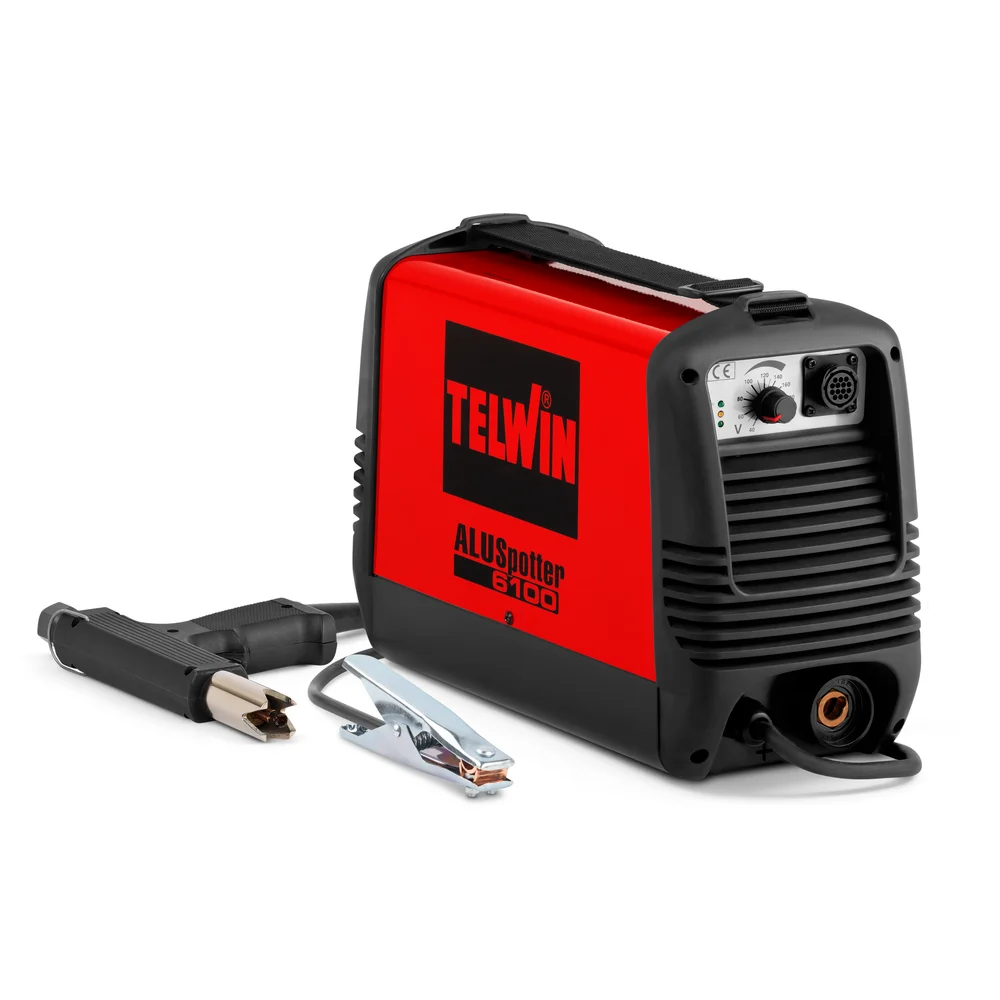

Aluspotter 6100 Aluminium Dent Puller with compact gun

  • Generator for capacitor discharge welding of pins with a 3 to 8 mm diameter and other accessories, with tip strike. With gun, earth cable with M4 pins.
  • It enables welding of pins on non-treated or non-oxidised surfaces in steel, stainless steel, galvanised steel, brass and, in particular, aluminium.
  • The short welding process reduces to a minimum the thermal alterations on the part.
  • Automatic 115-230V voltage change.

£1,769.25

01327 300700

Call Us for Expert Advice

Price available on request

Lease purchase options available​

Power source for capacitive discharge welding of capacitors of pins with a diameter of 3 to 8 mm and other accessories, with ignition of the tips. Suitable for applications in installation, maintenance and heat engineering. Allows the welding of pins on surfaces not treated on the surface or not oxidized, of steel, stainless steel, galvanized steel, brass and especially aluminum. The short duration of the welding process does not cause any alteration of the opposite surface even if painted, plasticized or galvanized. Automatic voltage change 115-230V. Complete with gun, ground cable with clamp and accessories.

CODE
823049

SINGLE PHASE MAINS VOLTAGE
115 / 230 V

MAINS FREQUENCY
50 / 60 HZ

MAX NO LOAD VOLTAGE
12 V

MAX ABSORBED POWER
0,9 KW

POWER FACTOR
0,8

CAPACITY
66000 ΜF

SPOT ENERGY
1500 J MAX

SPOT TIME
1 - 3 MS

NUMBER SPOTTABLE STUDS
20 STUDS/MIN

SPOTTABLE STUD DIAMETER
3 - 8 MM

PROTECTION DEGREE
IP23

DIMENSIONS
43 X 17 X 29 CM

WEIGHT
15,5 KG

Packing Unit 1 pc

DIMENSIONS
43 X 17 X 29 CM

WEIGHT
15,5 KG
