XPac Starter Set for self piercing rivets (703510)

Item Number:

703510

The solution in riveting technology and car body repair.
The new compact XPac is a mechanically driven hydraulic actuator for generating high pressure forces up to 80 kN for:

• Self Piercing Rivets
• Flow Form Rivets
• Full Punch Rivets

Modularly expandable with XPress 800 Tool Boxes

01327 300700

Call Us for Expert Advice

Price available on request

Lease purchase options available​

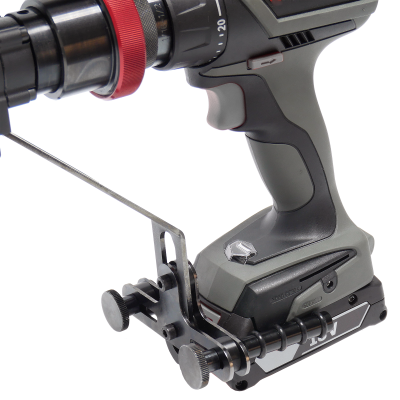

• Mounted Quickly and Easily onto a cordless drill – which acts as the actuator

• Powerful with up to 8 tonnes of Riveting Pressure

• Covers self-piercing rivets, flow form rivets and full punch rivets

• Excellent Low-Cost Introduction to Riveting

• Provides Extra Riveting Capacity at a Low Price – rather than purchasing an additional XPress 800 riveter

• Provides Back Up Cover – during periods of servicing/repair of your XPress 800 riveter

• Approved by Ford and Tesla

*Please Note: A Cordless Drill is required with a specification of a minimum torque of 12.5Nm and a speed of 1250 – 1500rpm (Drill not supplied with the XPac)

Packing unit: 1 set
Stroke: 25 mm
Traction / Press force: 25-80 Kn
Complete Volume: 60 cm³
Net weight: 3.41 kg
Length x Width x Height:240x62x130 mm

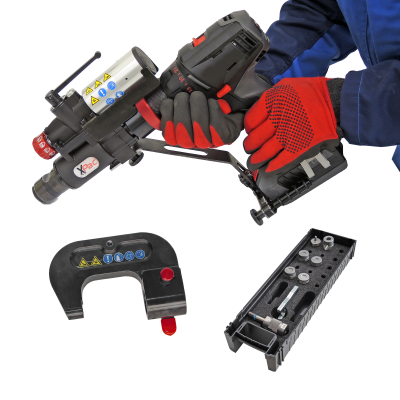

1x XPac incl. torque support
1x C-arm GC 80/40
1x Tool Box RS-03
1x Red Handle
1x Manual
