XSeries Riveter Tool Box RS-09 – Ford – version 2

XSeries Riveter Tool Box RS-09 – Ford – Version 2

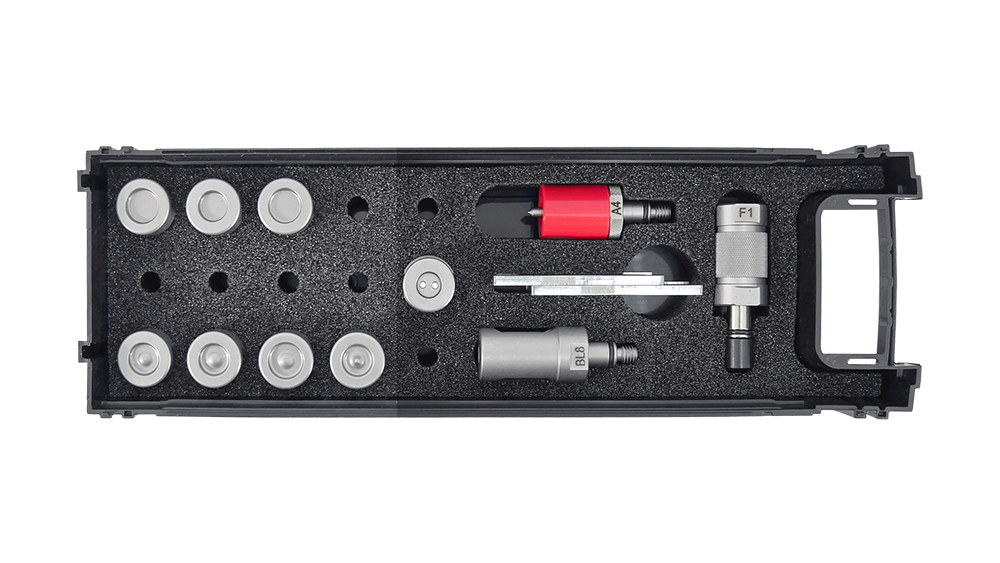

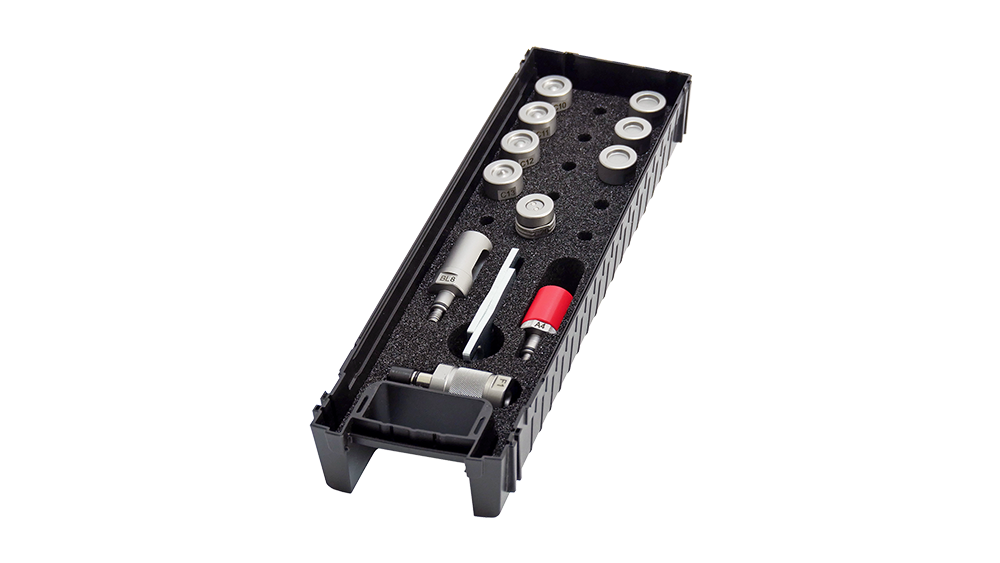

The XSeries Riveter Tool Box RS-09 Ford version 2 provides bodyshops with a complete set of dies and tooling. Specifically, it is designed for carrying out Ford-approved self piercing rivet (SPR) repairs. In addition, this tool box is built for use with the Wielander & Schill XPress 800 riveting system. As a result, you always have the correct dies on hand for Ford body repair applications.

Self piercing riveting is a key joining technique specified by Ford for body repairs. Furthermore, using the correct closing dies and setting dies is essential for joint quality. Therefore, this Ford-specific riveter die set takes the guesswork out of die selection. Essentially, everything you need is packaged into one organised, compact case.

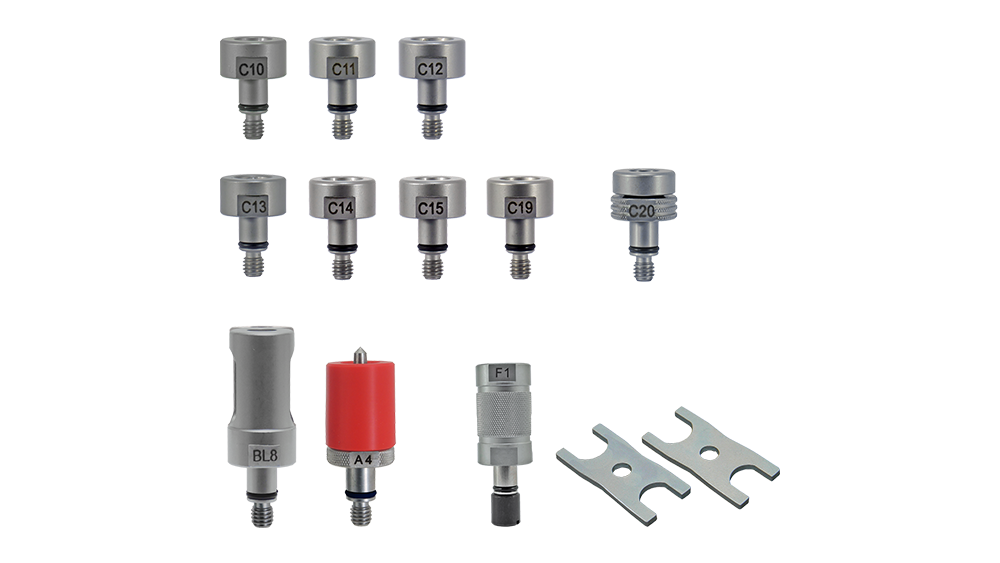

XSeries RS-09 Ford Scope of Delivery

• 1 x 700341 A4 – Extraction mandrel with polyurethane spring
• 1 x 703221 BL8 – Punching and extraction die, Ø 8 mm
• 1 x 700537 C10 – Closing die for self piercing rivets (SPR)
• 1 x 700538 C11 – Closing die for self piercing rivets (SPR)
• 1 x 700541 C12 – Closing die for self piercing rivets (SPR)
• 1 x 700542 C13 – Closing die for self piercing rivets (SPR)
• 1 x 700539 C14 – Closing die for self piercing rivets (SPR)
• 1 x 700540 C15 – Closing die for self piercing rivets (SPR)
• 1 x 703226 C19 – Closing die for self piercing rivets (SPR)
• 1 x 703224 C20 – Setting die for self piercing rivets (SPR)
• 1 x 700220 F1 – Extension with threaded sleeve M6, 32 mm
• 1 x 700299 Z4 – Assembly tool (PU: 2 pcs.)

RS-09 Ford Riveter Tool Box Specifications

• Content: 1 set
• Dimensions (L × W × H): 270 × 84 × 56 mm
• Material: Plastic and steel
• Weight: 0.500 kg

Why Choose the XSeries Riveter Tool Box RS-09?

Bodyshops carrying out Ford collision repairs need manufacturer-approved tooling. Moreover, using the correct dies ensures you meet Ford repair standards. This Wielander & Schill riveter tool box delivers a purpose-built selection of SPR closing dies. Additionally, it includes accessories that pair directly with the XPress 800 riveting tool. Consequently, every die is clearly labelled and easy to access during repairs.

Bodyshop Solutions is an authorised UK supplier of Wielander & Schill riveting equipment. Above all, we provide expert advice, product training and full aftercare support. For instance, our factory-trained engineers can assist with calibration and setup. Simply call us on 01327 300700 for pricing, availability or technical guidance.
